Baby Lock Meridian 2 Embroidery Machine
Baby Lock Meridian 2 Embroidery Machine
Couldn't load pickup availability
Not sure this is the right machine for you?
Take the Quiz →
Product Information
Baby Lock
Meridian 2

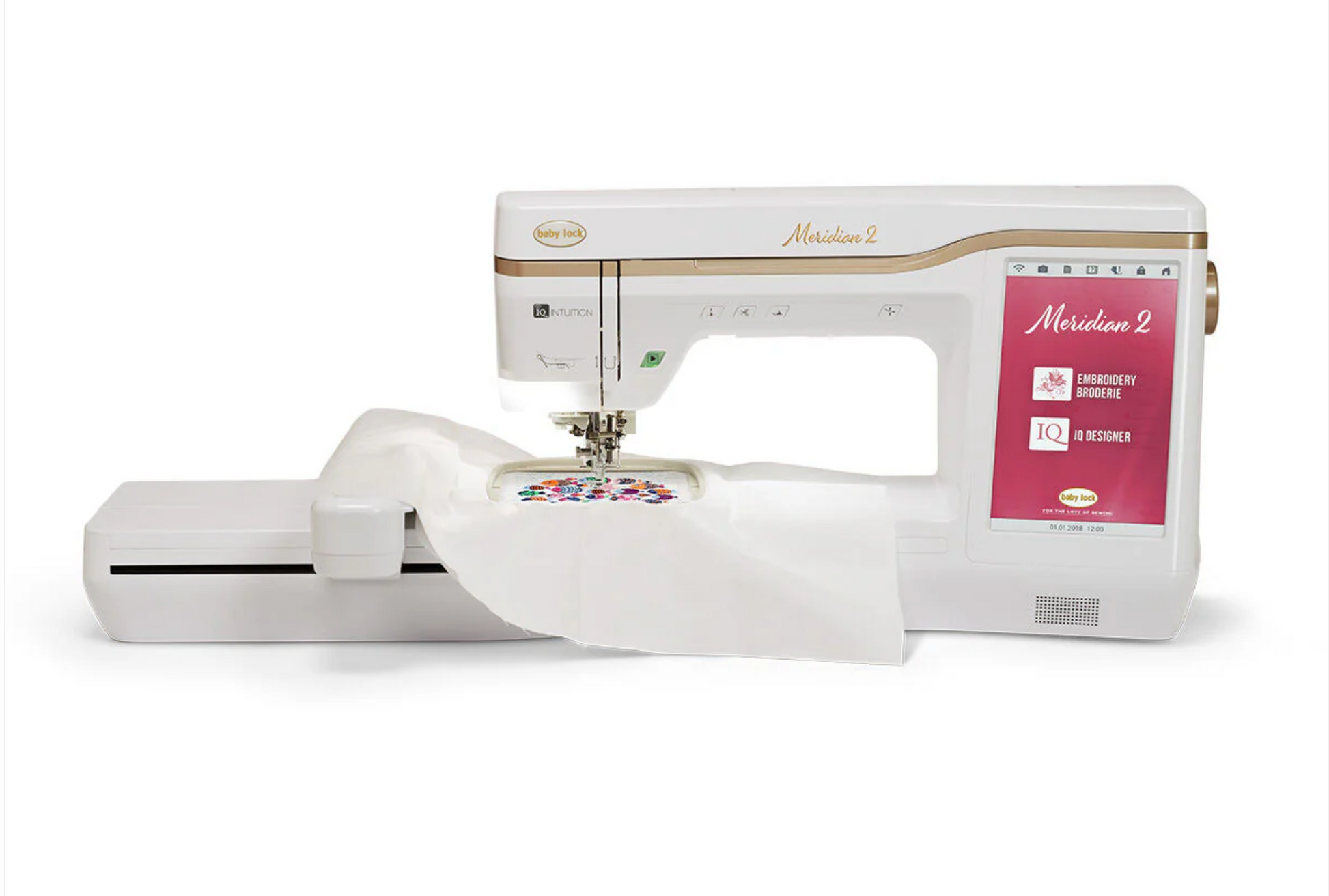

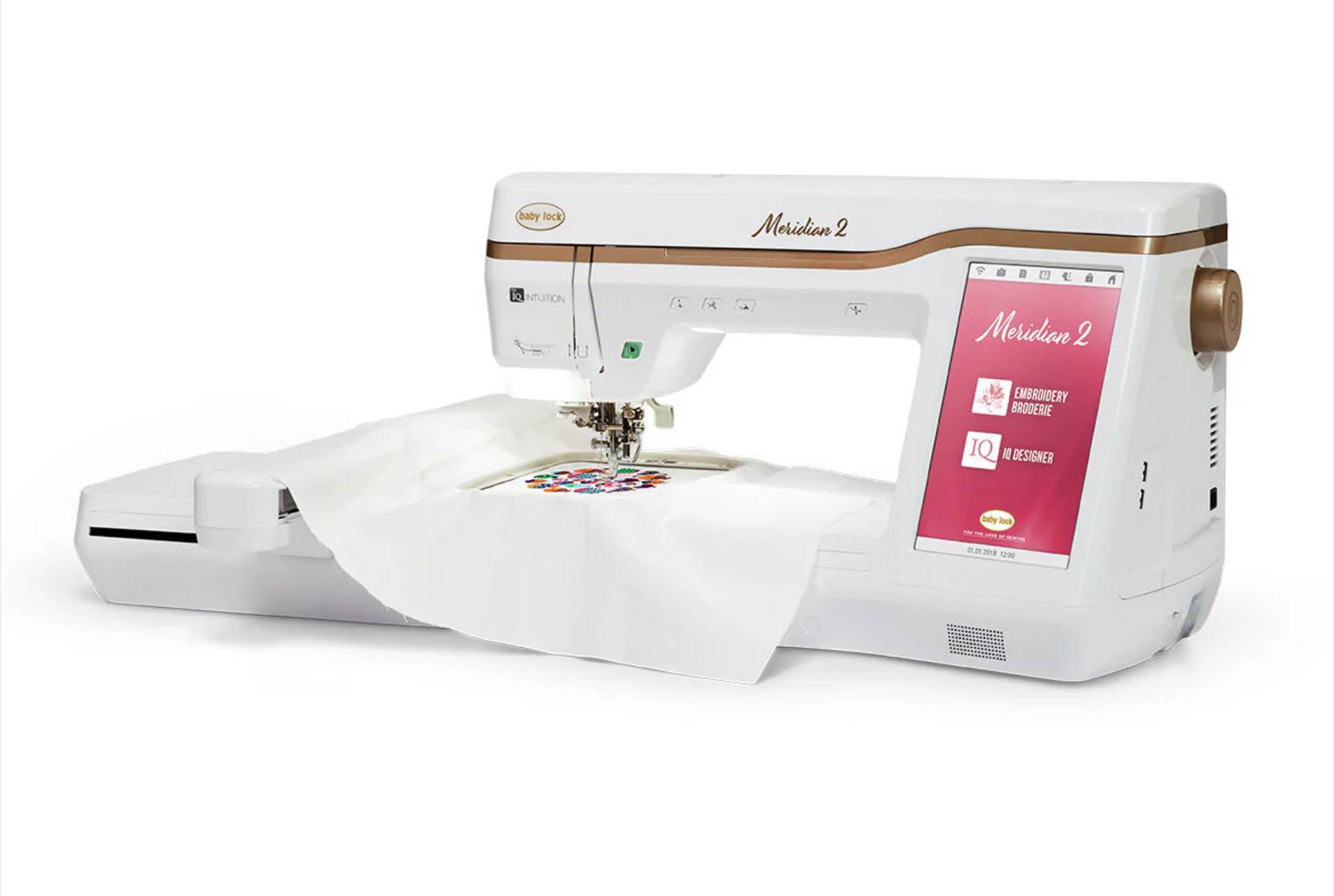

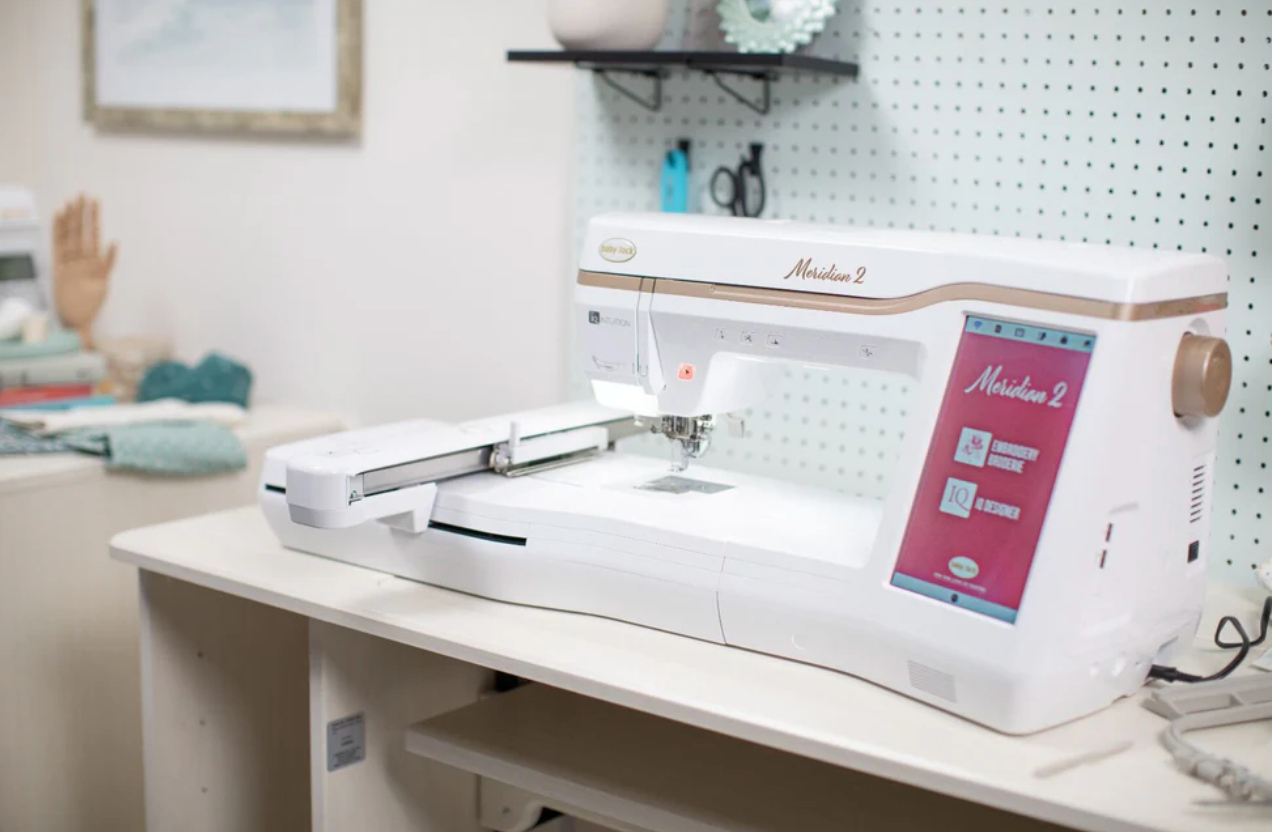

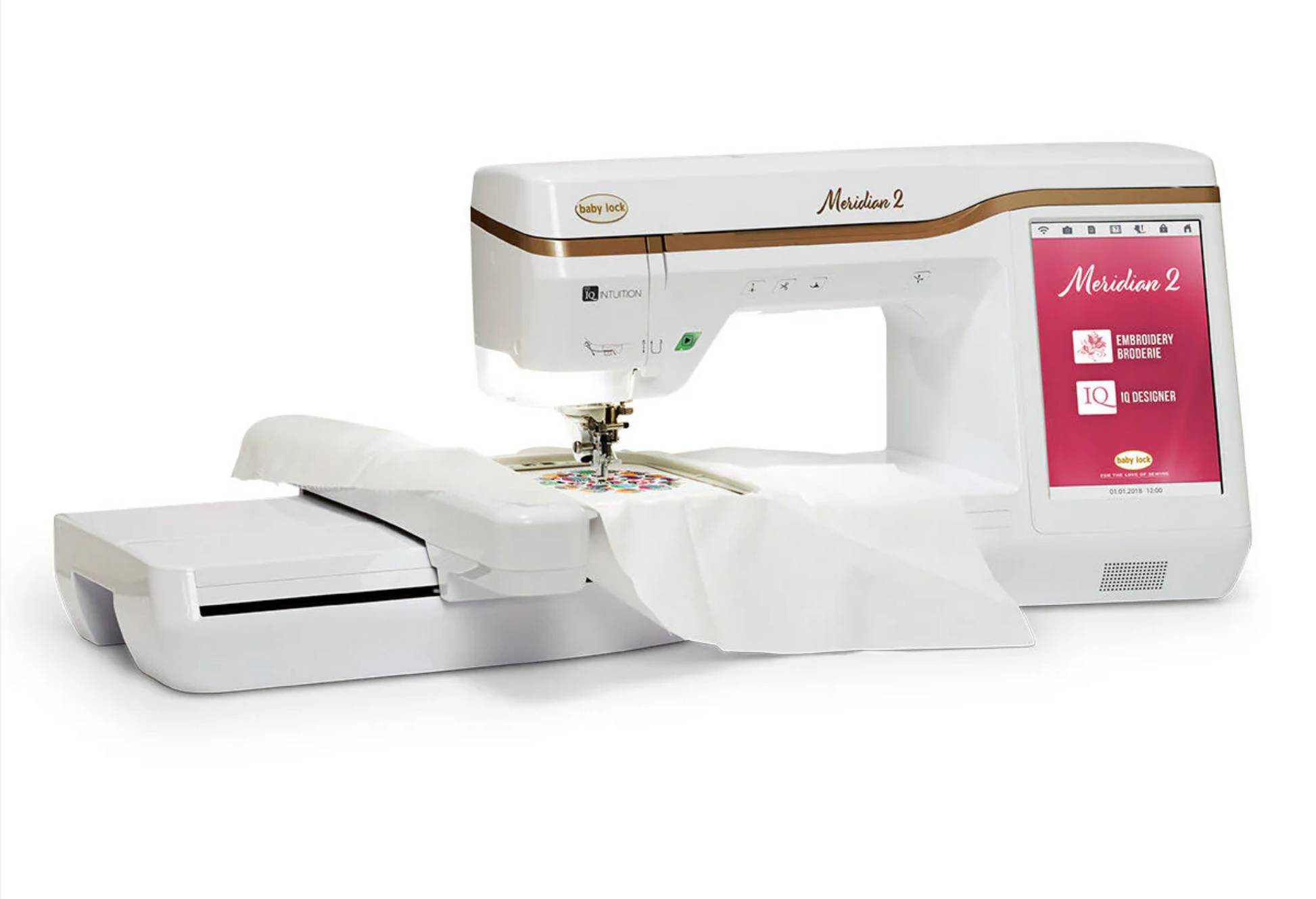

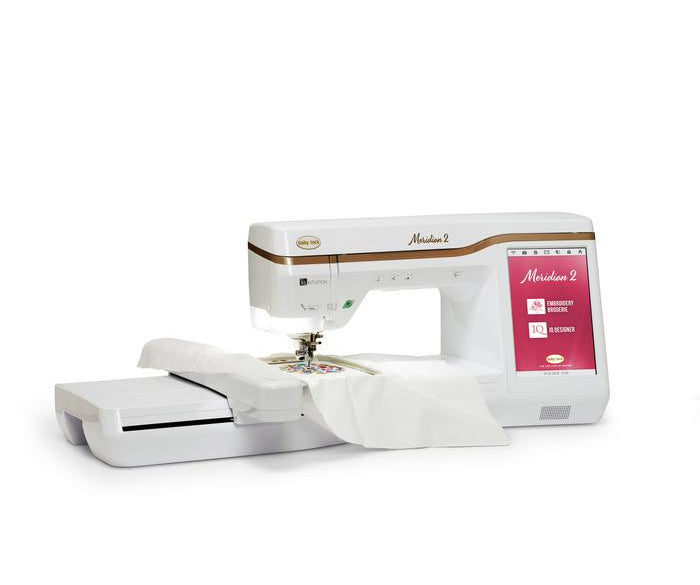

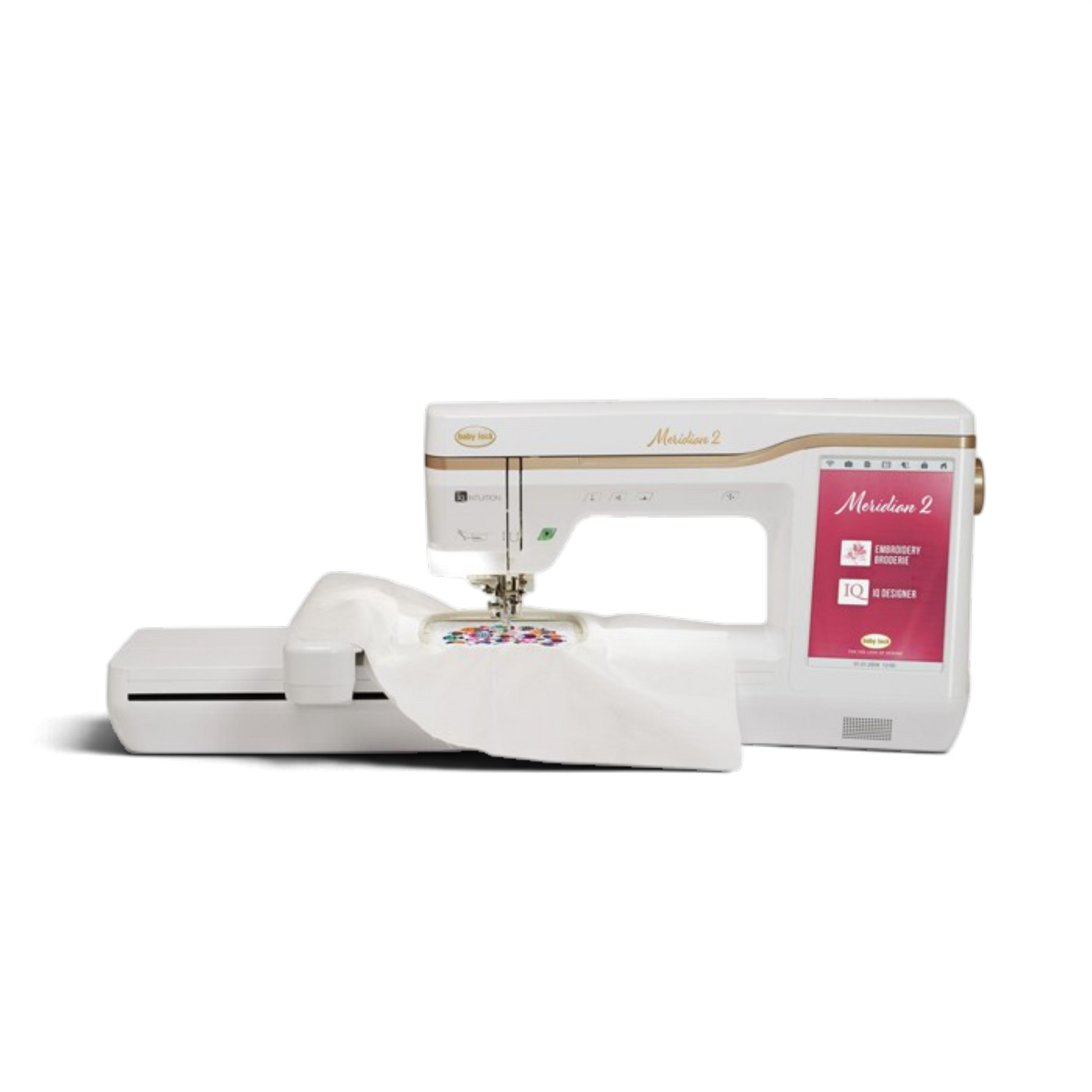

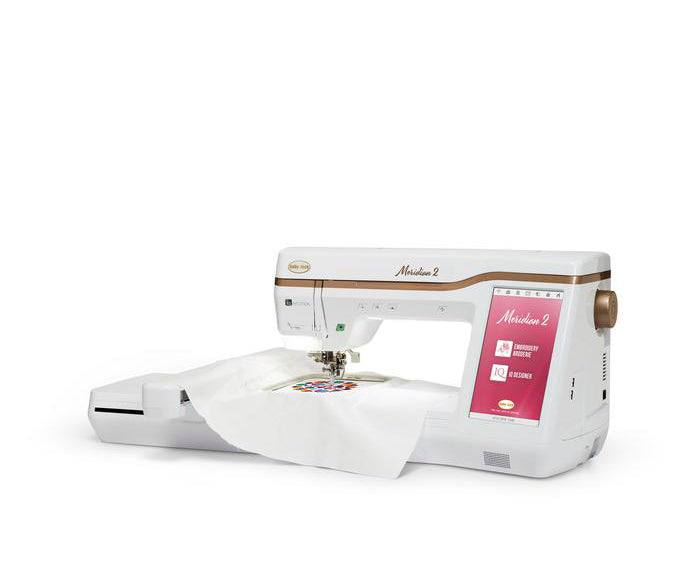

Illuminate your embroidery passion with the Baby Lock Meridian 2 (MRD2) — a dedicated, single-purpose embroidery machine that combines professional-grade embroidery features with intuitive smart technology. Featuring an impressive 9.5" x 14" embroidery field, IQ Intuition Positioning® for wireless smartphone design placement, 534 built-in designs, 2-point positioning, and a crisp Needle Beam laser pointer, the Meridian 2 makes stitching large, complex motifs effortless and exact.
Machine shown for demonstration and may not be compatible.
IQ Intuition Positioning® App: Snap a photo of your hooped fabric using your smart device and send it wirelessly to the machine. Place and align designs directly over exact garment areas. Built-in Wi-Fi syncs effortlessly with Palette 11, Design Database Transfer, and IQ Intuition Monitoring® App.
Creative Editing: Draw or import line art into IQ™ Designer to auto-generate stippling, echo quilting, or 30 decorative fill patterns around selected embroidery motifs. Features 2-point design positioning, Fill Couching Alphabet, and 2-color embroidery capability.

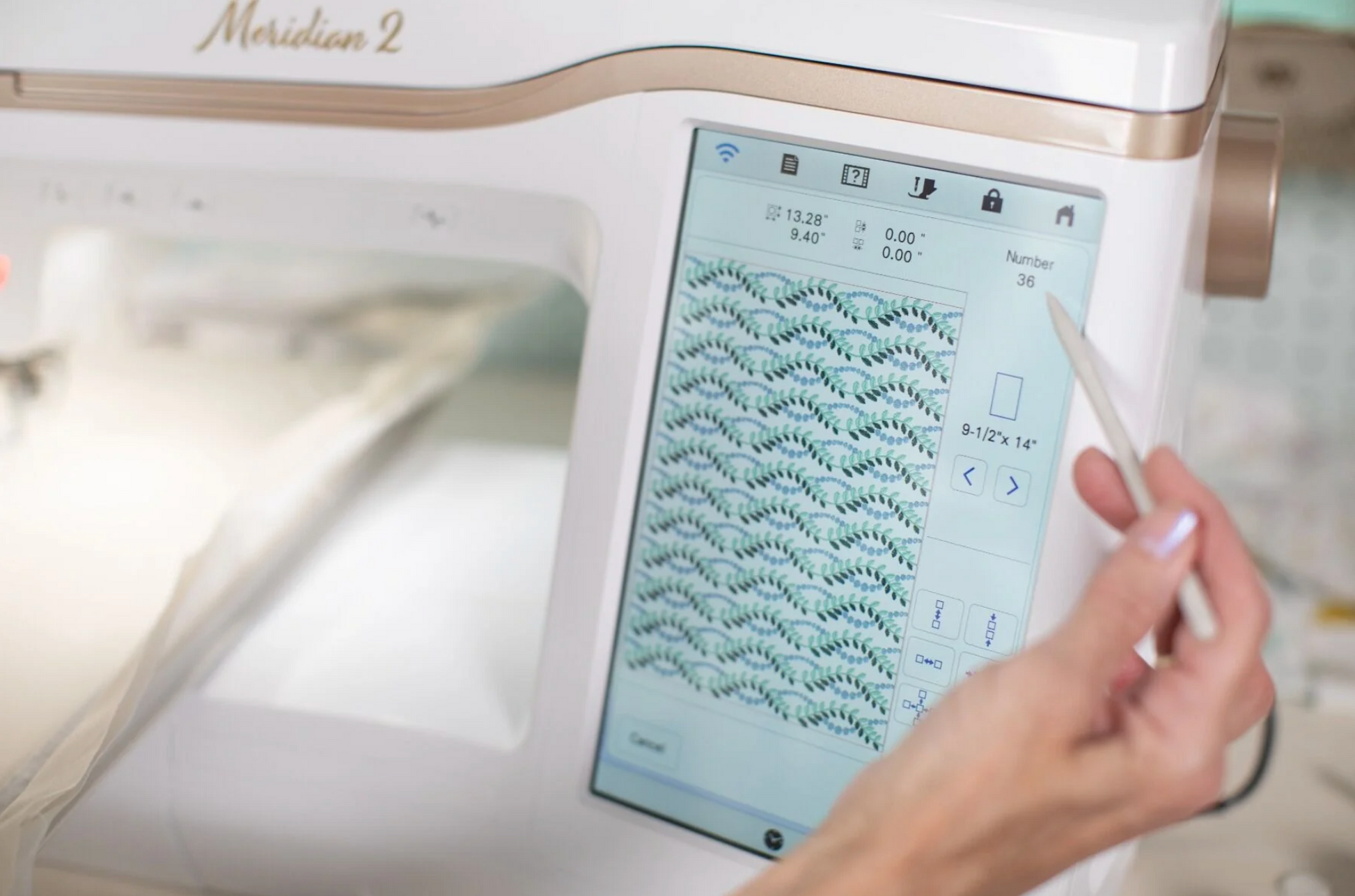

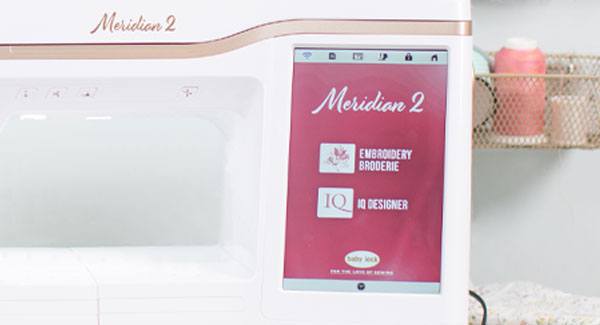

Precision Controls: Oversized 10.1" color LCD touch screen provides tablet-like editing, color visualizer, and large thumbnail previews. Integrated Needle Beam shows the exact needle drop point for 100% accurate placement and re-hooping alignment.
Effortless Embroidery Setup: Equipped with NeverMiss™ Automatic Threader, automatic thread cutter, top drop-in bobbin, and stadium LED lighting. Includes 2 hoops (9.5" x 14" and 5" x 7"), yarn couching foot, and embroidery accessories.
IQ Intuition Positioning®
Design Placement Made Simple
Getting a design centered on a finished garment usually takes trial and error. With IQ Intuition Positioning®, snap a photo of your hooped fabric on your phone, send it to the Meridian 2, and place the design exactly where you want it on-screen before the first stitch.

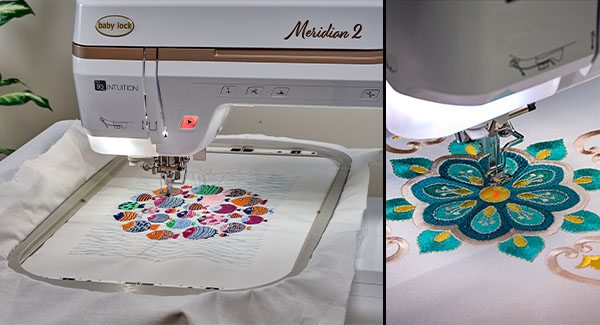

Extra-Large Embroidery Field
Room to Stitch Big, Bold Designs
A 9.5" x 14" embroidery field means the Meridian 2 can handle designs up to 700,000 stitches — oversized motifs, jacket backs, and multi-panel projects that smaller hoops simply can't accommodate in one pass.
Key Features
- Extra-large 9.5" x 14" (240mm x 360mm) embroidery hoop field supporting designs up to 700,000 stitches
- IQ Intuition Positioning® mobile app for snapping photos to wirelessly position embroidery on fabric
- 534 built-in embroidery designs (including 200 Baby Lock exclusives & yarn couching motifs)
- 30 built-in embroidery font styles for monograms, names, and lettering customization

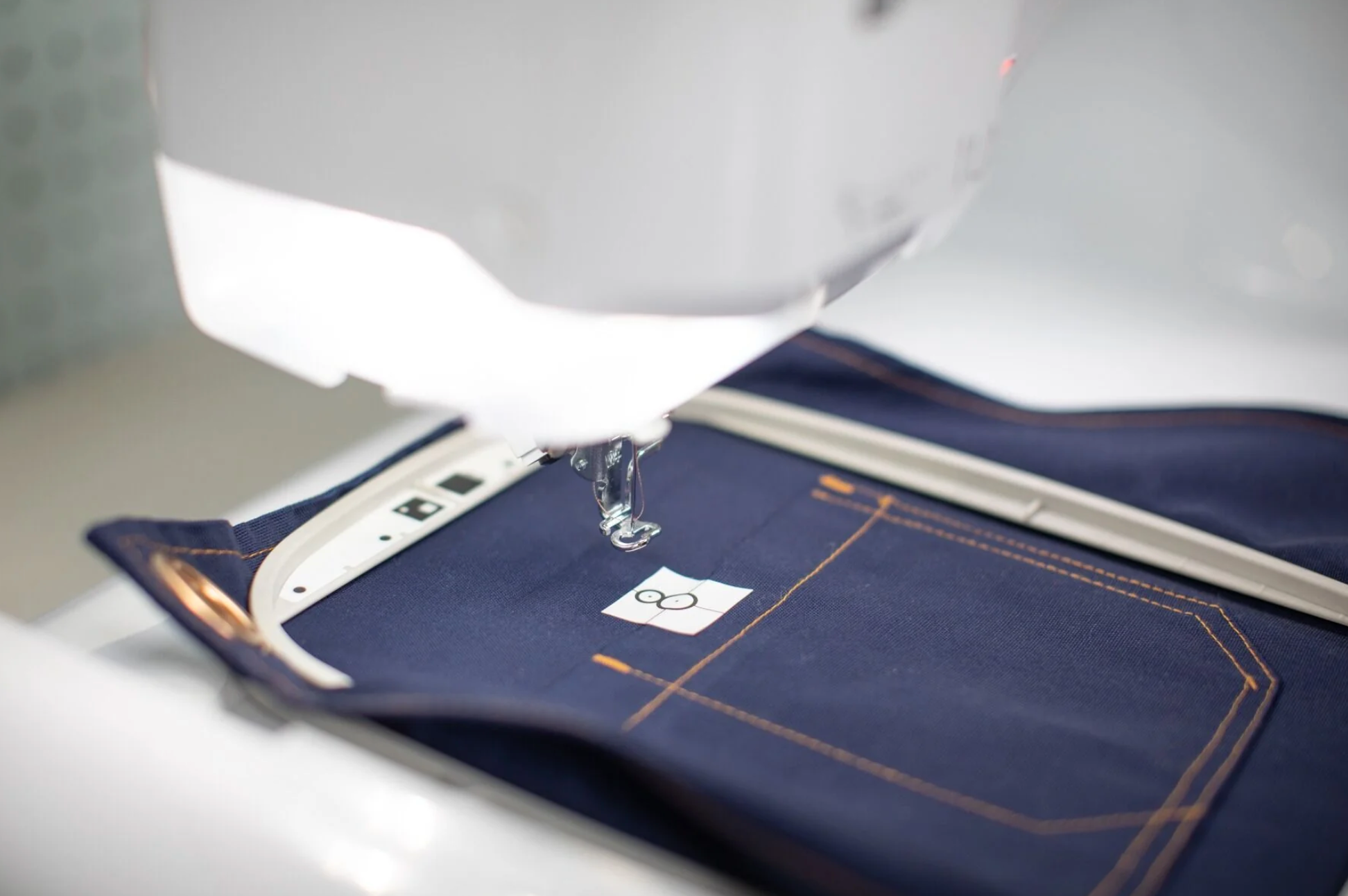

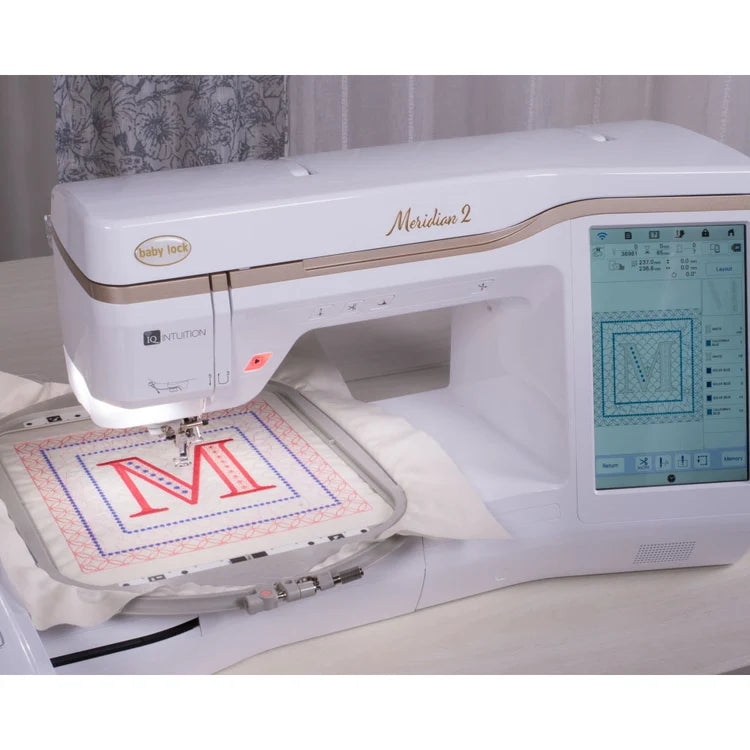

- Needle Beam technology projects a crisp red laser point showing exact needle drop alignment
- Large 10.1" tablet-sized LCD color touch screen with IQ™ Designer for custom artwork creation
- Wireless Wi-Fi connectivity syncing with Palette 11 and Design Database Transfer

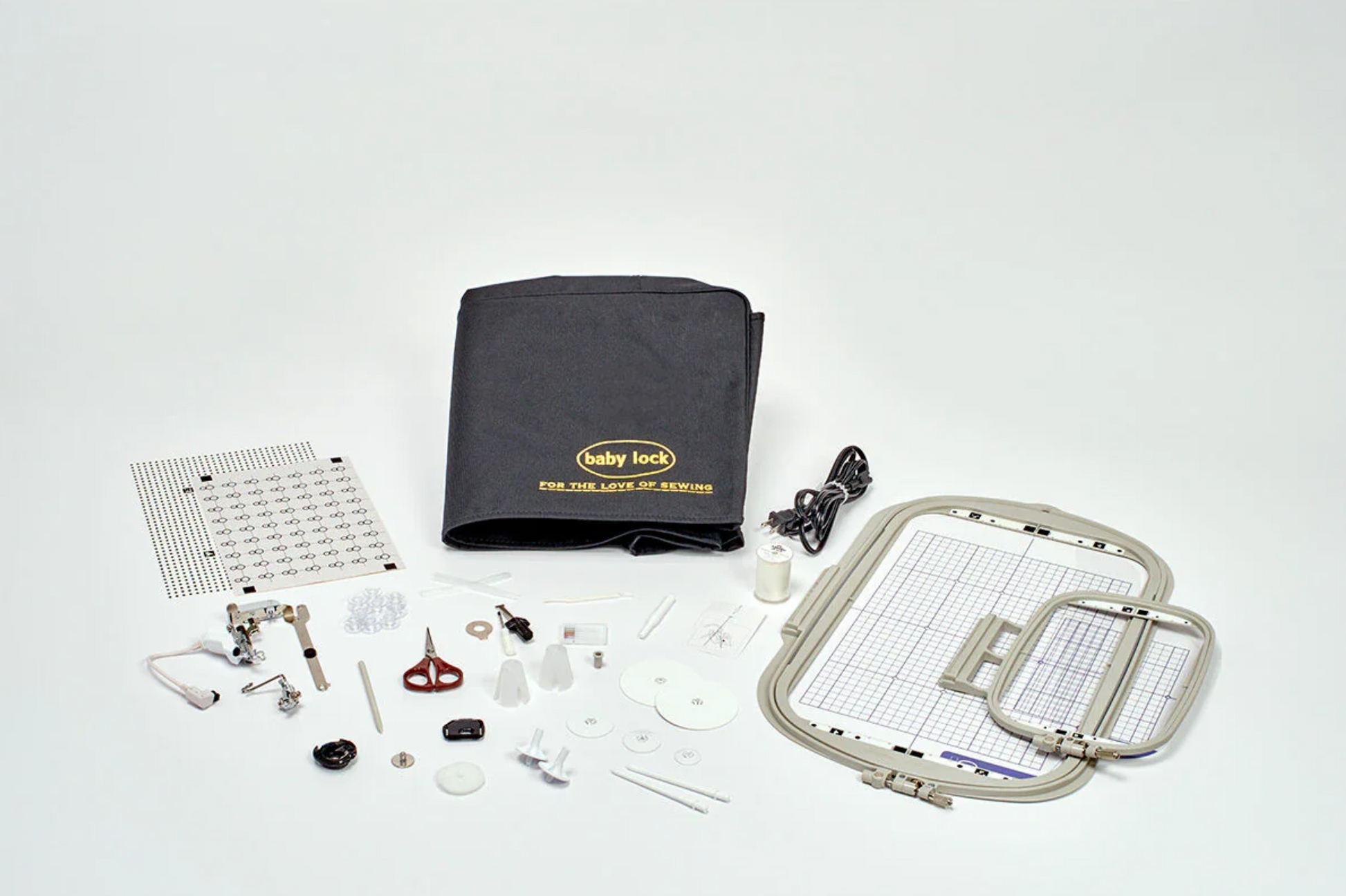

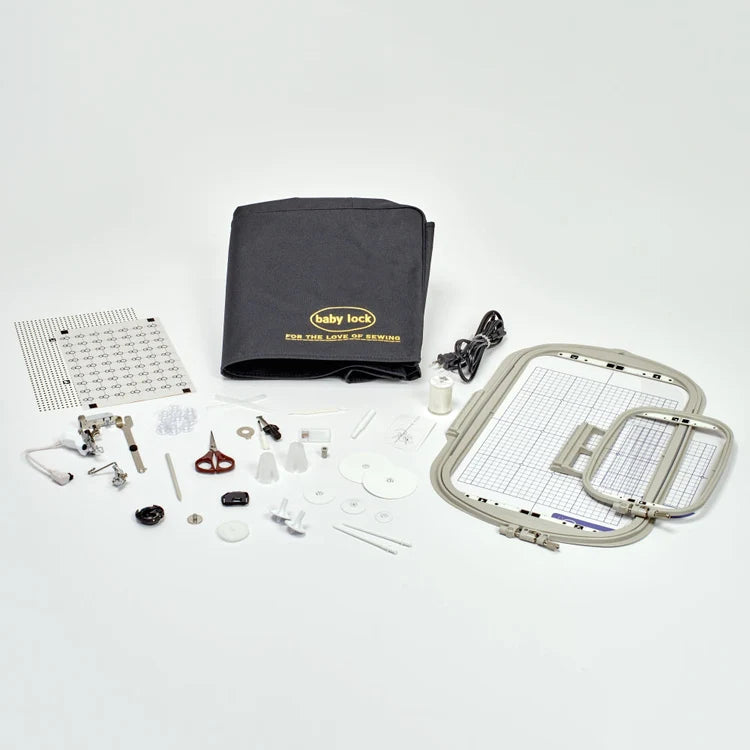

Included Accessories
- 2 embroidery hoops (9.5" x 14" and 5" x 7")
- Yarn couching foot
- NeverMiss™ Automatic Threader
Details
Specifications
| Maximum Embroidery Field | 9.5" x 14" (240mm x 360mm) |
| Built-in Embroidery Designs | 534 (including 200 Baby Lock exclusives & yarn couching motifs) |
| Embroidery Fonts | 30 |
| Maximum Embroidery Speed | 1,050 SPM |
| Machine Dimensions | 29-1/8"W x 17-1/4"D x 13-3/8"H |
| Machine Weight | Approx. 37.5 lbs |
| Screen Size | 10.1" diagonal color touch screen |
| USB Ports | 2 |
| Bobbin Type | Class 15 Quick-Set |
| Needle System | 15x1 |
| Limited Warranty | 25-Year |
| Parts Warranty | 10-Year |
| Circuit Board Warranty | 5-Year |
| Electrical Warranty | 5-Year |
| Labor Warranty | 1-Year |
Include Feet
- Embroidery Foot “W+” with LED Pointer
- Embroidery Couching Foot “Y” with Yarn Guide
