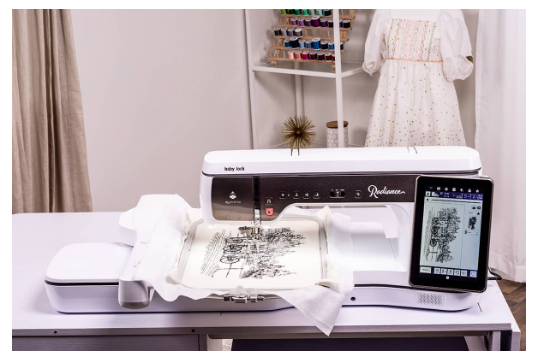

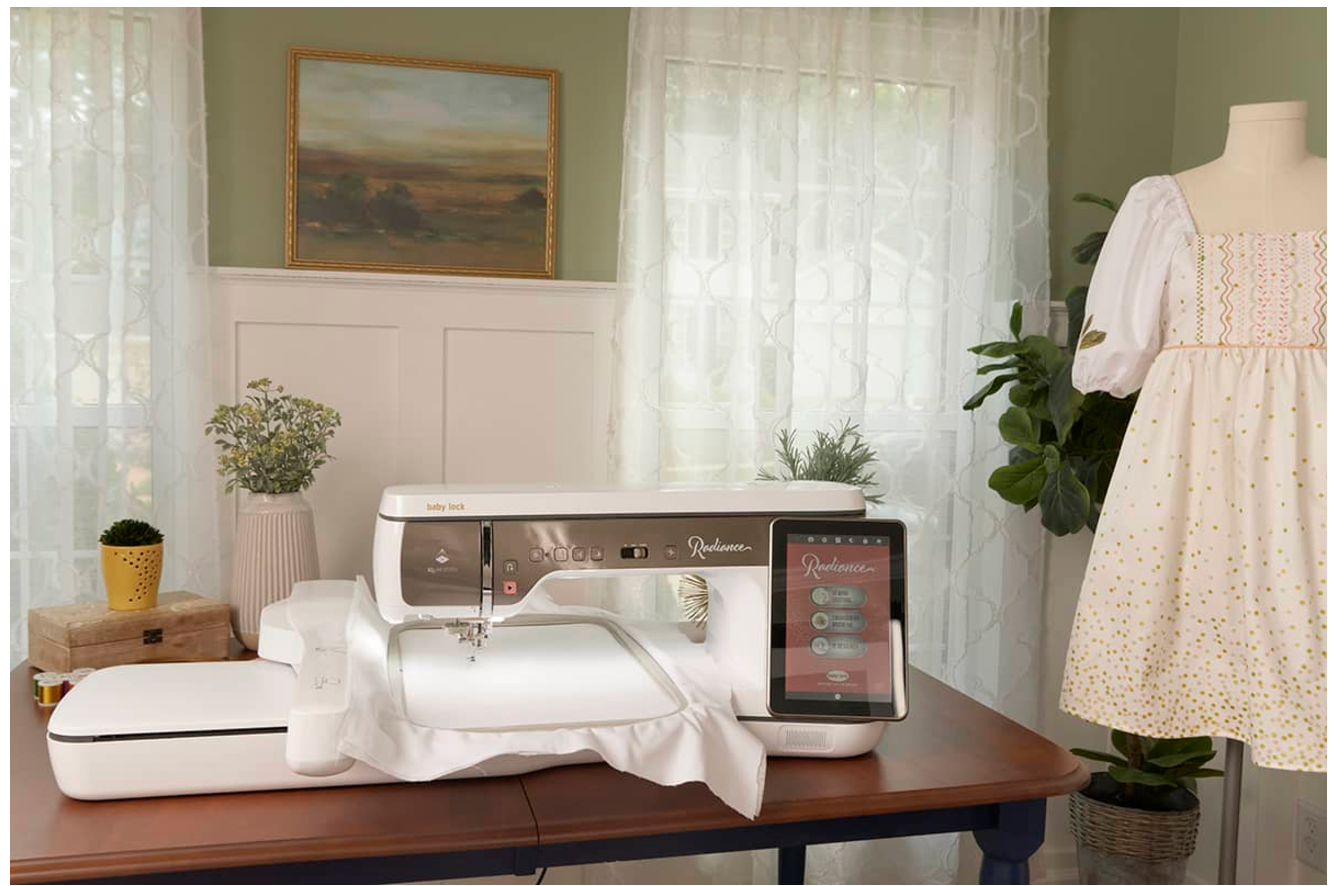

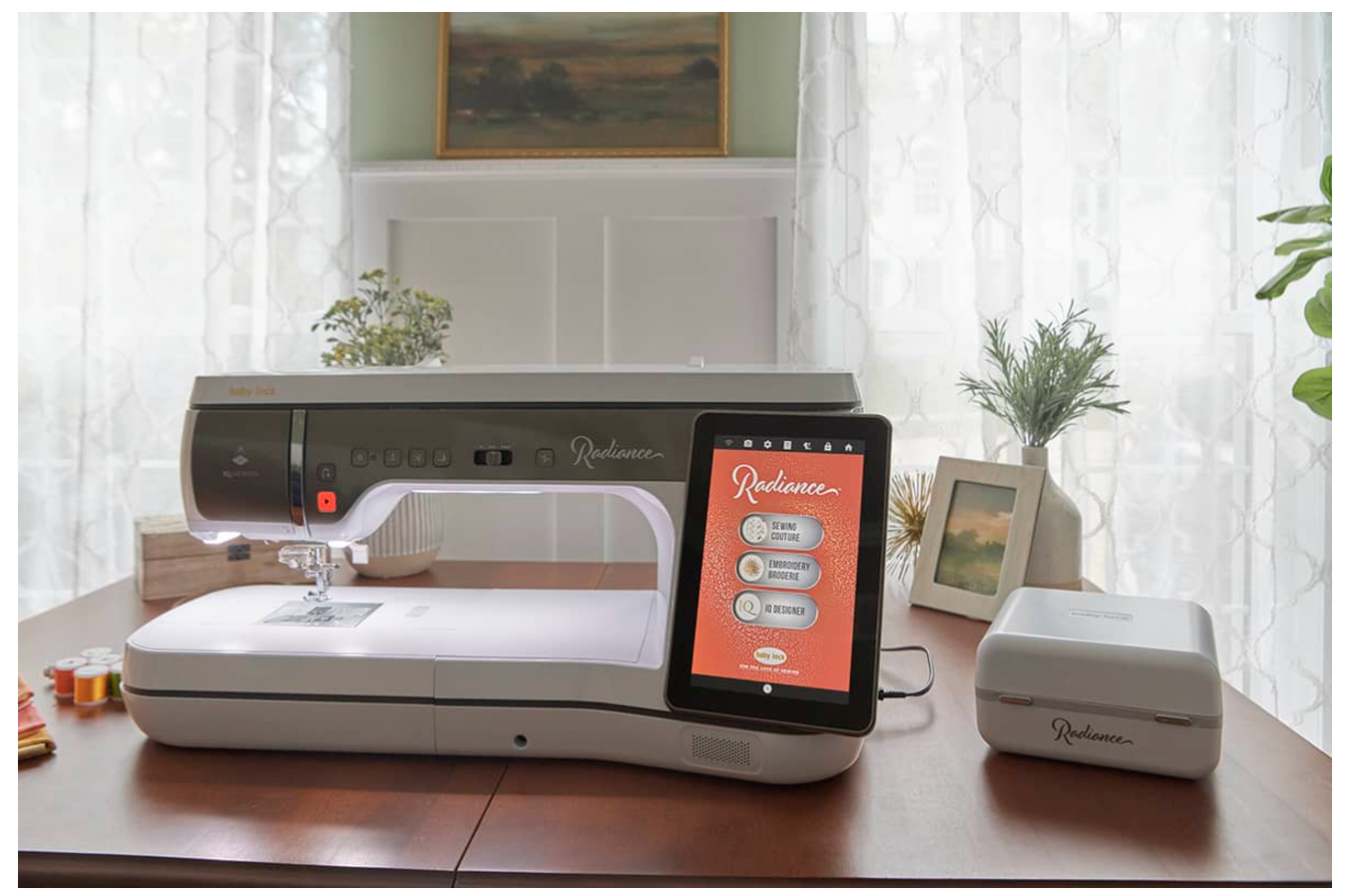

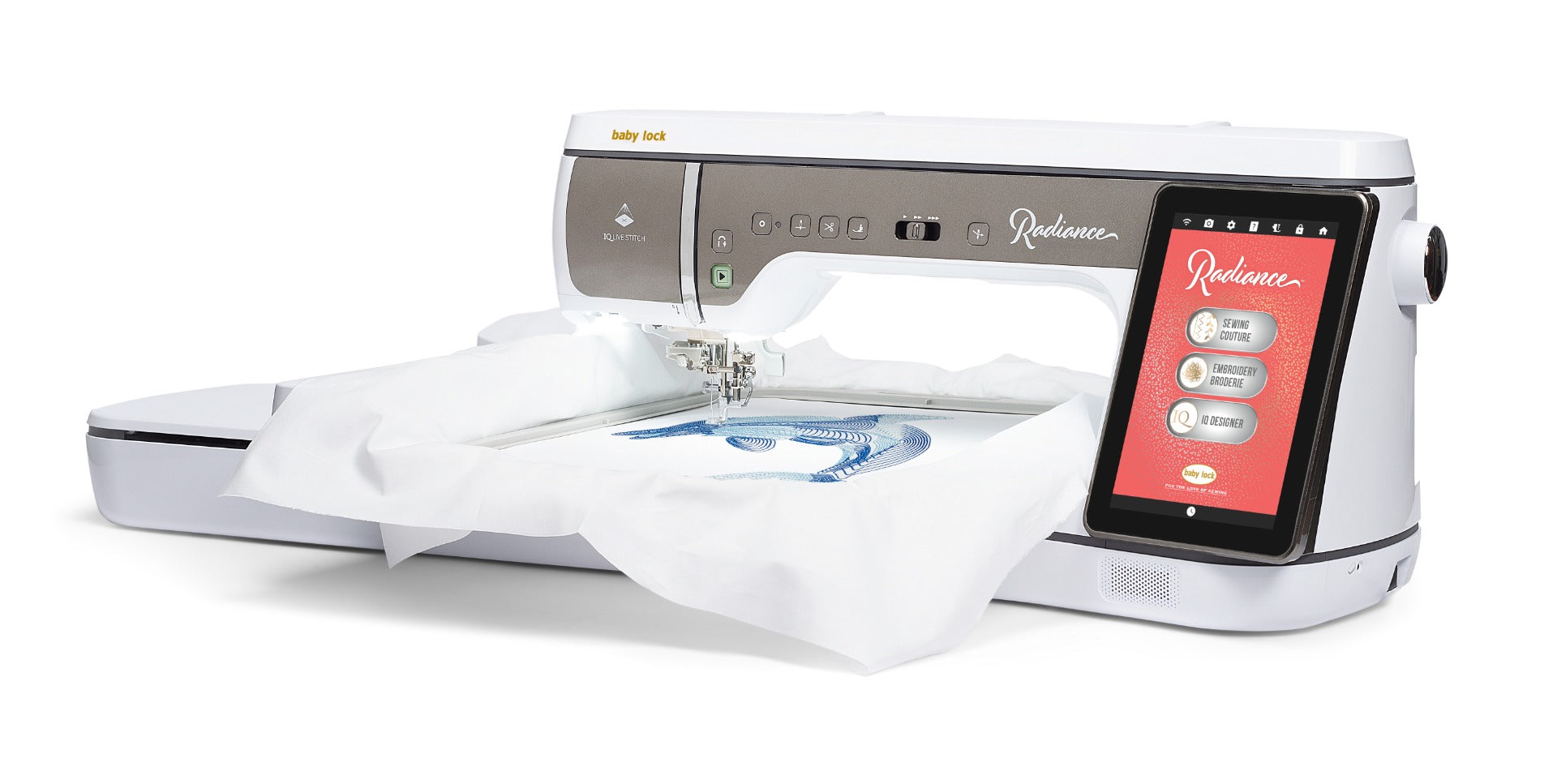

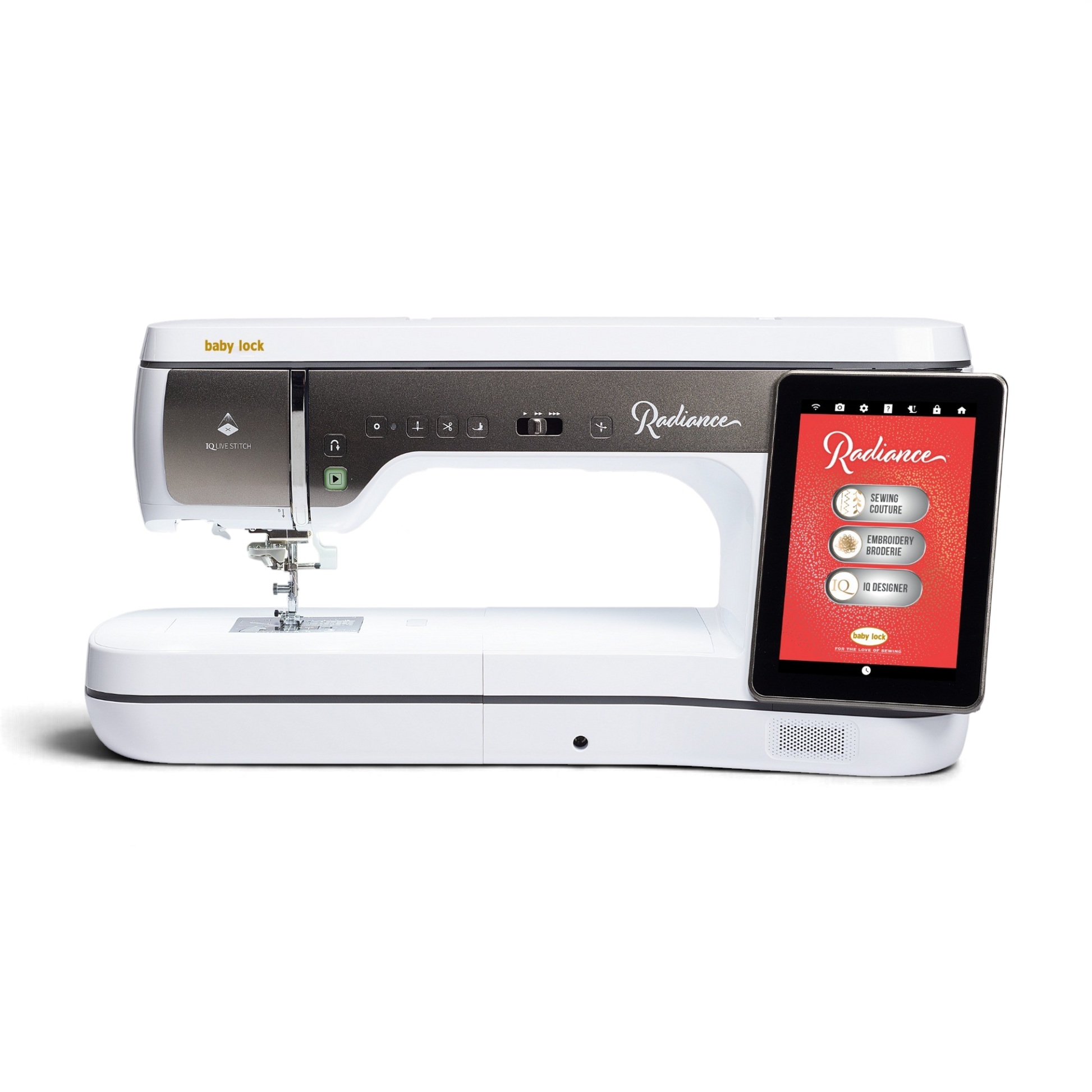

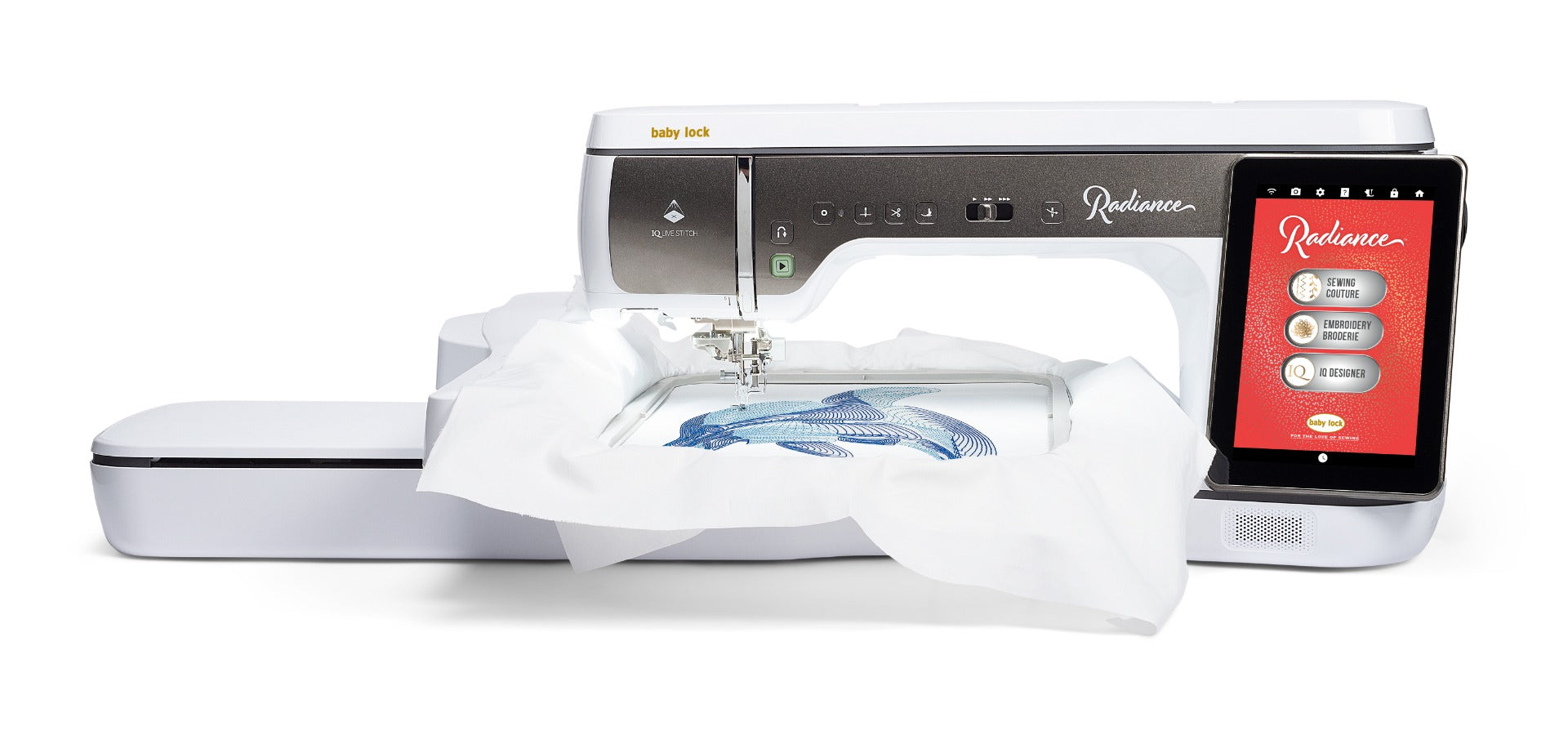

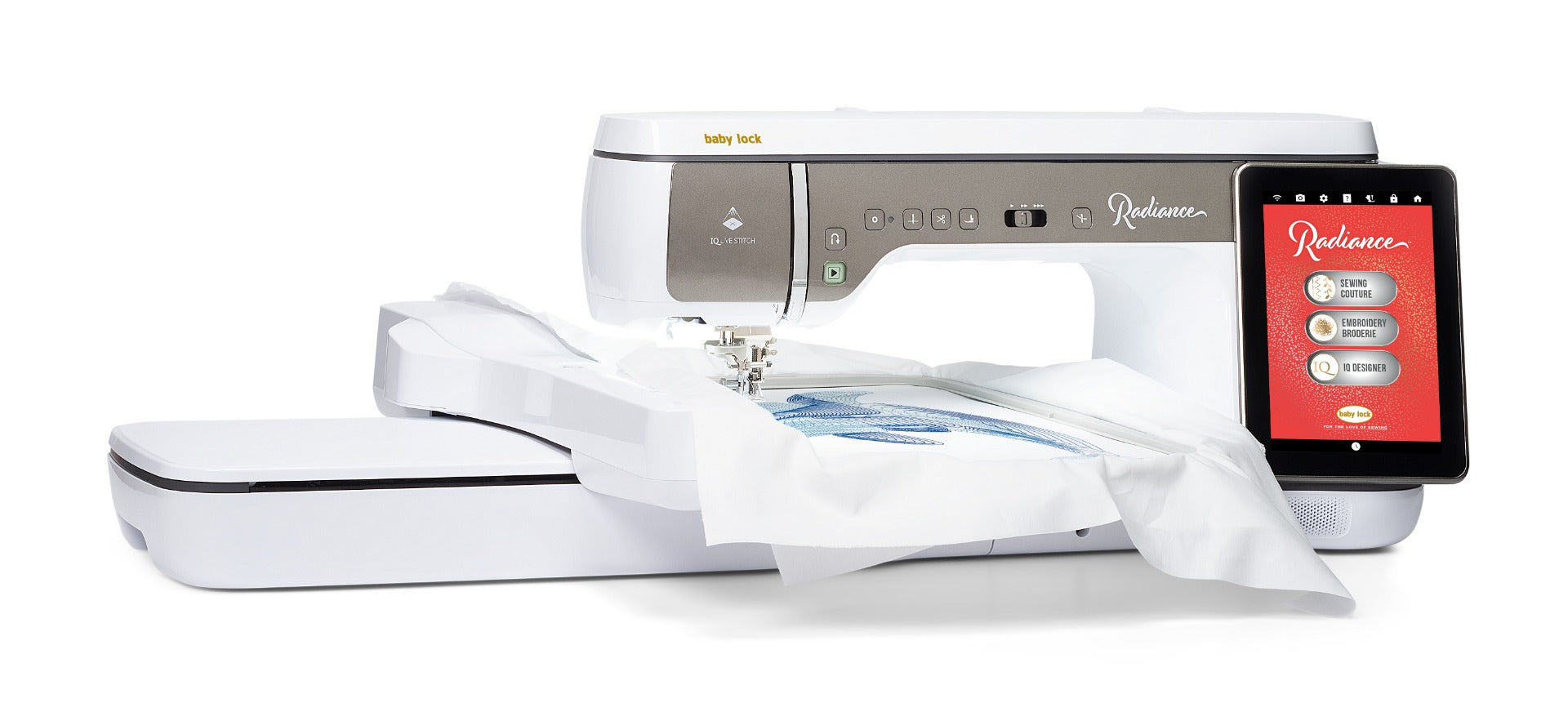

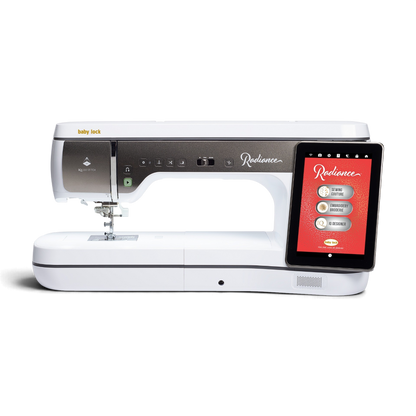

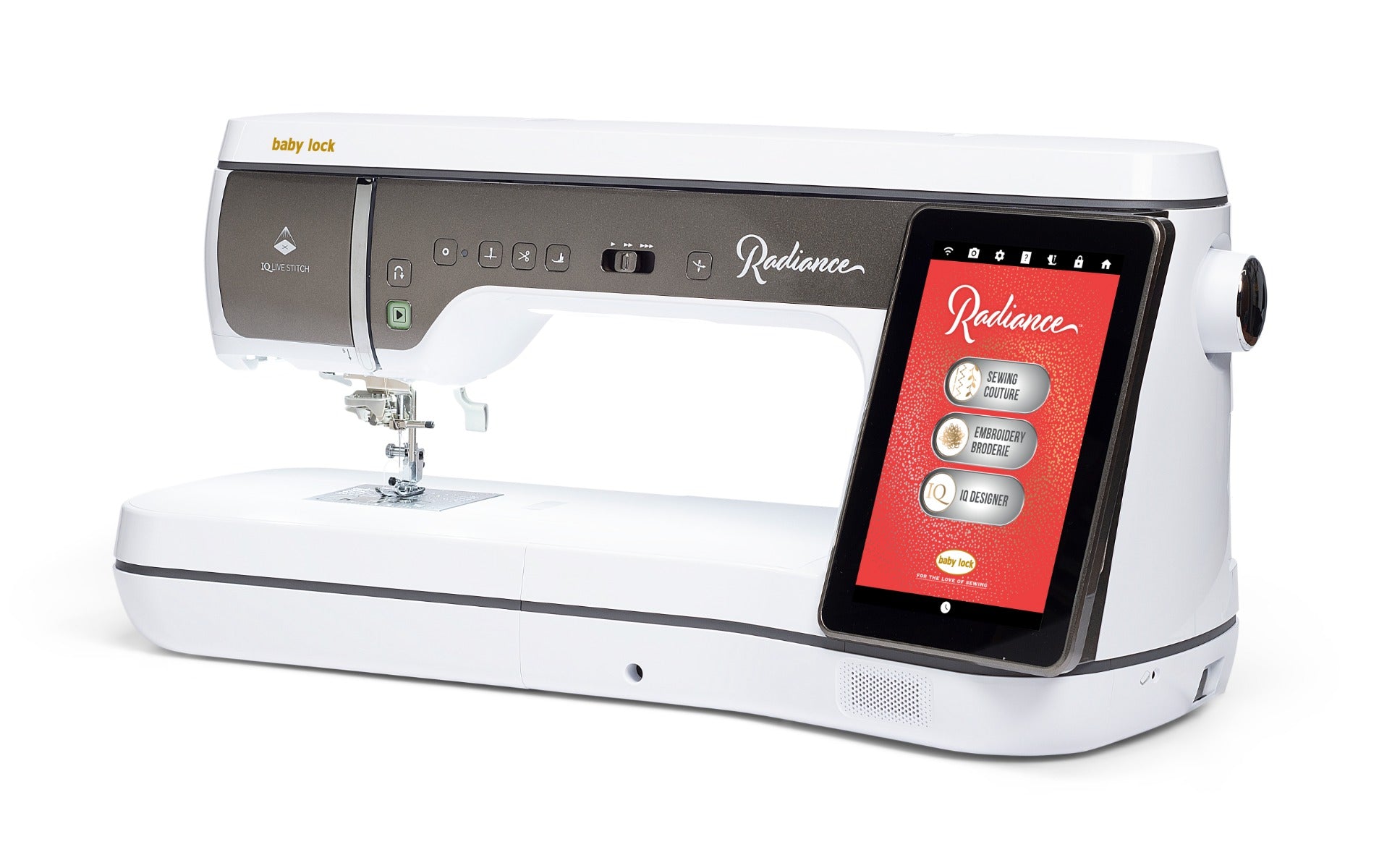

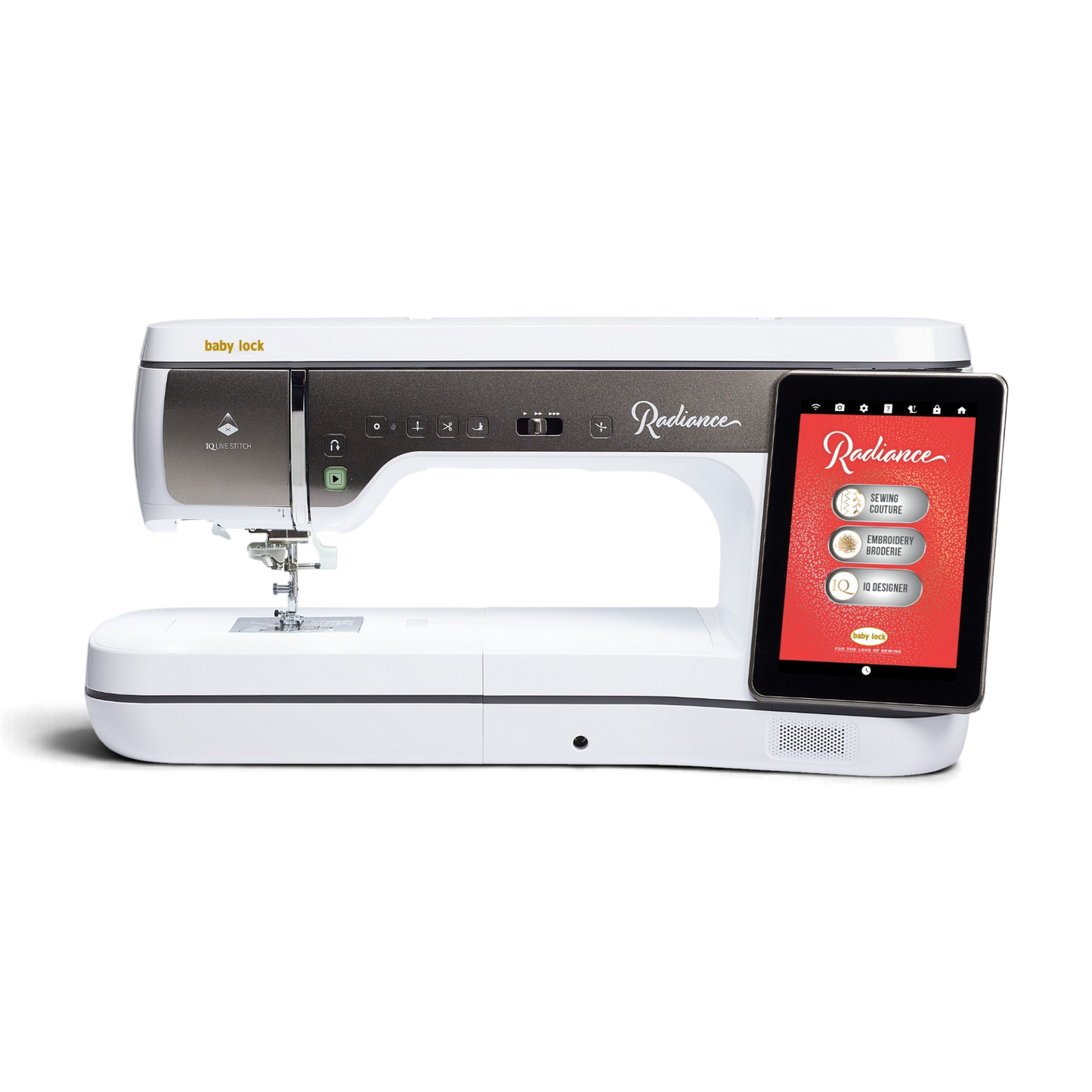

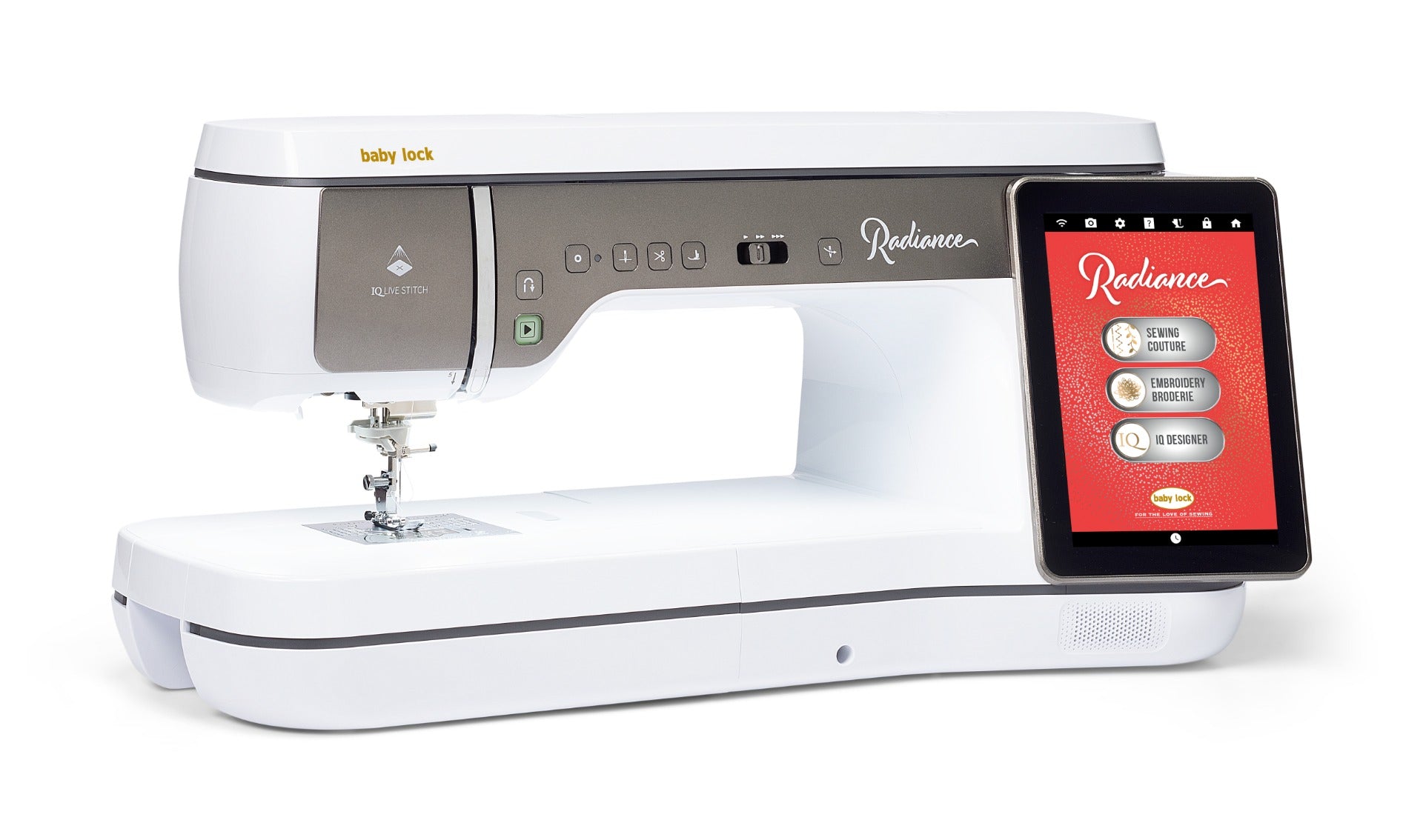

The all-new Baby Lock Radiance Sewing and Embroidery Machine will take your creativity into a whole new dimension. This machine surpasses everything available to the creative sewing enthusiast! This machine boasts the largest embroidery of 18 ¼” x 11 5/8” and with a new larger projection area of 8” x 5”, placement of your embroidery has never been easier. The Radiance comes equipped with AI driven, on-board photo-to-embroidery design capability, where you can turn your photos into an embroidery masterpiece! Quilter’s will love StitchSyc™, this is a built-in stitch regulator that will match the speed of the machine with your fabric movement, while freemotion quilting, resulting in consistent stitch lengths. Baby lock’s IQ Live Stitch™ projection now allows for the ability to preview buttonholes styles and placements, along with stitch projection behind the needle! The Edge-to-Edge quilt feature makes the Radiance a phenomenal substitute for a longarm machine. Voice guidance uses audio prompts to guide you through the steps of a project.

The Baby Lock Radiance Sewing & Embroidery Machine embodies perfection in every area of sewing, quilting and embroidery. The technology built into this machine we would only have dreamed about, just a few years ago. It’s so beautiful, and this beauty can only be surpassed by the projects you bring to reality while using this amazing machine.

Top Features

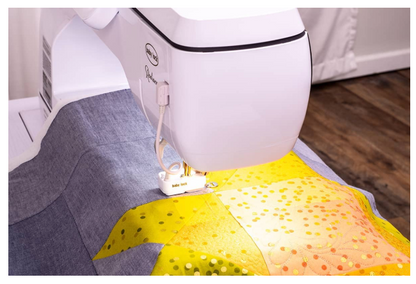

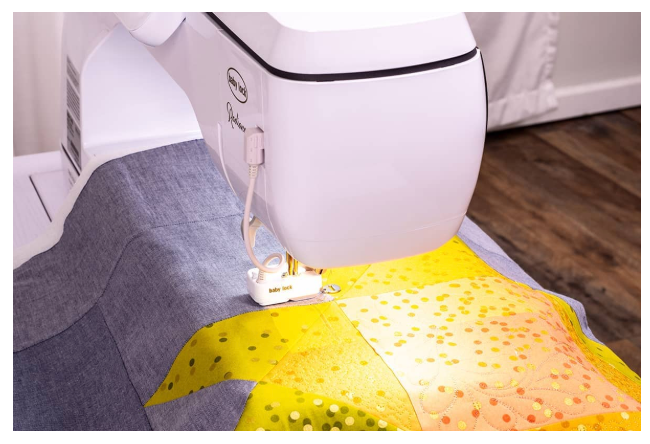

StitchSync™ Regulation

A built-in Stitch Regulator that matches your movement of fabric with the stitching speed, resulting in even and consistent stitches while free-motion quilting. Choose between Intermittent, Continuous, or Basting mode for a variety of free-motion quilting techniques. Chose from 3 interchangeable soles: quilting, open toe, and echo quilting.

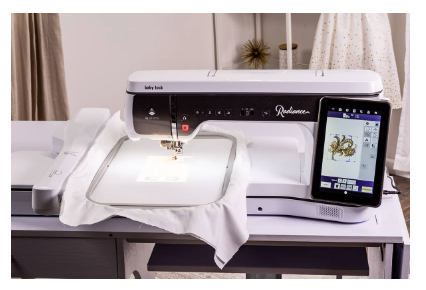

11 5/8″ x 18 1/4″ (297mm x 465mm) Embroidery Hoop

This is Baby Lock’s LARGEST hoop yet! Use with the included embroidery table extension for added support for large projects.

14.1″ (358mm) to the Right of the Needle

An unprecedented 14.1″ to the right of the needle for an overall workspace of 205 square inches giving you plenty of room to comfortably work on larger projects including full size quilts

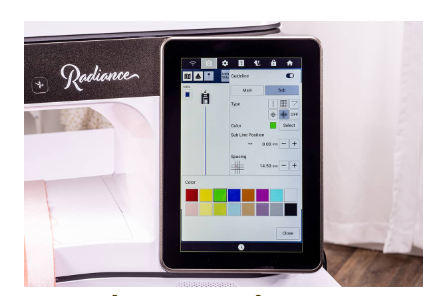

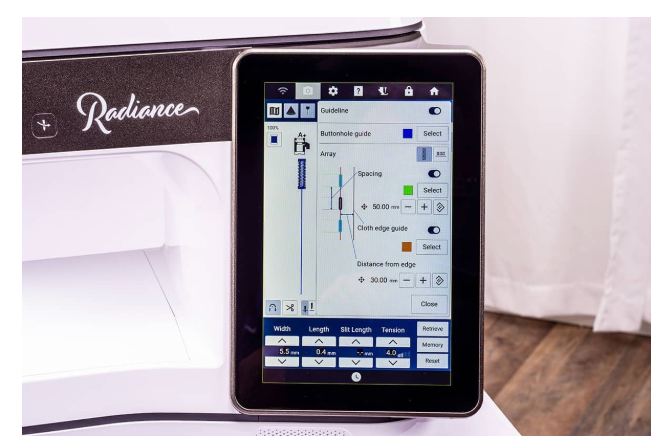

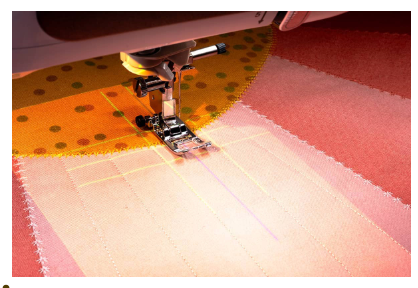

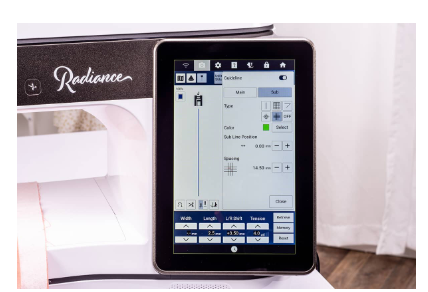

Precise Sewing Placement with Projected Guidelines

The Baby Lock Radiance Embroidery Machine uses a variety of guideline markers and grids for precise placement. While in sewing mode, switch between 16 different laser colors for better visibility. Choose from three main guideline patterns, 6 sub-guideline patterns as well as eight guideline angles.

NeedleCam™ Digital Camera – for embroidery and sewing positioning with faster scanning

• Precise Touch Positioning™ using NeedleCam
• Camera detecting buttonhole foot with stabilization plate

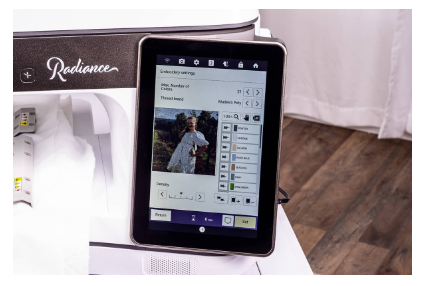

Picture Play

AI driven, built-in software allows you to import your own picture (up to 6MB) and select from 12 options to convert it to an embroidery design. It’s like painting with thread!

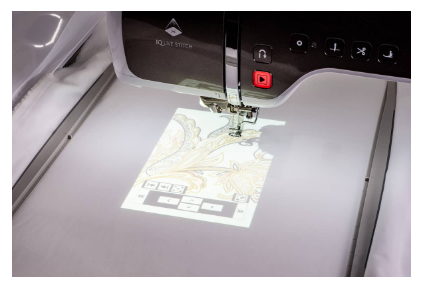

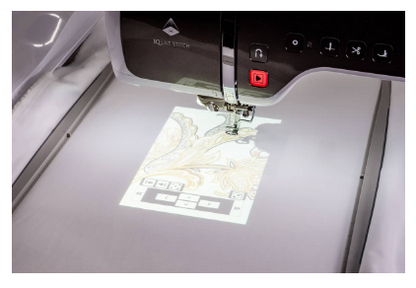

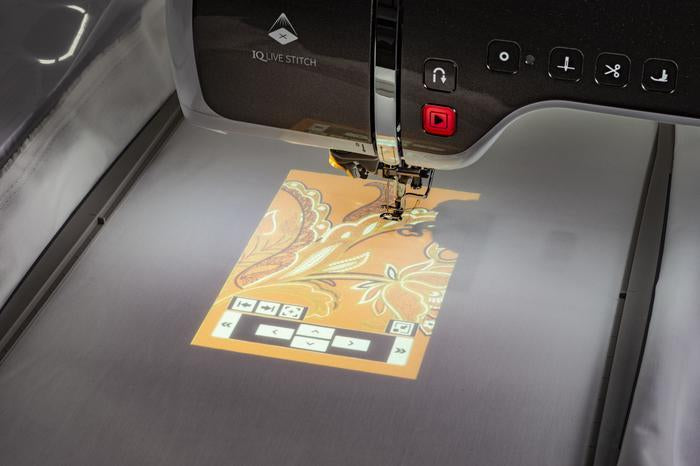

IQ Live Stitch™

• Projects your embroidery design or sewing stitches in an 8″ x 5″ (203mm x 127mm) area

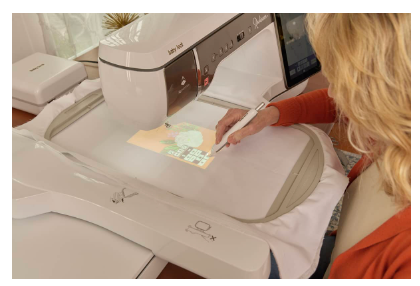

• Advance and select stitches from projection using the Dual-Purpose Stylus
• Select background color from projection using Dual Purpose Stylus
• Set stitch width, length, and left/right shift
• Projection of Guide Beam, Grid, and Needle Beam for precision alignment of stitches

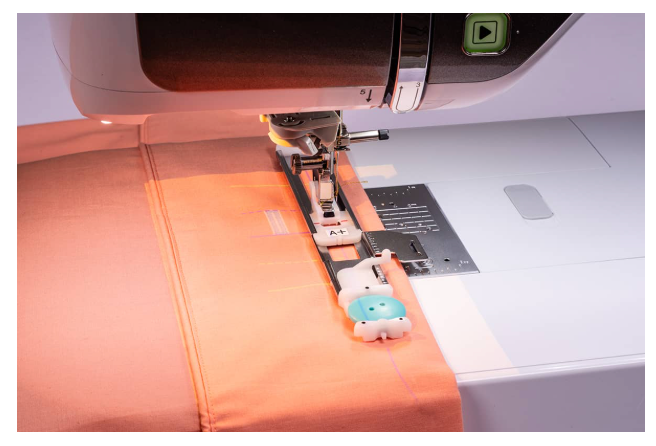

• Buttonhole preview either vertically or horizontally

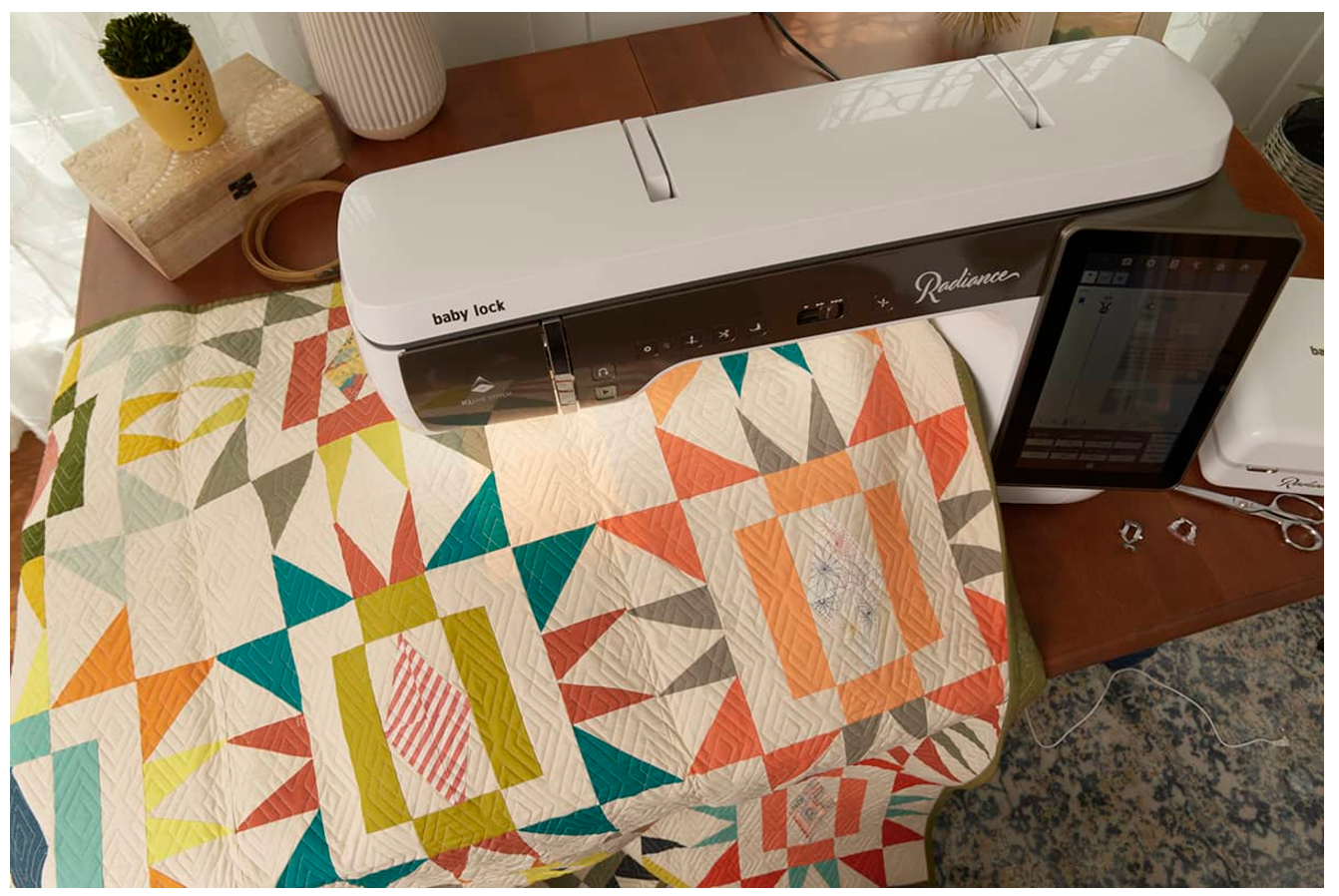

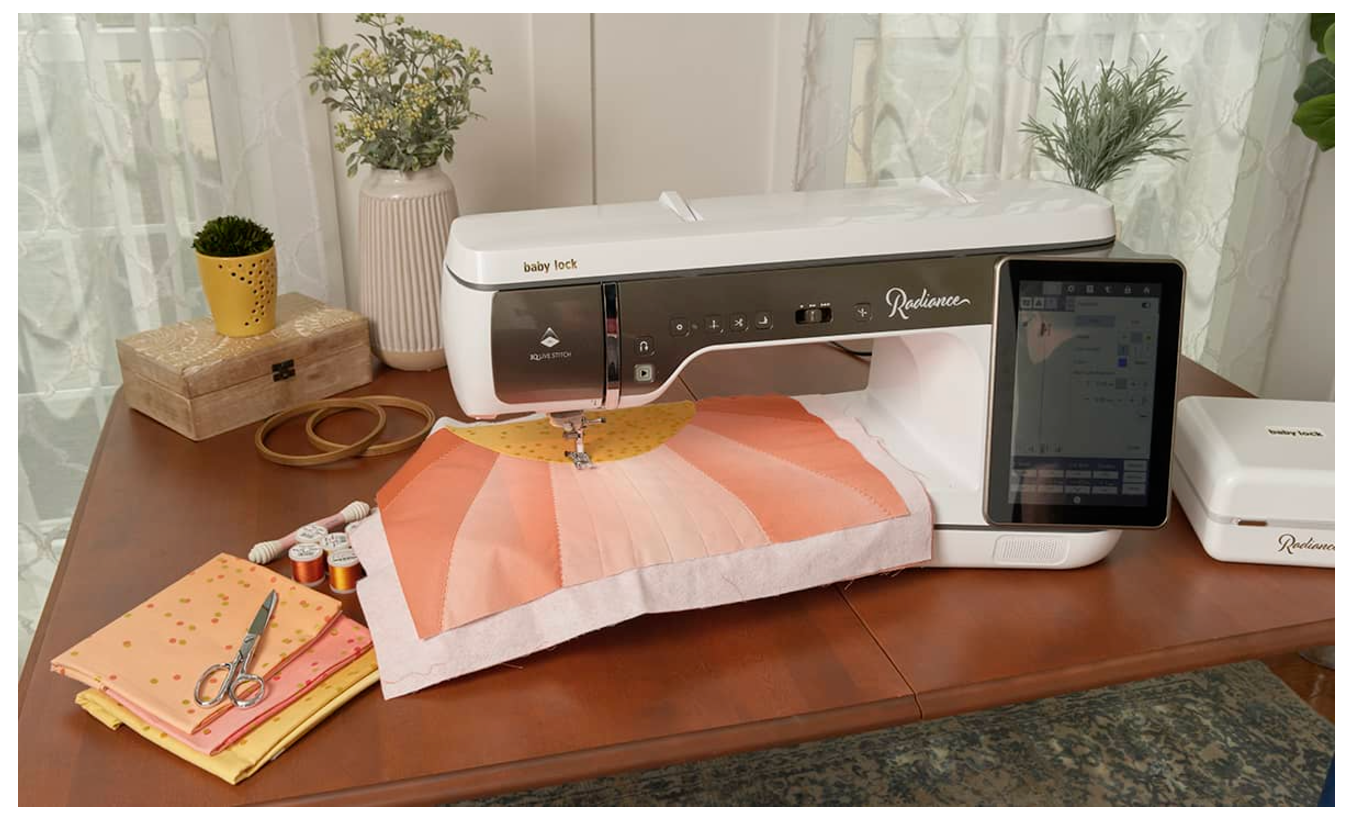

Outstanding Quilting Features

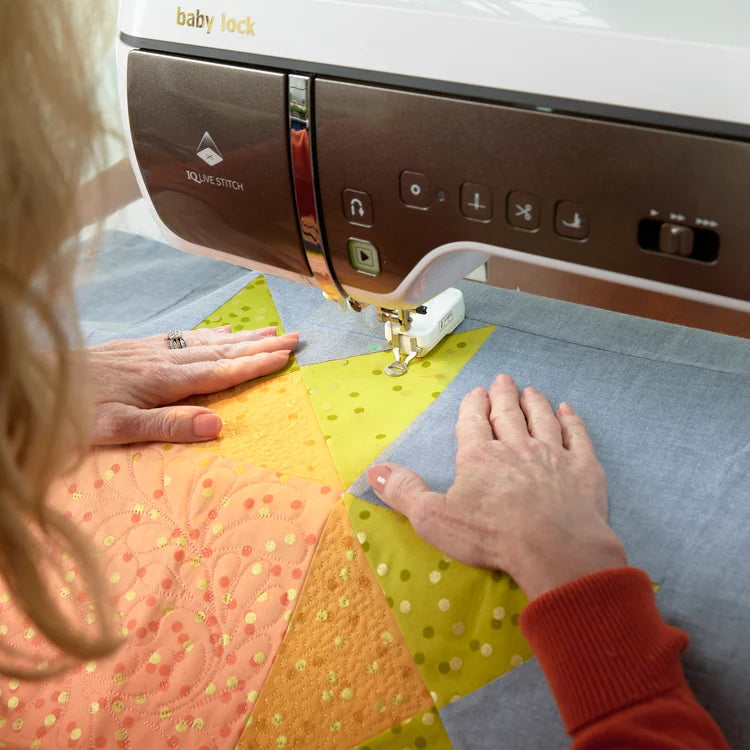

The Baby Lock Radiance Sewing & Embroidery Machine is top in the class providing the latest in quilting technology. Its large 14.1” opening gives you plenty of room for quilting or sewing large bulky projects. The digital dual feed with ensure even stitching on multiple layers of fabric and the built-in projected guidelines will keep you on the right path to finish your quilt beautifully!

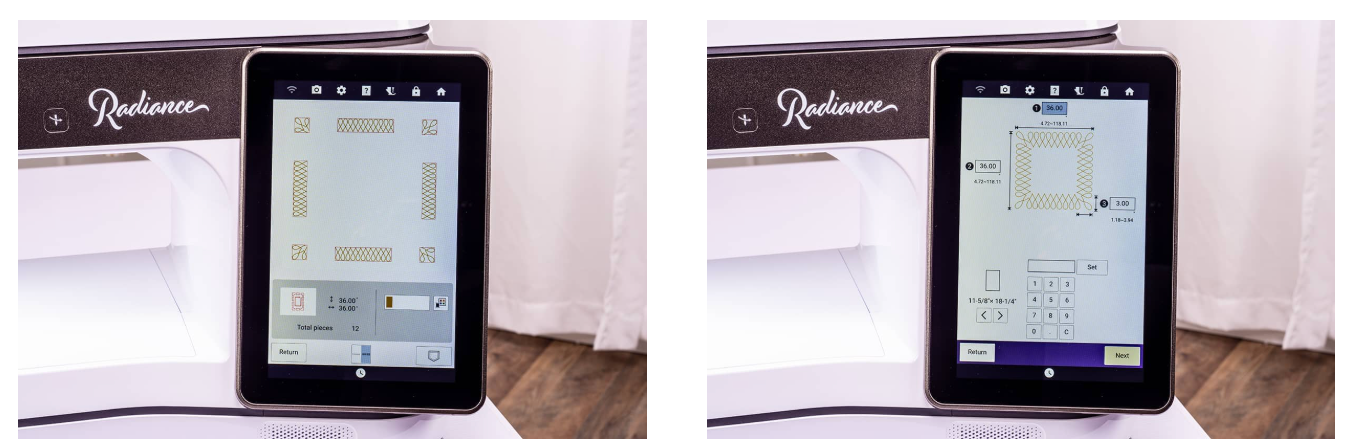

Built-in Quilt Sashing Borders

Create beautiful quilt borders and sashing with unmatched precision using the 30 patterns and two shapes. Enter a few measurements, and the Radiance does the necessary calculations for you. The onscreen instructions guide you every step of the way for quilts measuring up to 118″ x 118″.

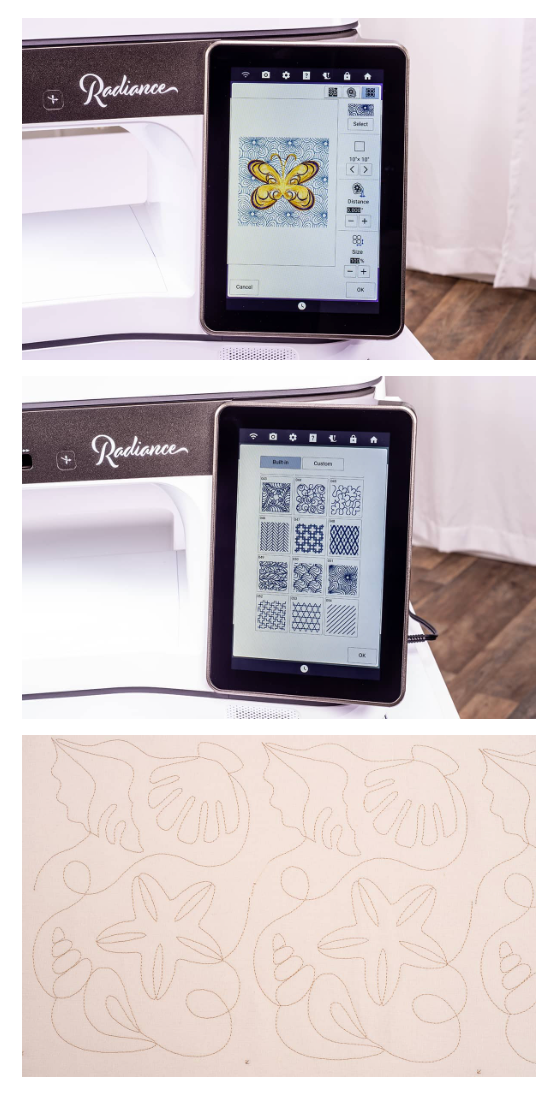

Quilting Around Embroidery

Add automatic stippling, echo stitching, and decorative fill patterns around embroidery designs.

New Embroidery Fills

New fill patterns have been added to the Baby Lock Radiance Embroidery Machine, 54 in total, which can be used for quilting around a design or in creating your own design in the IQ designer function.

Edge-to-Edge Quilting

Create beautiful edge-to-edge quilting projects using the 15 built-in patterns. Enter a few measurements, select a hoop, specify flip options, and the Radiance sets up your entire quilt. The on-screen instructions and design projections guide you every step of the way for quilts measuring up to 118″ x 118″. Use the optional 10″ x 10″ magnetic quilting and embroidery frame for easy quilting across your entire quilt.

One-of-a-Kind Embroidery Features

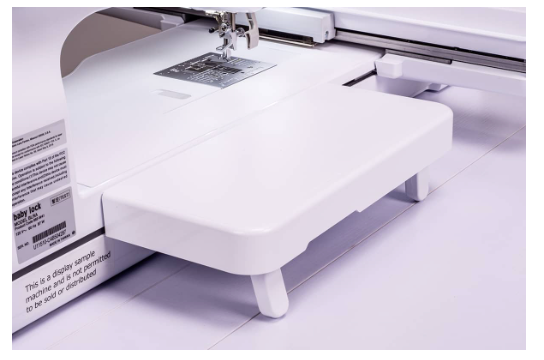

New hoop support table

This provides extra support for the Radiance’s large 18 ¼” x 11 5/8” embroidery hoop.

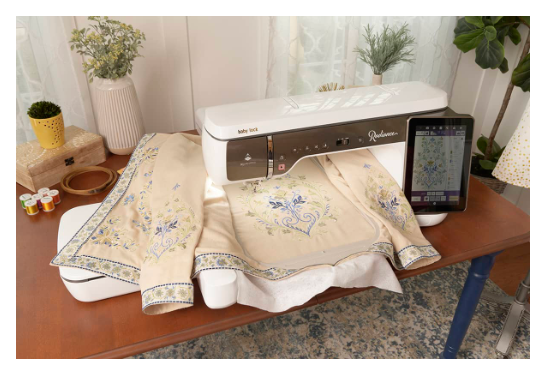

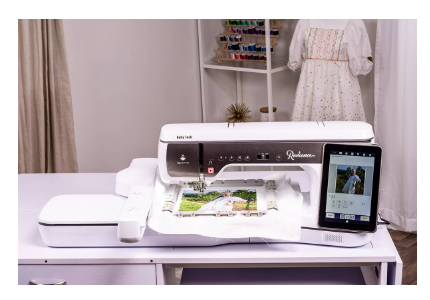

Largest Embroidery Frame

The Baby lock Radiance comes with a large 11 5/8” x 18 ¼” embroidery hoop that now had two quilt release levers, one on each end. The sides are rubber coated to hold fabric securely.

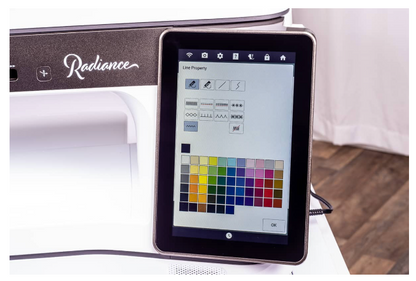

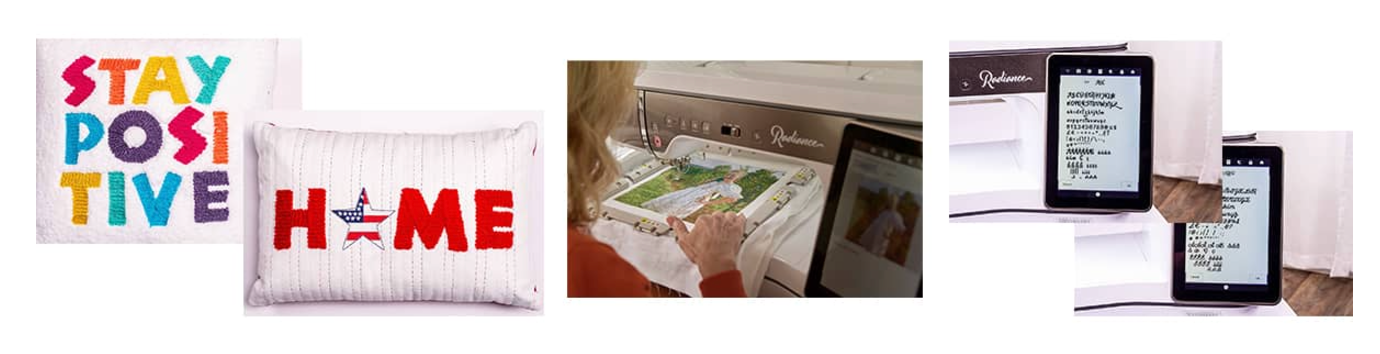

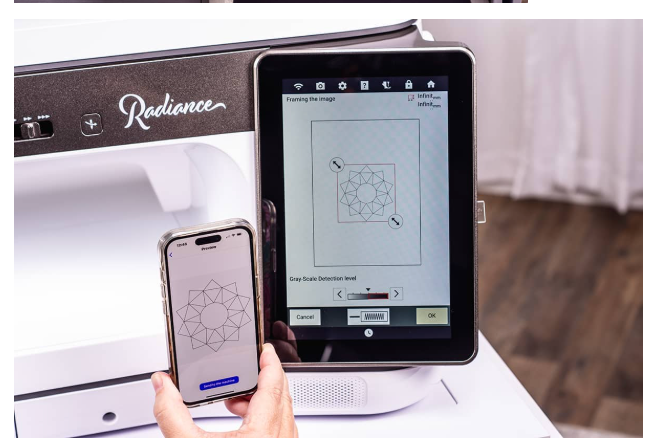

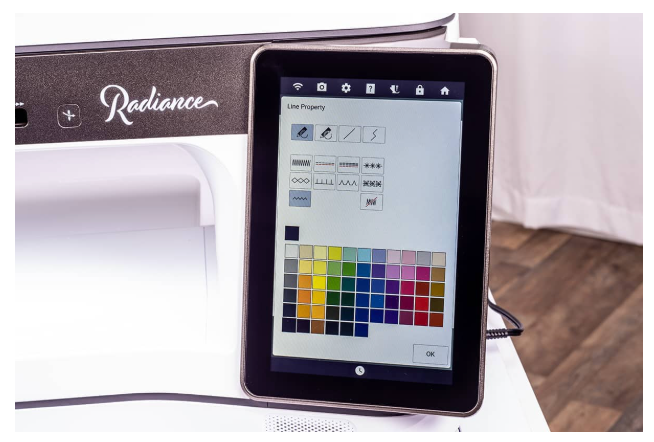

IQ Designer

Without the need of a computer, the Radiance can create customer embroidery and quilting designs from artwork that you scan in, load from a USB, or send via one of its included apps. Use the built-in fill or motif patterns in your design creations or import from one of the Baby Lock Motif and fill collections.

1858 built-in embroidery designs

• 381 Baby Lock Exclusives
• 35 Sewlebrity designs
• 17 Buttonhole embroidery designs in 5 sizes
• 27 Buttonhole embroidery decoration designs
• 240 Large decorative stitch designs
• Couching Alphabet
• 74 Quilting designs
• 40 Couching patterns
• 7 Large-connect designs
• 7 Crochet lace designs
• 11 Large alphabet designs
• 18 Long-stitch designs
• 11 Applique designs

Key Sewing Features

• 1610 Built-in stitches including
• 184 Utility including 15 one-step buttonhole styles and 1 fourstep custom buttonhole
• 527 Decorative
• 79 Decorative satin
• 20 Satin
• 21 Cross-stitch
• 63 Combinable Utility
• 3 Hand-look Quilting
• 20 Tapering
• 4 Built-in alphabets
• 40 Quilting stitches offer 57 needle position options
• Stitch length 0.0mm – 5.0mm (Stitch length over 2mm can increase in increments of 0.2mm)
• 2 Basting stitch options: Regular (5mm) and free‑motion
• Maximum Utility stitch width 7mm
• Utility stitch editing capabilities
• 5 Memory settings for each Utility stitch
• Decorative stitch editing capabilities
• Sewing function is available while the embroidery arm is attached
• Specify end-point for stitch line with capability to end with a completed pattern
• Stitch taper for specifying start and end angles of a select category of stitches
• Dual Feed Foot
• Stitch Regulator
• Automatic drop feed key on screen
• Lock key for Utility and Decorative stitches
• Reinforcement priority settings
• Lateral and diagonal feeding
• Variable needle positions
• Fully automatic built-in darning
• Twin needle settings

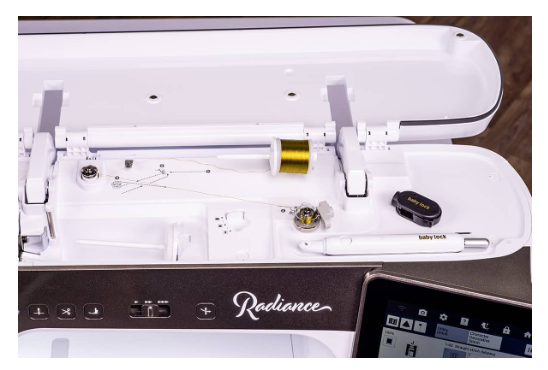

Increased Bobbin Capacity

Increase in bobbin capacity 4.5m (14.75 feet)

• Quick-Set, Top-Loading bobbin with sensor
• Quick-Set Independent bobbin winding system
