Baby Lock Ursa

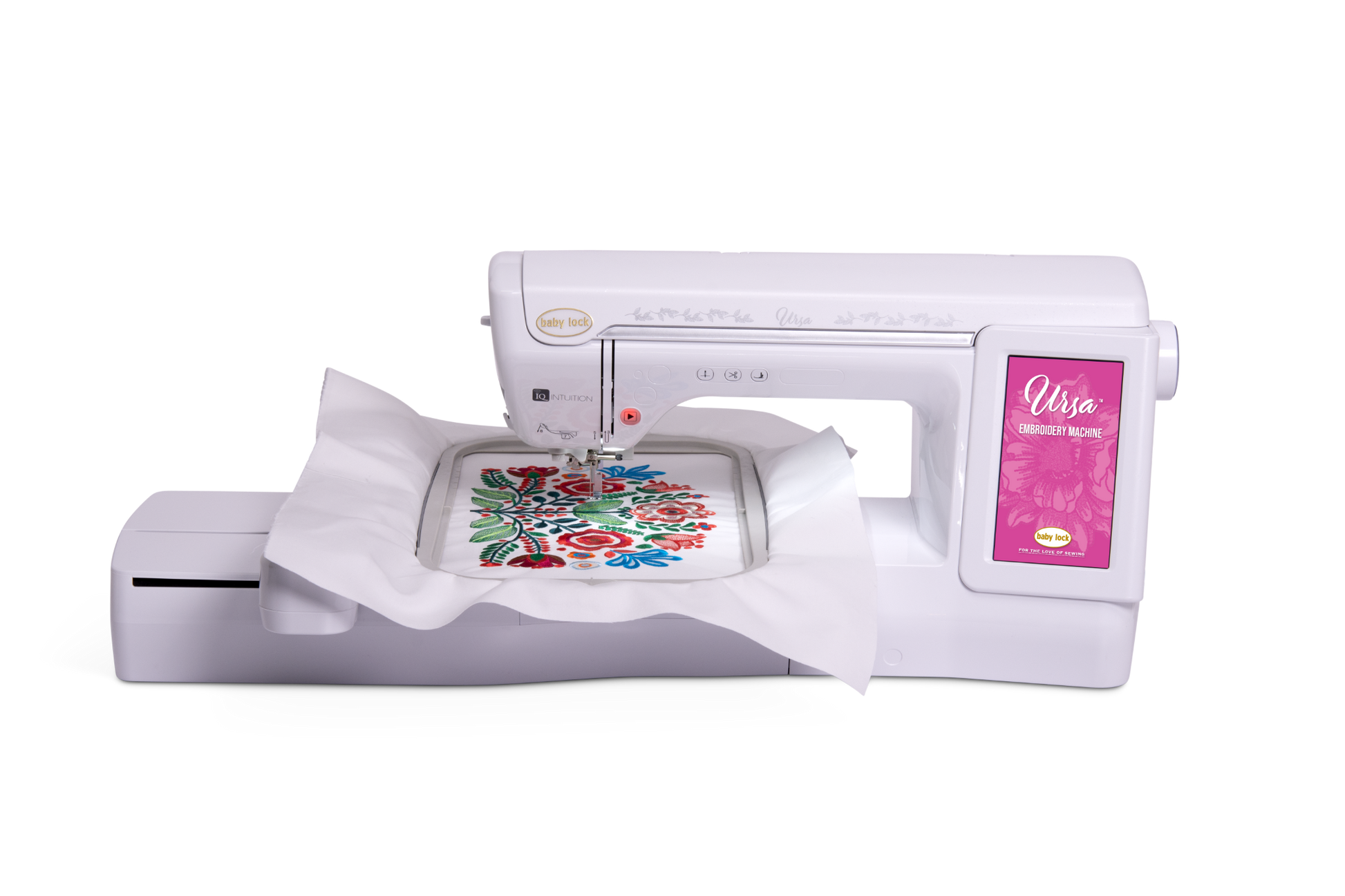

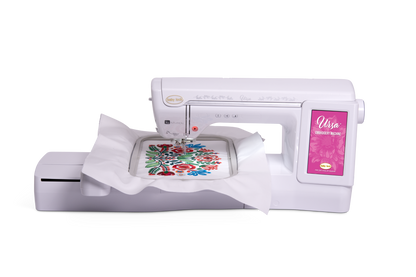

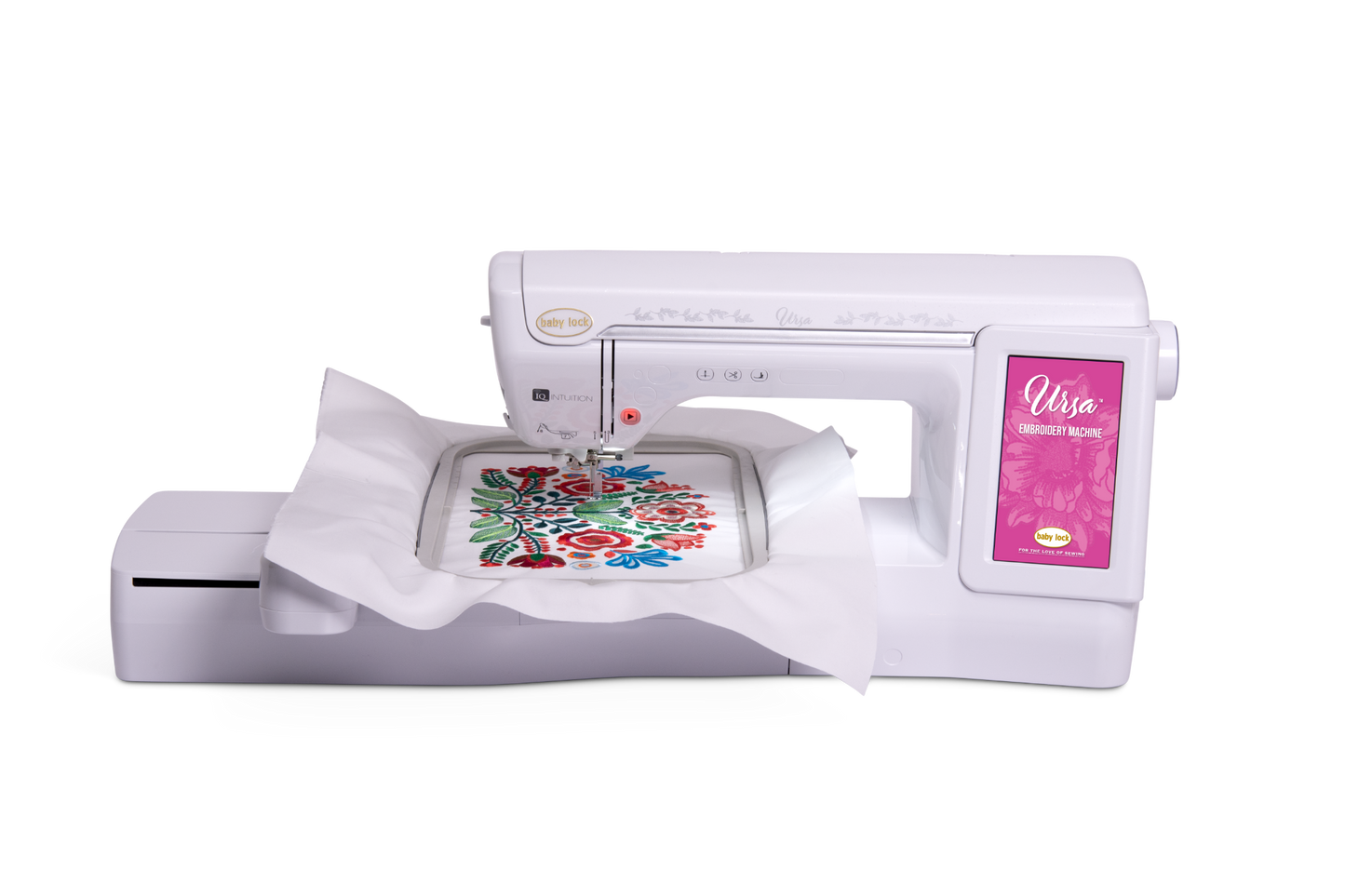

Bring your embroidery to life with accuracy and ease using the Baby Lock Ursa™. Place designs exactly where you want them in the large embroidery area, and explore creative possibilities with dimensional, textured details that make every project stand out.
Embroider larger designs without re-hooping, thanks to the 8" x 14" embroidery field.
Preview and auto-position embroidery designs with the Needle Beam and 2-point placement.
Track project progress remotely, get break/thread-change alerts, and see remaining stitch time.

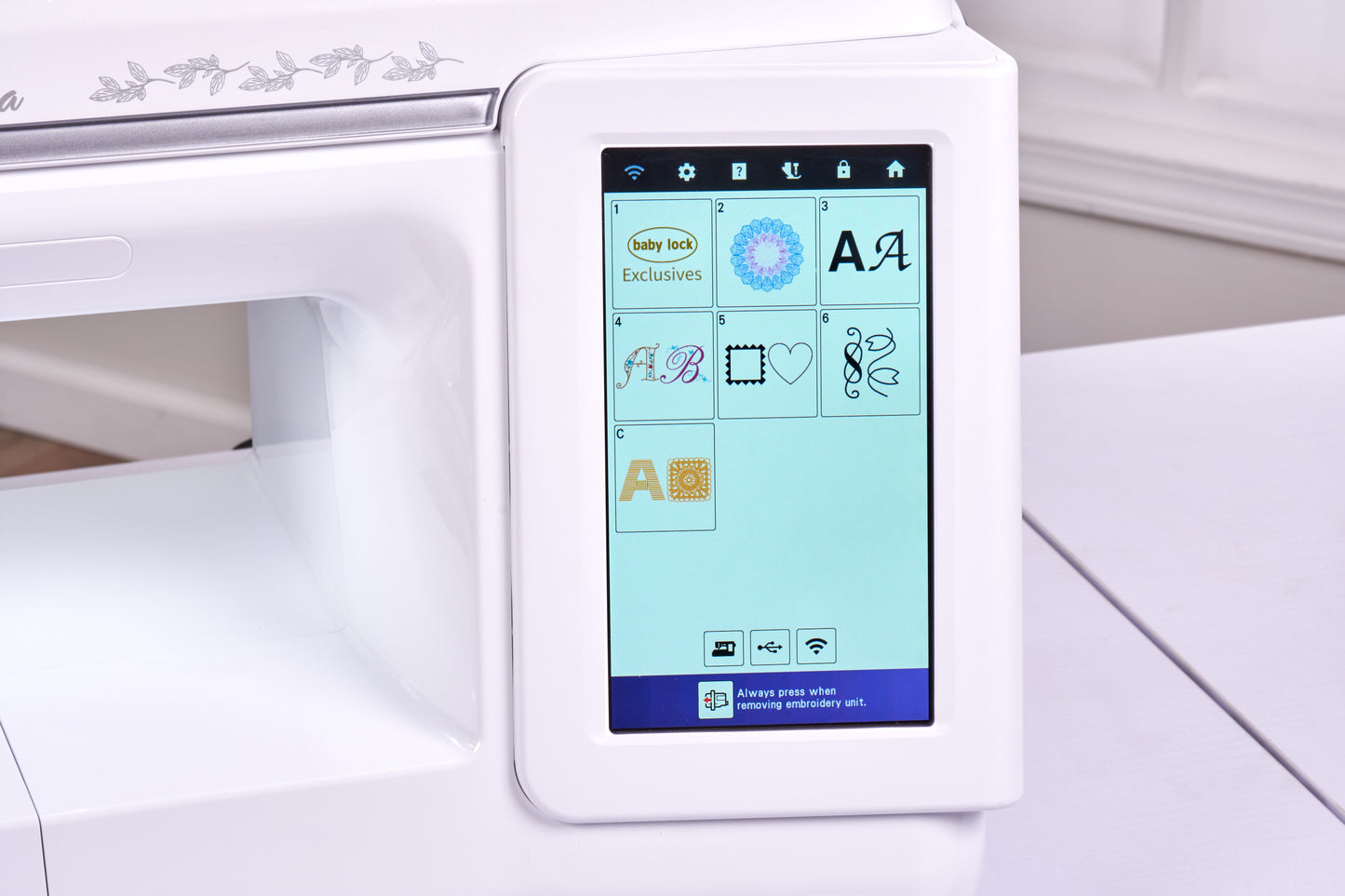

The 7" color LCD vividly displays designs and makes changing settings easy.
Feature

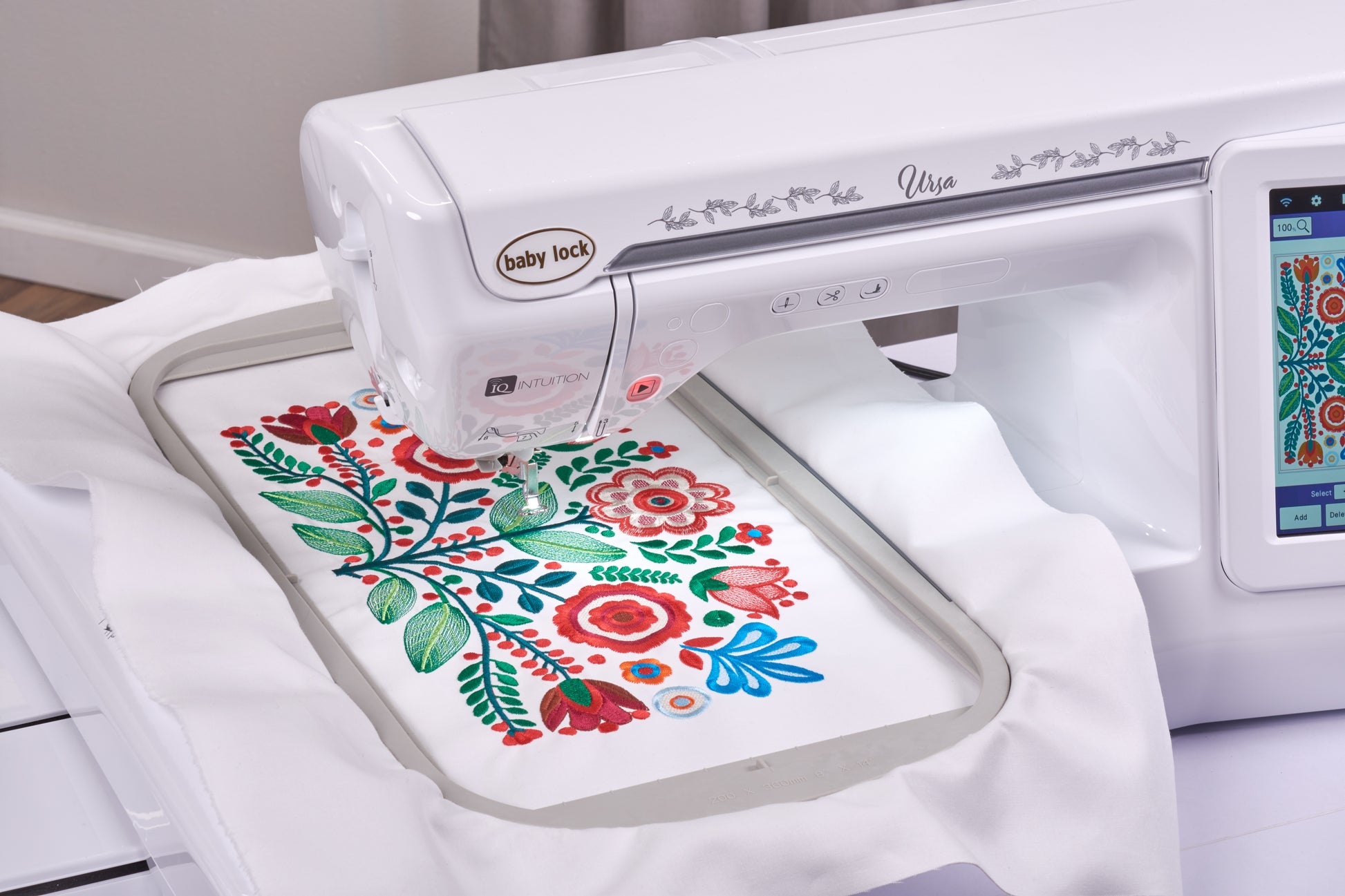

8" x 14" Embroidery Field
Embroider larger designs without having to re-hoop your fabric with the 8" x 14" (200mm x 360mm) hoop.
Feature

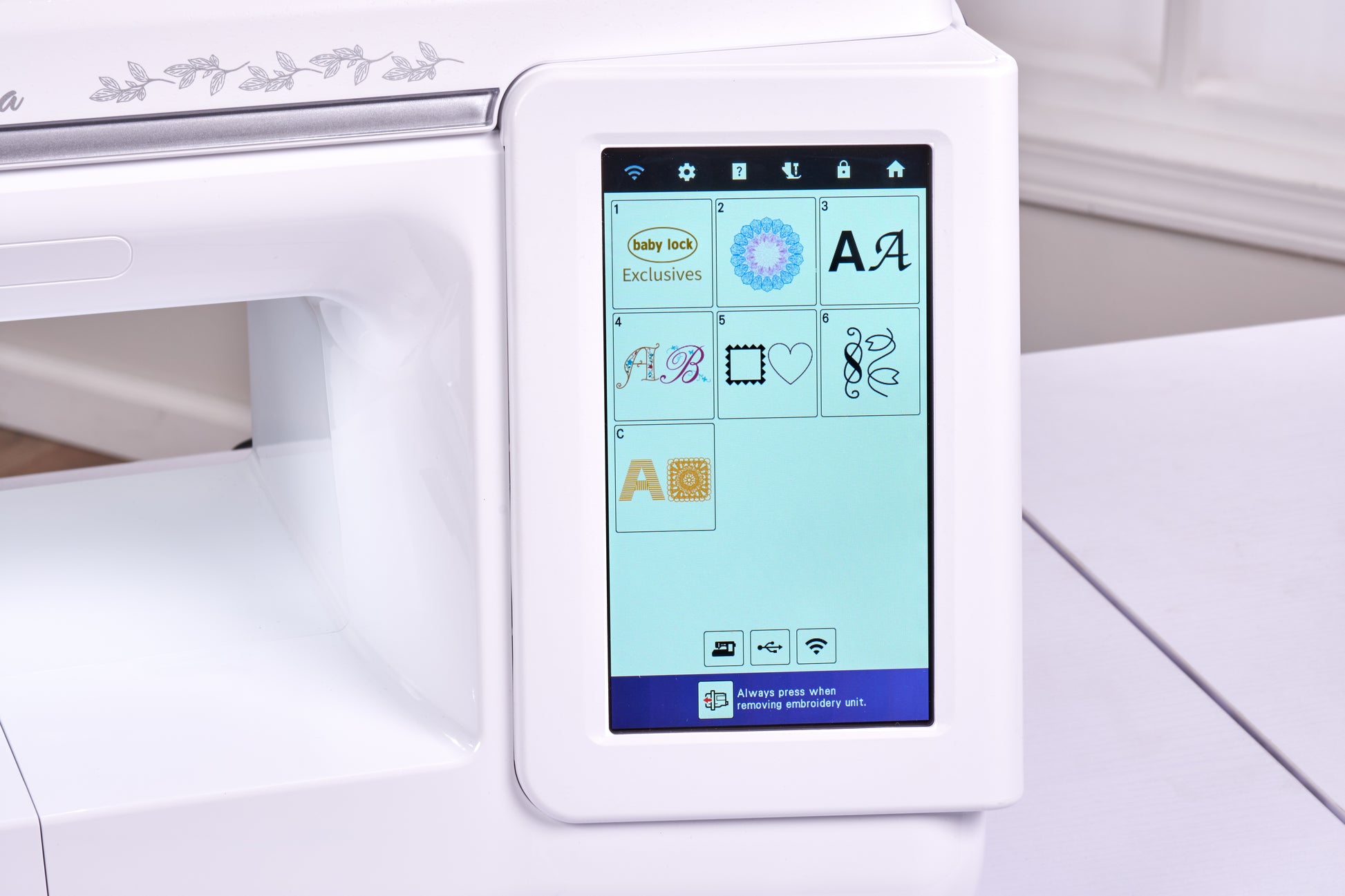

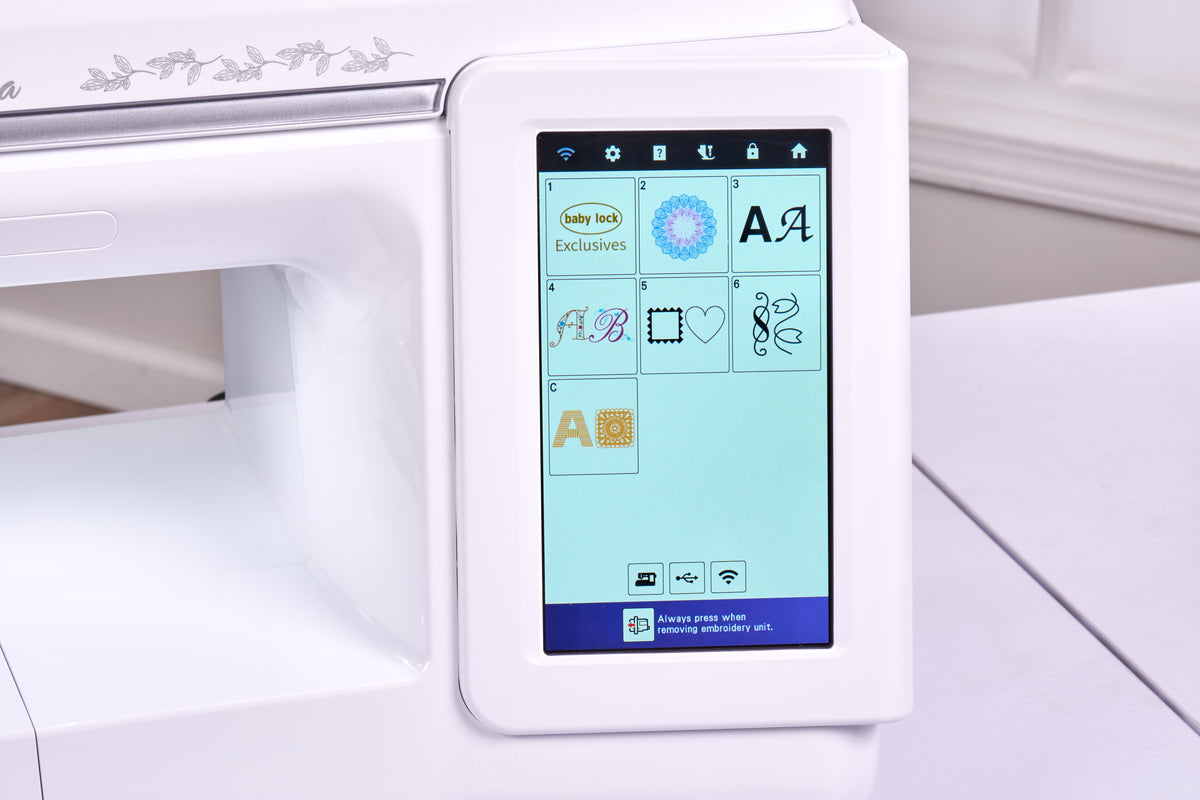

914 Built-In Embroidery Designs
You’ll always have something to embroider with Ursa's wide-range selection of built-in designs. Categories include Quilting, French Knot, Couching, 7 large decorative fonts, 23 standard fonts, Crochet Lace, 3-D Applique, and more.
Feature

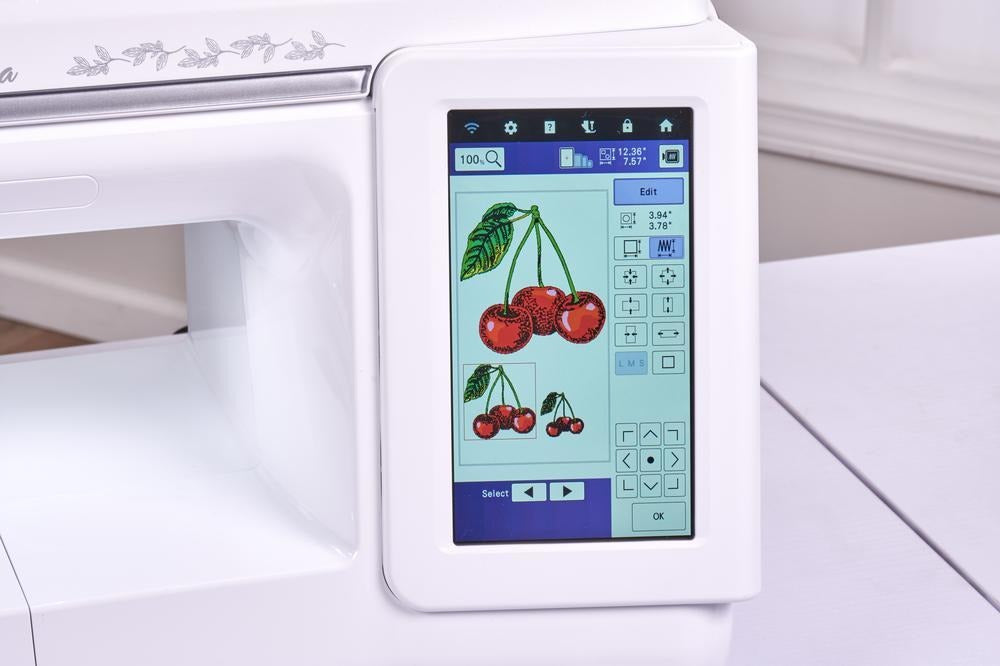

Resizing with Stitch Recalculation
Ursa’s editing tools allow most embroidery designs to be sized down to 60% or up to 200% with consistent density as the stitches are recalculated.
Feature

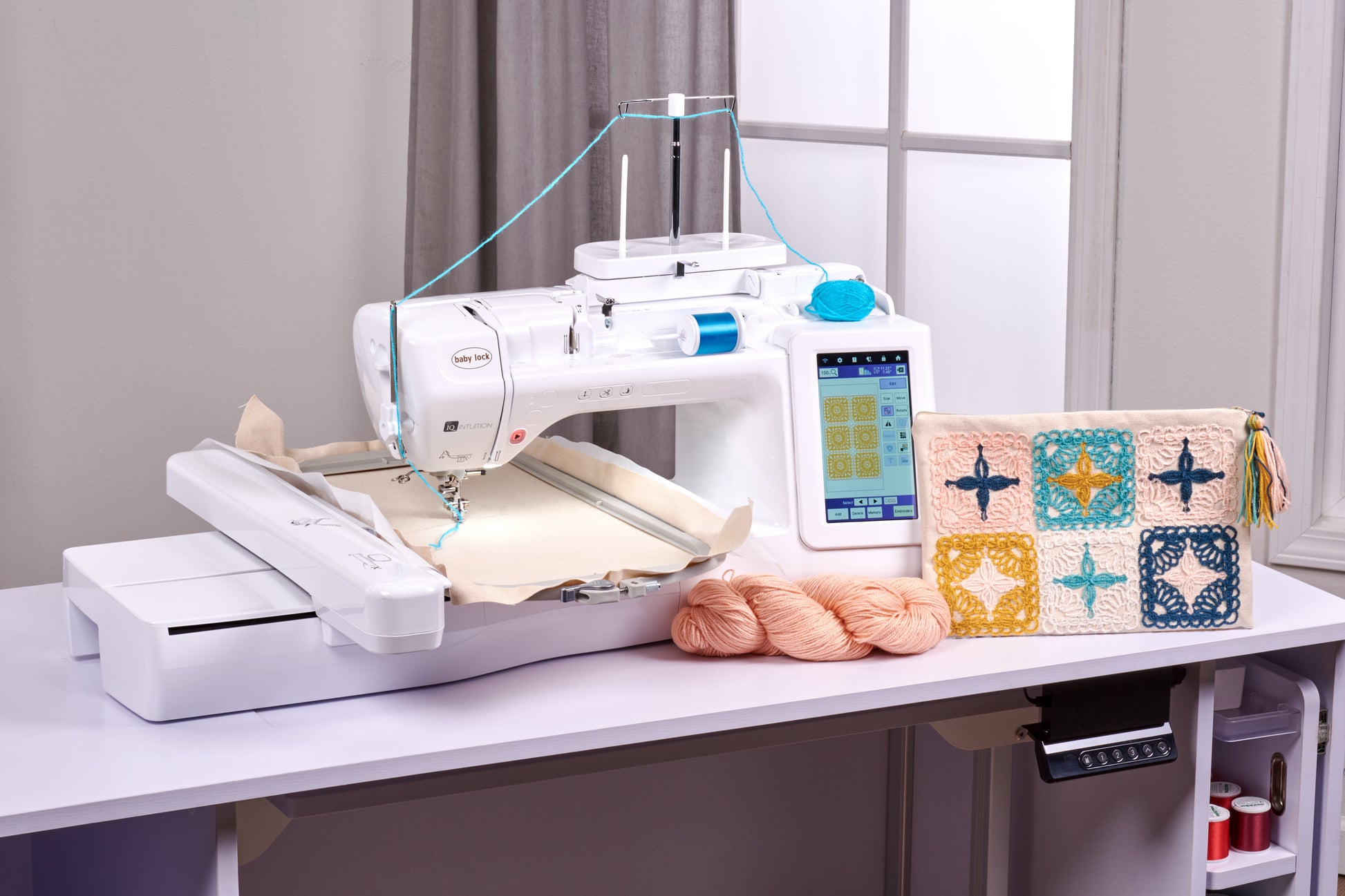

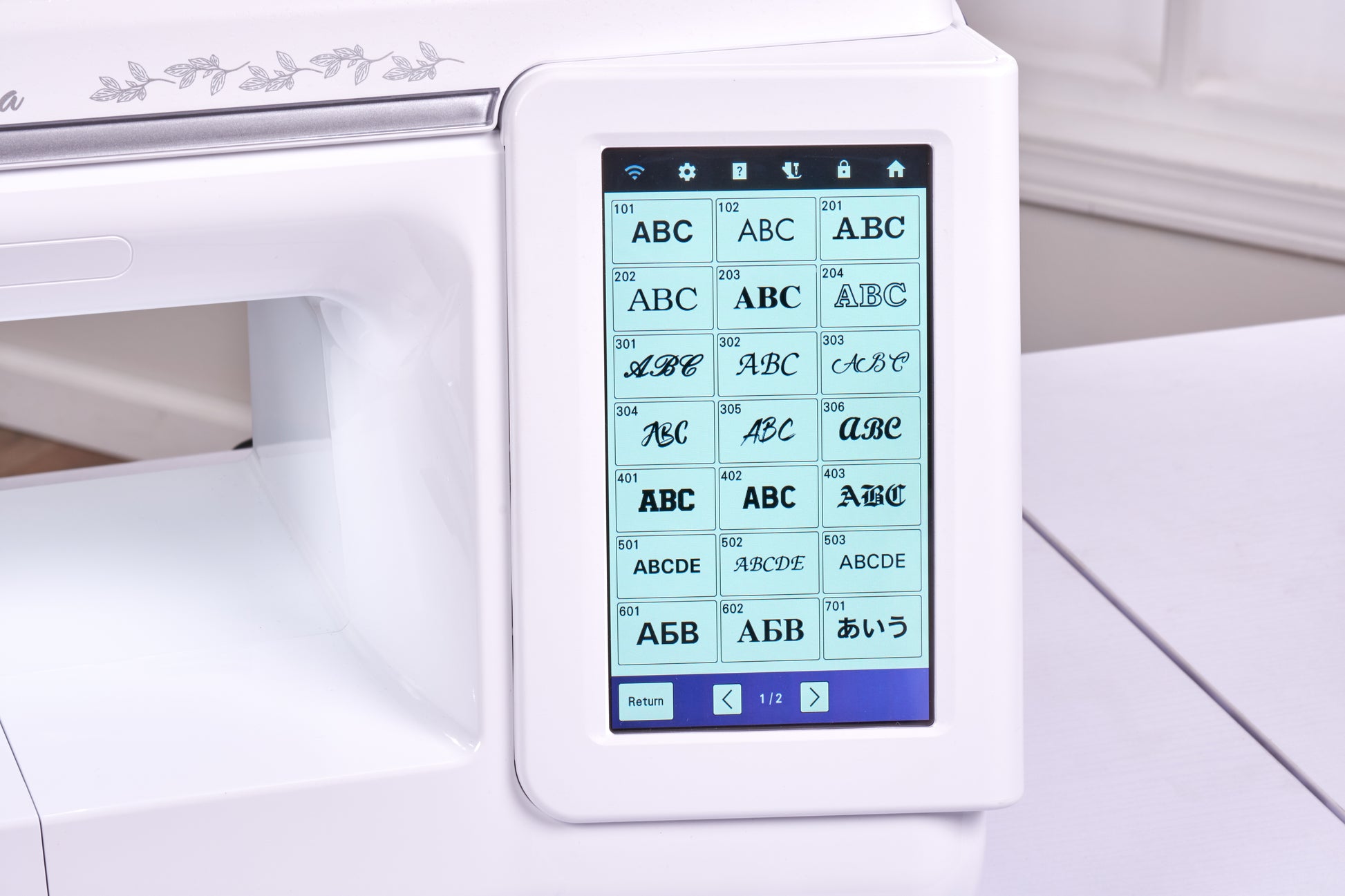

Couching Font and Crochet Couching
Add dimension and texture to your embroidery projects with Ursa’s embroidery couching alphabet or crochet couching designs.
Feature
WLAN Capabilities
Ursa’s WLAN features allow you to update the machine’s software, transfer designs from Design Database Transfer (a free download) and Palette 11 (separate purchase), and monitor your project using the IQ Intuition Monitoring® app.
Feature

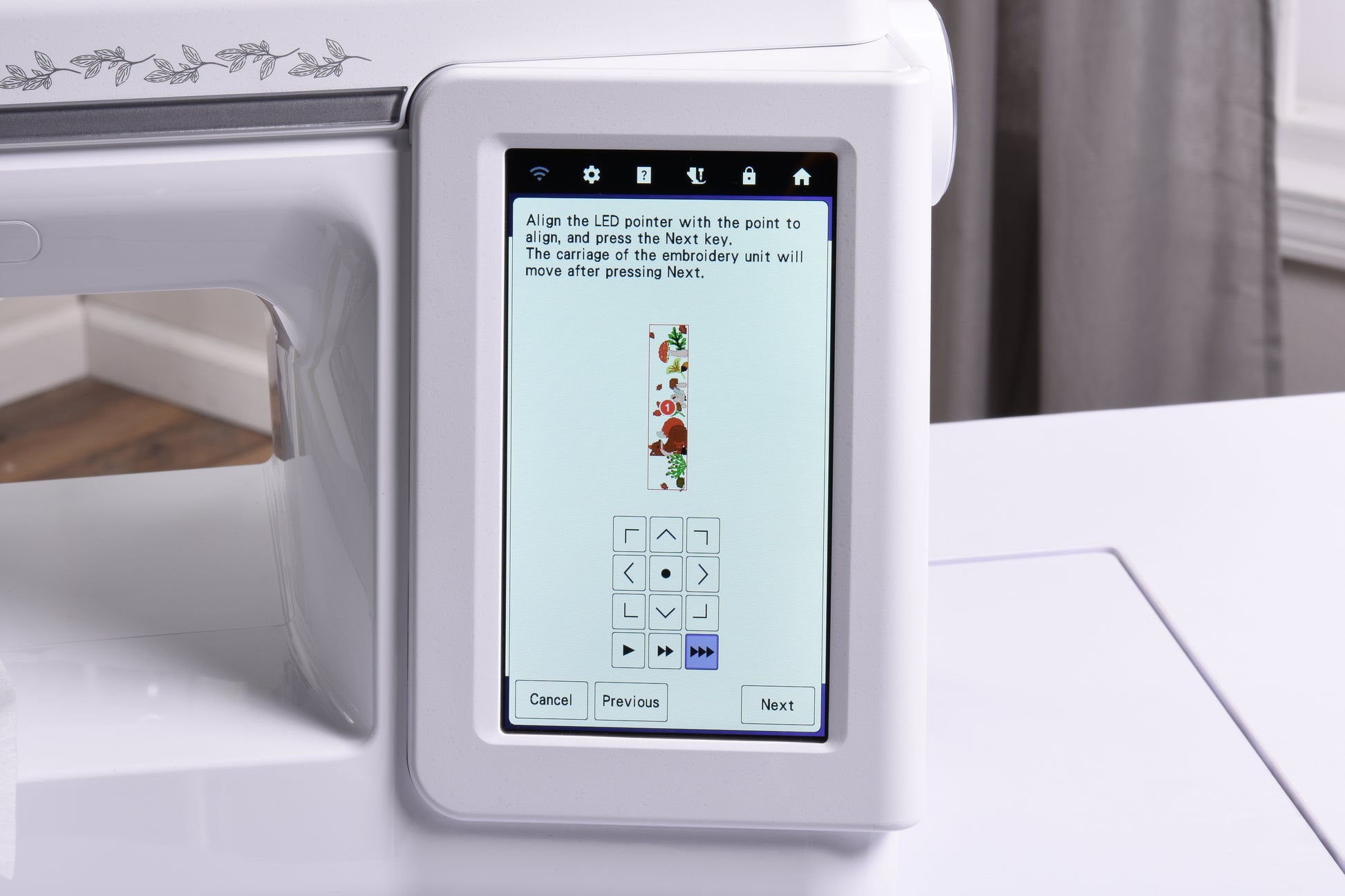

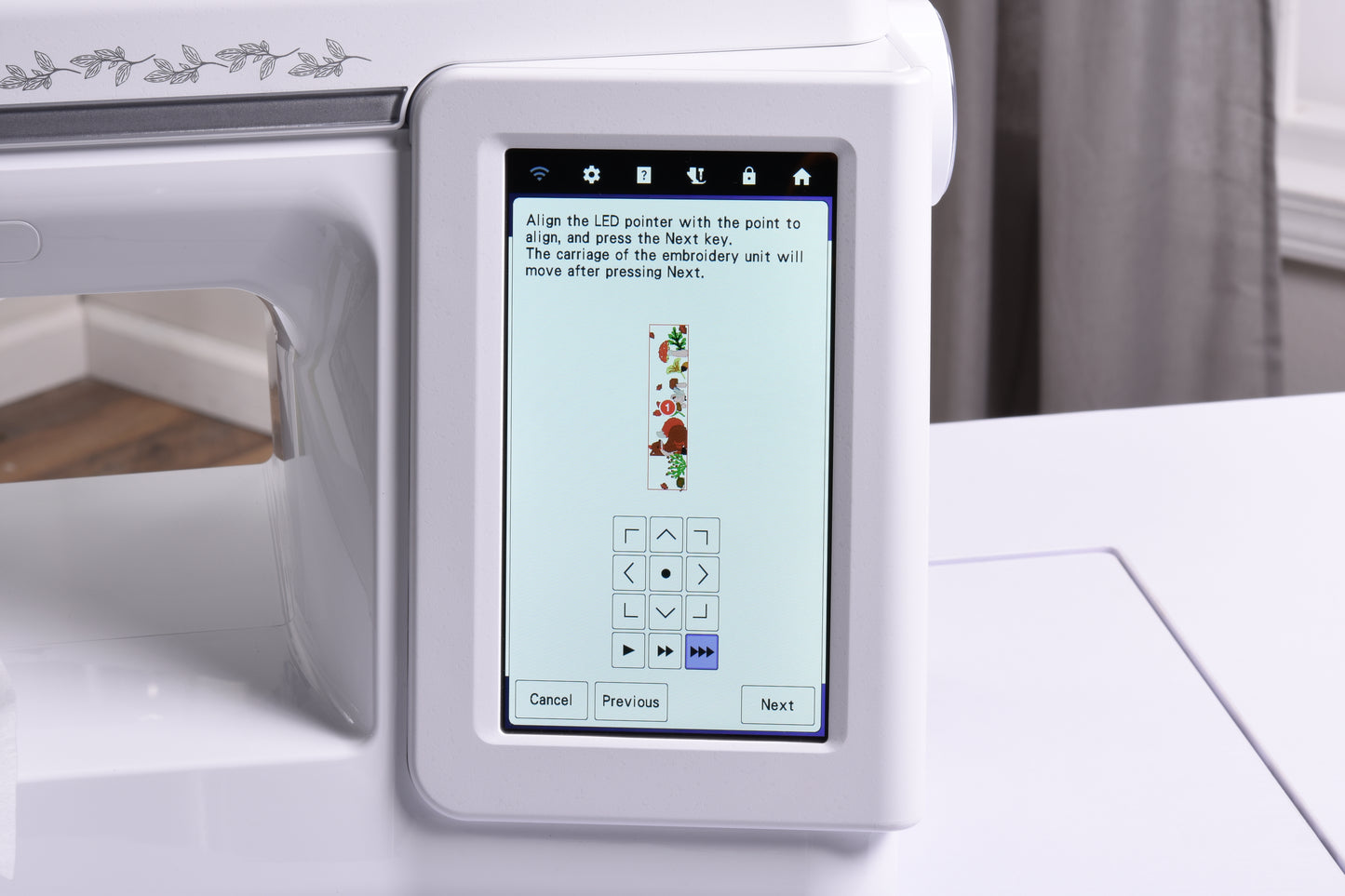

2-Point Positioning
Use the Needle Beam to check various points of your embroidery design. For projects requiring placement or alignment, use the 2-point positioning function to automatically move and rotate your design into position.
Feature

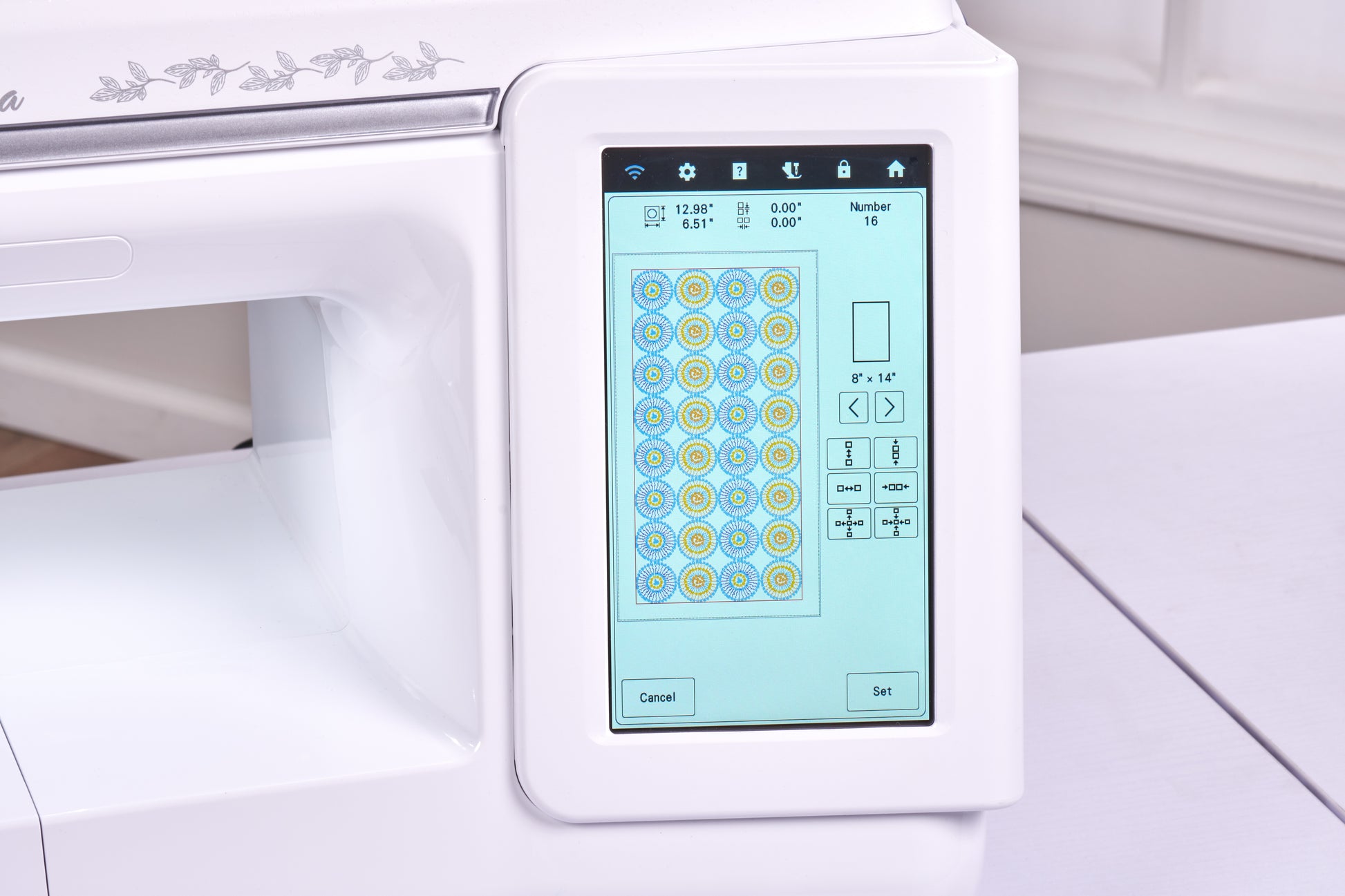

Matrix Copy
This function allows you to repeat and place a design pattern multiple times across the entire embroidery area automatically.
Key Features
- Easy removal of metal needle plate
- Quick-Set top-loading bobbin with thread sensor
- Advanced Needle Threading System
- Automatic thread cutter (with on/off capability)
- Matrix copy in embroidery
- WLAN connectivity for machine updates and design transfers
- Needle Beam
- IQ Intuition Monitoring® App
Included Accessories
- Bobbins (10)
- Touch pen (stylus)
- 2 thread spool stand for larger cones and yarn couching
- Embroidery Foot “UH+” with LED pointer
- Embroidery couching foot Y with guide
- Bobbin center pin for use with prewound bobbins
- Embroidery needle plate cover
- 8" x 14" (200mm x 360mm) Embroidery Frame Set
- 5" x 7" (130mm x 180mm) Embroidery Frame Set
Details
Specifications
| Maximum Embroidery Field | 8" x 14" |
| Embroidery Speed | 850 SPM |
| Built-In Designs | 914 |
| Frame Patterns | 140 |
| Number of Included Hoops | 2 |
| Built-in Fonts | 23 |
| On-Screen Editing | Yes |
| Rotation Capability | Yes |
| Combine Designs | Yes |
| Data Input Types | .pes, .phc, .dst |
| Embroidery Pattern Memory | Yes |
| Touch Screen | Yes |
| Color Screen | Yes |
| Screen Size | 7" diagonal |
| Lighting | 4 LED lights |
| Multiple Languages | 12 |
| Total USB Ports | 1 |
| Needle Threader | Yes |
| Variable Speed Control | Yes |
| Programmable Needle Up/Down | Yes |
| Auto Needle Up/Down | Yes |
| Thread Cutter | Automatic |
| Mirror Image Capability | Yes |
| Bobbin Loading | Quick Set, Top Loading |
| Included Feet | 2 |
| Throat Space | 10" |
| Number of Needles | 1 |
| Presser Foot Type | Snap On |
| Accessory Storage | No |
| Extension Table | No |
| Machine Weight Only | 28 lbs (12.4 kg) |
| Weight with Embroidery Unit | 36 lbs (16.2 kg) |
| Height | 11-7/32" (285mm) |
| Width (side to side) | 21-23/32" (552mm) |
| Depth (front to back) | 12-21/32" (310mm) |
