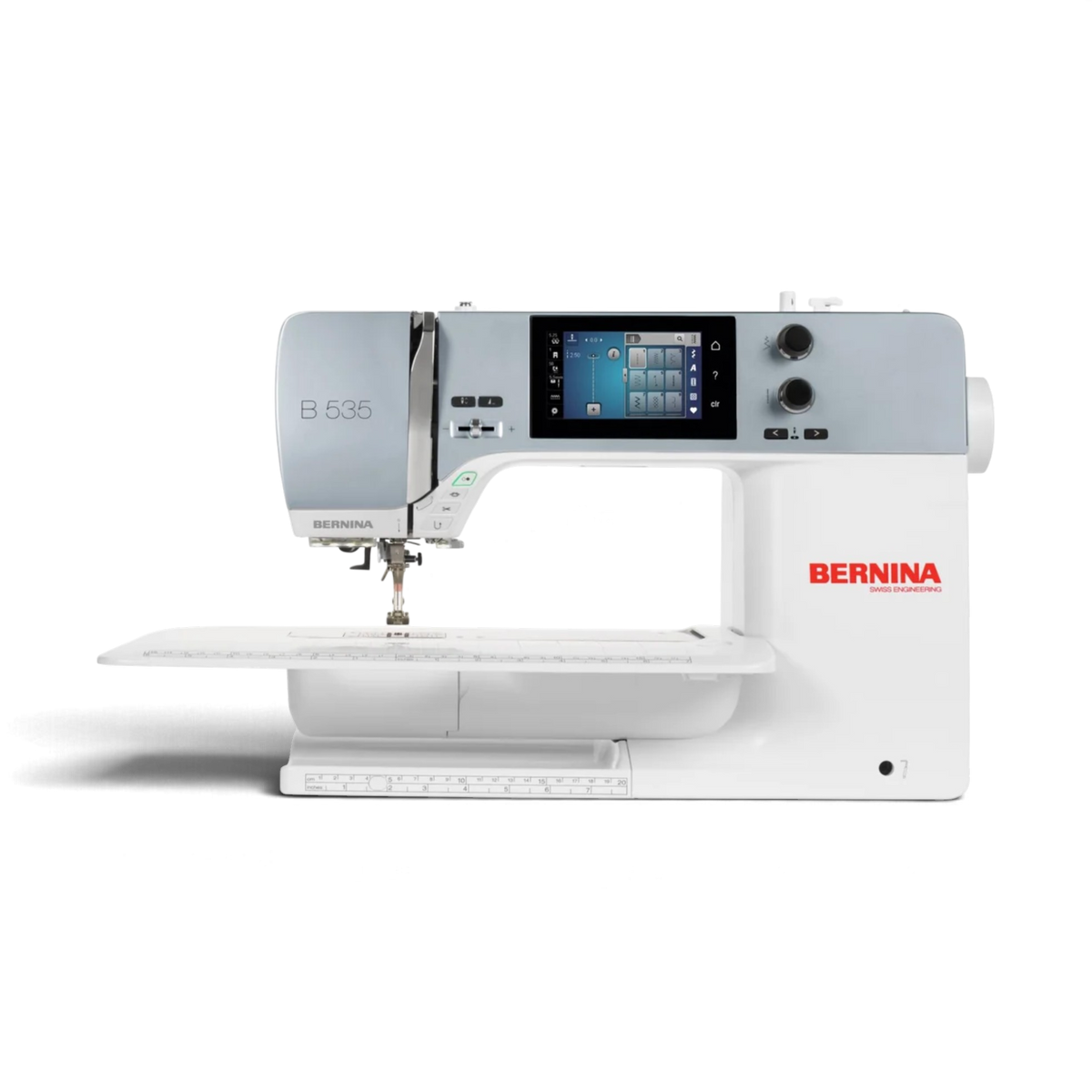

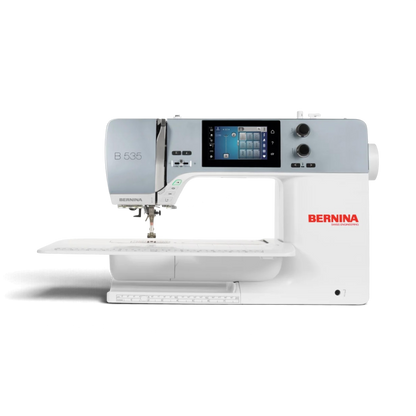

Bernina B535
Bernina B535
Couldn't load pickup availability
Not sure this is the right machine for you?
Take the Quiz →
Product Information
BERNINA
BERNINA
535
Bring legendary BERNINA stitch quality and high-speed performance to your studio with the BERNINA 535! Built for dressmakers, quilters, and embroidery artists, it pairs an 8.5" extended free arm with the BERNINA Hook system sewing up to 1,000 stitches per minute. A 4.3" color touchscreen with Sewing Consultant puts 1,048 stitch patterns at your fingertips, backed by adaptive thread tension, an automatic thread cutter, Jumbo Bobbins, BSR functionality, and optional embroidery module support.
Maintains consistent, quiet, and precise 5.5mm stitch formation at rapid speeds up to 1,000 stitches per minute with high-capacity Jumbo Bobbins.
Automatically fine-tunes and maintains optimal thread tension for immaculate stitch quality on both sides of the fabric.
Generous 215 mm free-arm clearance handles large creations smoothly, controlled via an intuitive touchscreen with on-screen Sewing Consultant help.
Pressing a button automatically trims upper and lower threads while raising the needle bar to save valuable time.
Adaptive Thread Tension System
Adaptive Thread Tension System
Achieve optimal thread tension automatically for flawless stitch execution on both top and bottom fabric surfaces. The BERNINA adaptive tension system continuously checks tension balance, allowing you to sew precisely without constant manual adjustments.

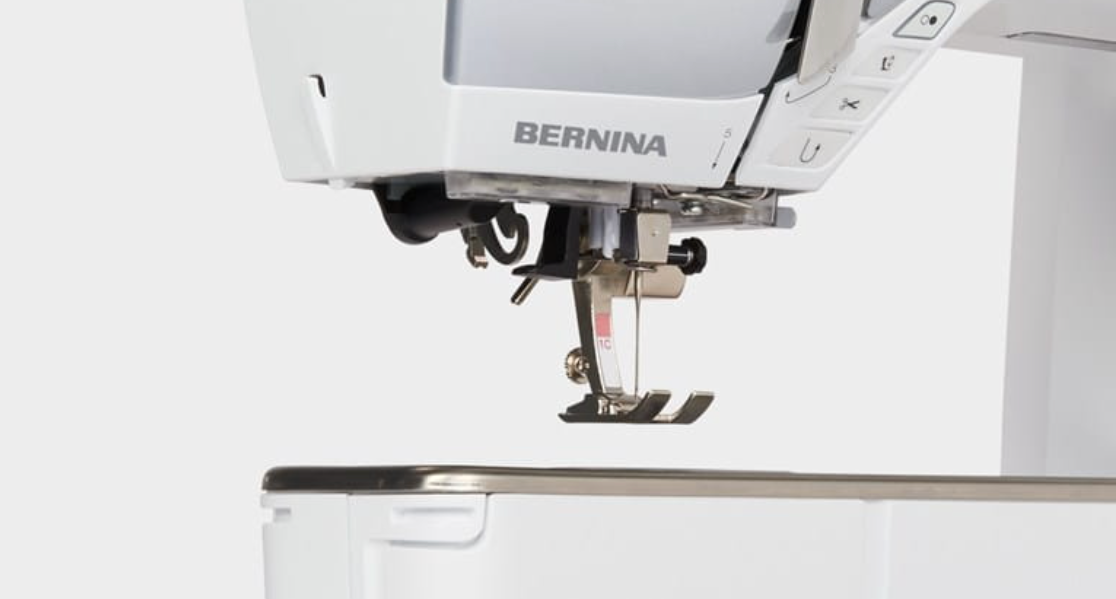

Extended 8.5" Free-Arm Workspace
Extended 8.5" Free-Arm Workspace
Handle bulky garments, large quilt sections, and home decor projects with complete comfort. Offering 8.5 inches (215 mm) of throat space to the right of the needle, the extended free-arm bed gives you plenty of room to guide large creations.

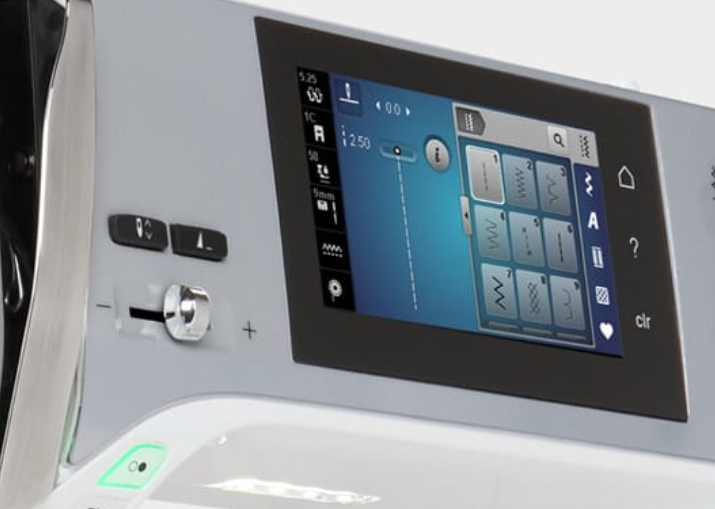

Modern 4.3" Full-Color Touchscreen & On-Screen Sewing Consultant
Modern 4.3" Full-Color Touchscreen & On-Screen Sewing Consultant
Navigate stitch options and machine settings cleanly using the bright 4.3" color touchscreen. Access the built-in Sewing Consultant for expert setting recommendations and quickly make fine modifications using the ergonomic multifunction knobs.

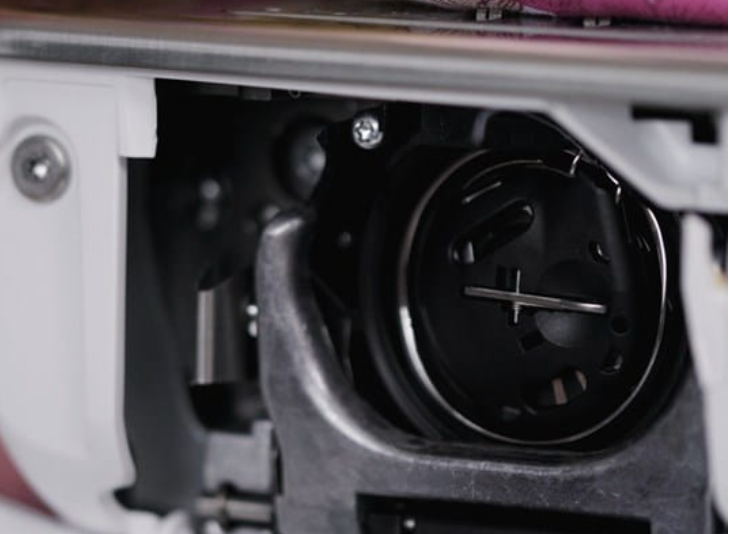

High-Precision BERNINA Hook & Jumbo Bobbin System
High-Precision BERNINA Hook & Jumbo Bobbin System
Experience quieter, faster, and longer-lasting stitching powered by the patented BERNINA Hook. Delivering perfect 5.5mm maximum stitch width at up to 1,000 stitches per minute, the front-loading Jumbo Bobbin holds up to 70% more thread for uninterrupted sewing.
Automatic Guillotine Thread Cutter
Automatic Guillotine Thread Cutter
Streamline your workflow and save time with single-touch thread trimming. Pressing the automatic thread cutter button engages an internal guillotine mechanism that trims both top and lower bobbin threads while automatically lifting the needle.
Key Features
- 1,048 Total Built-In Stitch Patterns: 30 utility stitches, 300 decorative stitches, 45 quilting stitches, 14 buttonholes/eyelets, and 5 sewing alphabets.
- High-Speed 1,000 SPM Motor: Rapid stitching motor supported by an ultra-stable BERNINA Hook system.
- 8.5" (215 mm) Extended Free-Arm Area: Generous workspace clearance to the right of the needle with 109 mm workspace height.
- 4.3" Color LCD Touchscreen: High-resolution touch interface with on-screen tutorial, help menu, and Sewing Consultant.
- Precision 5.5mm Maximum Stitch Width: Precise 5.5mm stitch width with 11 micro-stepping needle positions.
- Adaptive Thread Tension Control: Continuous automatic tension regulation for perfectly balanced stitch formation.
- Front-Loading Jumbo Bobbin System: Holds up to 70% more thread than standard bobbins, windable while sewing/embroidering.
- One-Touch Automatic Thread Cutter: Motorized guillotine cutter trims threads and raises needle automatically.
- BERNINA Stitch Regulator (BSR) Functionality: Ready for BSR foot integration for regulated free-motion quilting.
- Multifunction Rotary Knobs: Twin dial controllers for quick parameter fine-tuning and stitch modifications.
- BERNINA Free Hand System (FHS): Ergonomic knee lifter capability to raise/lower presser foot hands-free.
- Integrated USB Port & 256 MB Memory: Import/export stitch designs and software updates via USB flash drive.
- Adjustable Presser Foot Pressure & Speed Control: Adjust downward foot pressure across 12 levels alongside a slide speed regulator.
Included Accessories
- Free-Arm Bed Extension & Ergonomic Drive Hardware: BERNINA Free-Arm Slide-On Extension Table, BERNINA Free Hand System (FHS) Knee Lifter Bar, BERNINA Control Pedal with Back-Kick Function, Power Line Cable.
- Spool & Thread Support Hardware: 4 x Jumbo Bobbins (1 in machine + 3 in accessory case), 3 x Thread Guide Washers, 2 x Spongy Bases.
- Maintenance Tools, Protection & Storage: Height Leveling Tool for thick seams, Magnetic Accessory Storage Box, Buttonhole Cutter / Seam Ripper, Assortment of Needles, Red Screwdriver, Cleaning Brush, Protective Dust Cover.
Included Presser Feet
- Reverse Pattern Foot #1
- Overlock Foot #2/2A
- Buttonhole Foot with Slide #3A
- Zipper Foot #4
- Open Embroidery Foot #20
BERNINA
BERNINA 535 — Full Details
| General Specifications | |
| Machine Type | High-Performance Computerized Sewing & Embroidery Machine |
| Workspace Dimensions | 8.5" (215 mm) Sewing Space to Right of Needle / 109 mm Workspace Height |
| Machine Dimensions & Weight | 461 x 200 x 327.5 mm / 11 kg Machine Weight |
| Maximum Operational Speed | 1,000 Stitches Per Minute (SPM) Sewing & Embroidery Speed |
| Display & Navigation | 4.3" (10 cm) Color LCD Touchscreen with Multifunction Rotary Knobs |
| Internal Memory & Port | 256 MB Total Internal Memory with USB Memory Port |
| Hook System & Bobbin | BERNINA Shuttle Hook System with Front-Loading Jumbo Bobbin |
| Lighting System | 12-LED Workspace Illumination Array |
| Sewing & Embroidery Specifications | |
| Built-In Sewing Library | 1,048 Total Stitches (30 Utility, 300 Decorative, 45 Quilting, 14 Buttonholes, 5 Alphabets) |
| Stitch Parameters | 5.5 mm Maximum Stitch Width / 6.0 mm Maximum Stitch Length / 11 Needle Positions |
| Embroidery Specifications (Optional Module) | 400 x 150 mm Max Embroidery Area, 50 Designs, 4 Alphabets |
| Supported Embroidery Formats | EXP, DST, PES, PEC, JEF, SEW, PCS, XXX |
| Fabric Feeding & Tension | Adaptive Thread Tension Control & Adjustable Presser Foot Pressure |
| Automation & Controls | Automatic Thread Cutter, Automatic Needle Threader, Start/Stop Button, Speed Regulator |
| Hands-Free & BSR Control | BERNINA Free Hand System (FHS) Knee Lifter & BSR Functionality Compatible |
Bernina Warranty Coverage
Bernina is the gold standard in home sewing machines. Their warranty coverage is built to match a machine designed to last generations.
- Mechanical Parts — 20-year limited warranty
- Printed Circuit Boards — 5-year warranty
- Electrical Parts — 2-year warranty
Bernina’s warranty covers defects in materials and workmanship for the original purchaser. Mechanical parts are covered for 20 years, circuit boards for 5 years, and electrical parts for 2 years. Important: warranty coverage is limited to the cost of the affected part only — labor charges are not included. All shipping costs to and from the dealer or designated service point are the purchaser’s responsibility. The warranty must be registered via the Bernina Customer Portal within 30 days of purchase, or countersigned by an authorized Bernina dealer within 90 days — otherwise coverage is void. Original proof of purchase required for all service.
Your Bernina warranty is valid at any authorized Bernina dealer — return your machine to an authorized location for all repairs and replacements.
