Hoop Frame

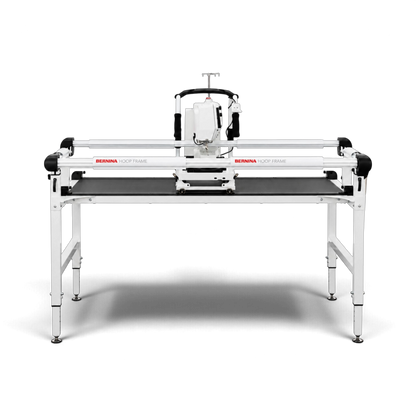

Bridge the gap between domestic and longarm quilting with the BERNINA Hoop Frame! It works with BERNINA Q16, Q16 PLUS, and Q20 longarms and with domestic sewing machines of any brand with an approx. 10" throat. In a compact 5’10" × 3’3" footprint, it offers 44" of horizontal quiltable space, 13 leg positions for a 32"–45" working height, ratchet front-rail tensioning, and leveling feet for a rock-solid setup.
Works with BERNINA Q16, Q16 PLUS, and Q20 longarms and any-brand sewing machines with a ~10" throat.
Set your exact working height from 32" to 45" for comfortable, fatigue-free quilting.
A simple lever engages and releases tension, keeping the quilt sandwich firmly and evenly held.
Room for everything from lap quilts to large bed quilts, with consistent stitch quality.

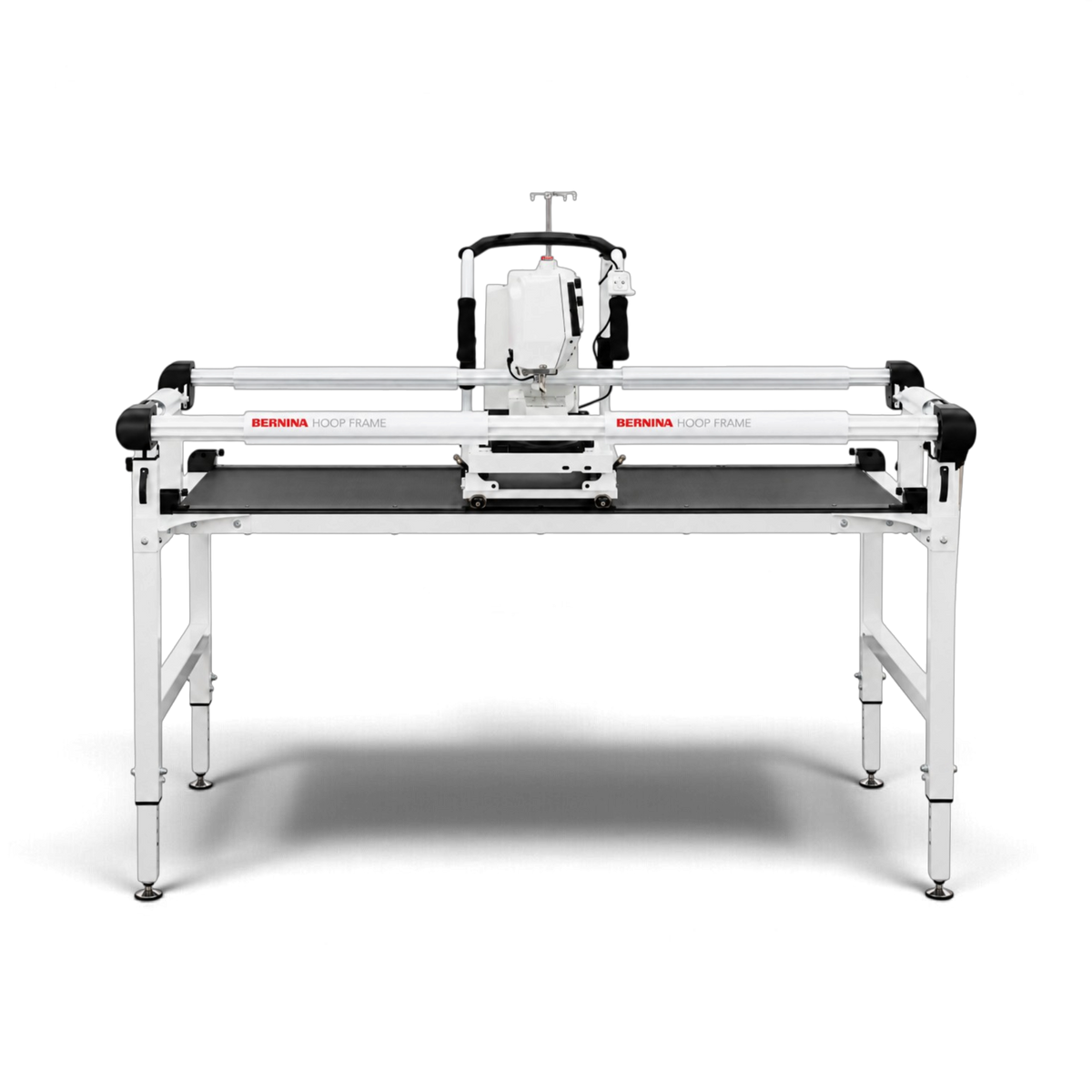

Compact, Versatile, and Space-Smart — The 5-Foot BERNINA Hoop Frame
Compact, Versatile, and Space-Smart — The 5-Foot BERNINA Hoop Frame
The 5-foot BERNINA Hoop Frame is designed for minimal space requirements and is compatible with all brands of domestic sewing machines (recommended throat space 10" / 25 cm) as well as the BERNINA longarm machines Q 20, Q 16 and Q 16 PLUS. The frame features optimal gripping during hooping.

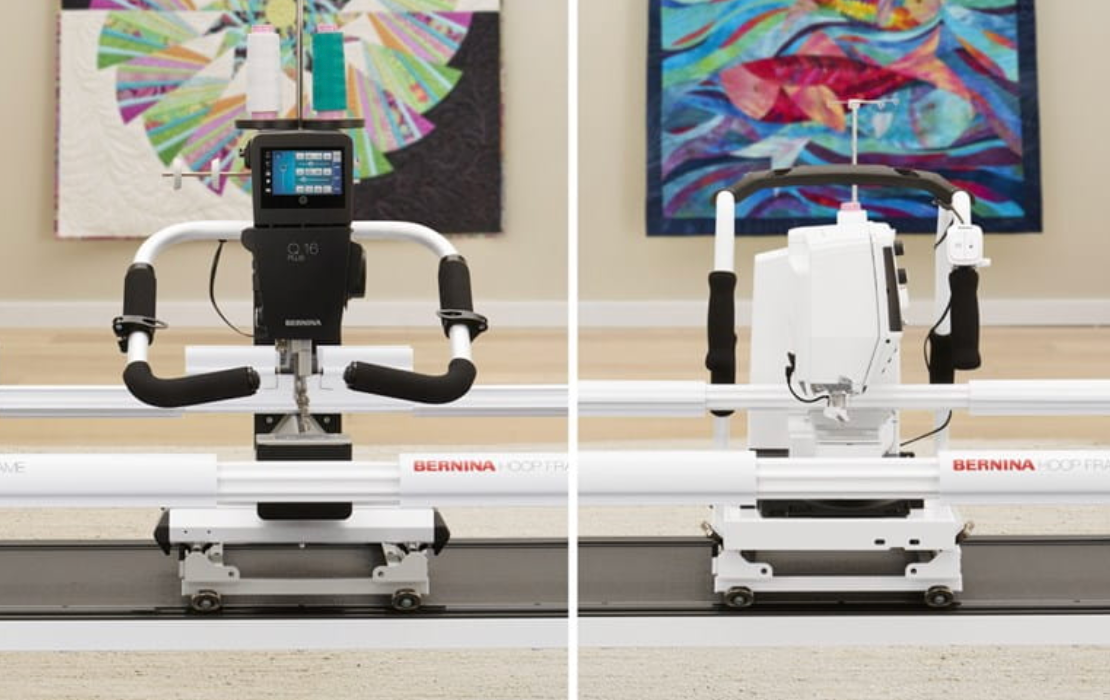

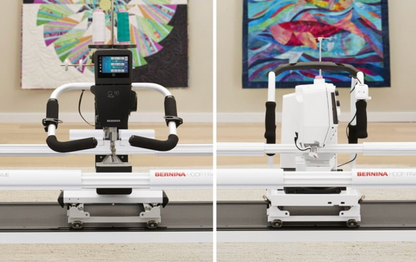

Available in Two Styles
Available in Two Styles
Transform your Hoop Frame to use with a domestic sewing machine or a BERNINA Q 20, Q 16 / Q 16 PLUS by simply changing the carriage and coordinating accessories. Each system comes with everything you need. Q 16 / Q 16 PLUS / Q 20: Q Series frame carriage with front handles and trough clamps. Domestic sewing machines: Special carriage with integrated handles and clamps with bungee straps.

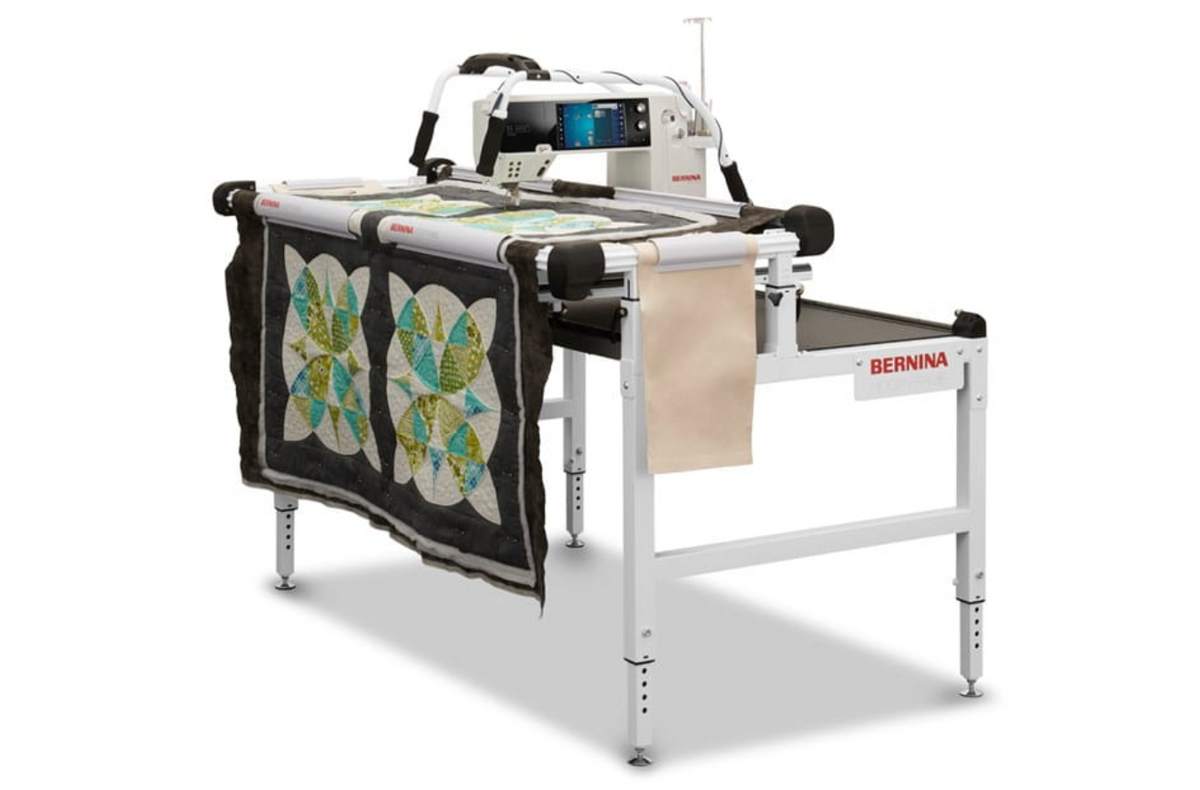

Generous Quilting Space in a Compact 5-Foot Footprint
Generous Quilting Space in a Compact 5-Foot Footprint
The BERNINA Hoop Frame measures 5’10" × 3’3" (1.78 m × 1.01 m) with an adjustable working height from 32"–45" (0.81–1.14 m) — and accommodates unlimited quilt sizes. Quiltable vertical space reaches 11.5" (29 cm) with the Q 16 / Q 16 PLUS and 14" (35.5 cm) with the Q 20.
Key Features

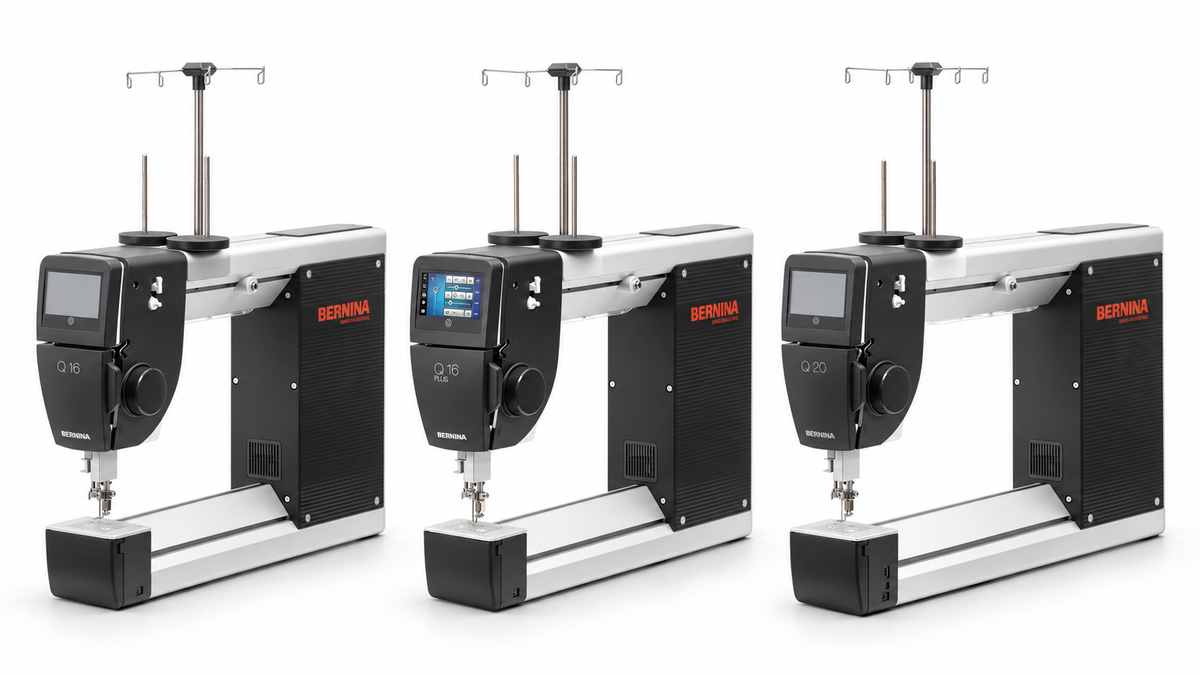

- Compatible with BERNINA Longarm Machines (Q16, Q16 PLUS & Q20): Precision-engineered to integrate with the full BERNINA Q16, Q16 PLUS, and Q20 longarm machine family — including the dedicated longarm carriage, stand profiles, and vibration kit.
- Compatible with Domestic Sewing Machines (Any Brand, ~10"/25 cm Throat): The domestic sewing machine version accommodates virtually any sewing machine with an approx. 10-inch (25 cm) throat, secured to the carriage with four machine clamps and supported by a bottom plate for stability.
- 13-Position Adjustable Leg Height (32–45"): 13 setting holes on the legs let you set the precise working height from 32 to 45 inches, calibrated to elbow-to-floor distance for a comfortable, fatigue-free quilting posture.
- Ratchet Front Rail Tensioning: The front rail features a ratchet lever system — engage to tension the front of the quilt, press the lever to release — ensuring firm, even hold across the full width of the quilt sandwich.
- Four Corner Stoppers Define Quiltable Space: Four adjustable corner stoppers mark the exact boundaries of the quiltable area, keeping the machine perfectly positioned within the quilting zone at all times.
- Adjustable Take-Up Rail: The take-up rail holds completed sections of the quilt flat and under controlled tension, with height adjustment to suit different quilt thicknesses and machine setups.
- Side Rails with Guide Rail System: Left and right side rails with an integrated guide rail system ensure smooth, accurate lateral fabric movement and consistent alignment from start to finish.
- Vibration Kit Included (Longarm Version): The longarm version includes a vibration kit — comprising a damping mat and vibration carrier on the front and back stand profiles — for smooth, rattle-free operation at all quilting speeds.
- Adjustable-Width Front Handles (Longarm Version): A single adjustable front handle (Q Series) can be set to the preferred width and angle via locking levers for comfortable, precise machine steering directly from the front of the frame.
- Dual Front Handles (Sewing Machine Version): The domestic machine version includes two front handles plus one handle with an accessory bracket, giving full control of the machine carriage from multiple grip positions.
- Start/Stop Unit Included (Sewing Machine Version): The domestic version includes a start/stop unit that mounts to the frame, enabling foot-control-free operation — ideal for extended free-motion quilting sessions.
- Leveling Feet for Perfect Horizontal Alignment: Adjustable leveling feet ensure the frame sits perfectly level on any floor surface, eliminating tilt that could affect fabric tension or stitch consistency.
- Compact, Fixed Frame Dimensions: At 5’10" × 3’3" (1.78 × 1.01 m), the Hoop Frame offers a substantial quiltable surface in a footprint compact enough for most home studios.
Included Accessories
- Frame Base Components (Both Versions): Legs ×2, Side rails ×2, Bracings ×4, Corner stoppers ×4, Allen keys, wrenches, and assembly hardware.
- Hoop Frame Rails (Both Versions): Tabletop, Take-up rail, Front rail.
- Longarm Carriage Kit (Q16, Q16 PLUS & Q20 Version)*: Carriage incl. machine stopper, Front stand profile, Back stand profile, Vibration kit, Handle ×1, Lever lock ×2, Side leader ×2, Border strip ×1, Trough clamp for take-up rail ×3, Intermediate clamp for take-up rail ×2, Fabric clamp for side rail ×2, Fabric clamp for front rail ×3.
- Domestic Sewing Machine Carriage Kit (Sewing Machine Version)*: Carriage incl. machine stopper, Bottom plate, Handle ×2, Handle with accessory bracket ×1, Machine clamp ×4, Lever lock ×2, Start/stop unit ×1, Side leader ×2, Border strip ×1, Bungee strap for take-up rail ×4, Fabric clamp for take-up rail ×4, Fabric clamp for side rail ×2, Fabric clamp for front rail ×3.
* Carriage kit included depends on the version purchased (Longarm or Sewing Machine).
BERNINA
BERNINA Hoop Frame — Full Details
| General Specifications | |
| Product Type | Universal Quilting Frame — Longarm & Sewing Machine Compatible |
| Compatible Longarm Machines | BERNINA Q16, Q16 PLUS & Q20 |
| Compatible Sewing Machines | Any brand with approx. 10" (25 cm) throat depth |
| Frame Dimensions | 5’10" × 3’3" (1.78 × 1.01 m) |
| Adjustable Working Height | 32"–45" (0.81–1.14 m) — 13-Position Adjustable Legs |
| Horizontal Quiltable Space | 44" (1.11 m) |
| Vertical Quiltable Space (Longarm) | 11.5" (29 cm) for Q16 & Q16 PLUS | 14" (35.5 cm) for Q20 |
| Maximum Quilting Size | Unlimited |
| Tensioning System | Ratchet Front Rail Tensioning (Engage/Release Lever) |
| Vibration Reduction | Vibration Kit Included — Longarm Version (Damping Mat & Vibration Carrier) |
| Start/Stop Control | Start/Stop Unit Included — Sewing Machine Version (Foot-Control-Free Operation) |
| Frame Specifications | |
| Leg Height Settings | 13 positions — Working Height Range: 32"–45" (0.81–1.14 m) |
| Rail System | Front Rail (Ratchet Tensioning), Take-Up Rail (Adjustable Height), Side Rails ×2 (Guide Rail System) |
| Quilt Zone Definition | 4 Adjustable Corner Stoppers |
| Carriage System | Longarm Carriage (Q16–Q20) | Domestic Machine Carriage (Sewing Machine Version) |
| Leveling | Adjustable Leveling Feet for Precise Horizontal Alignment |
