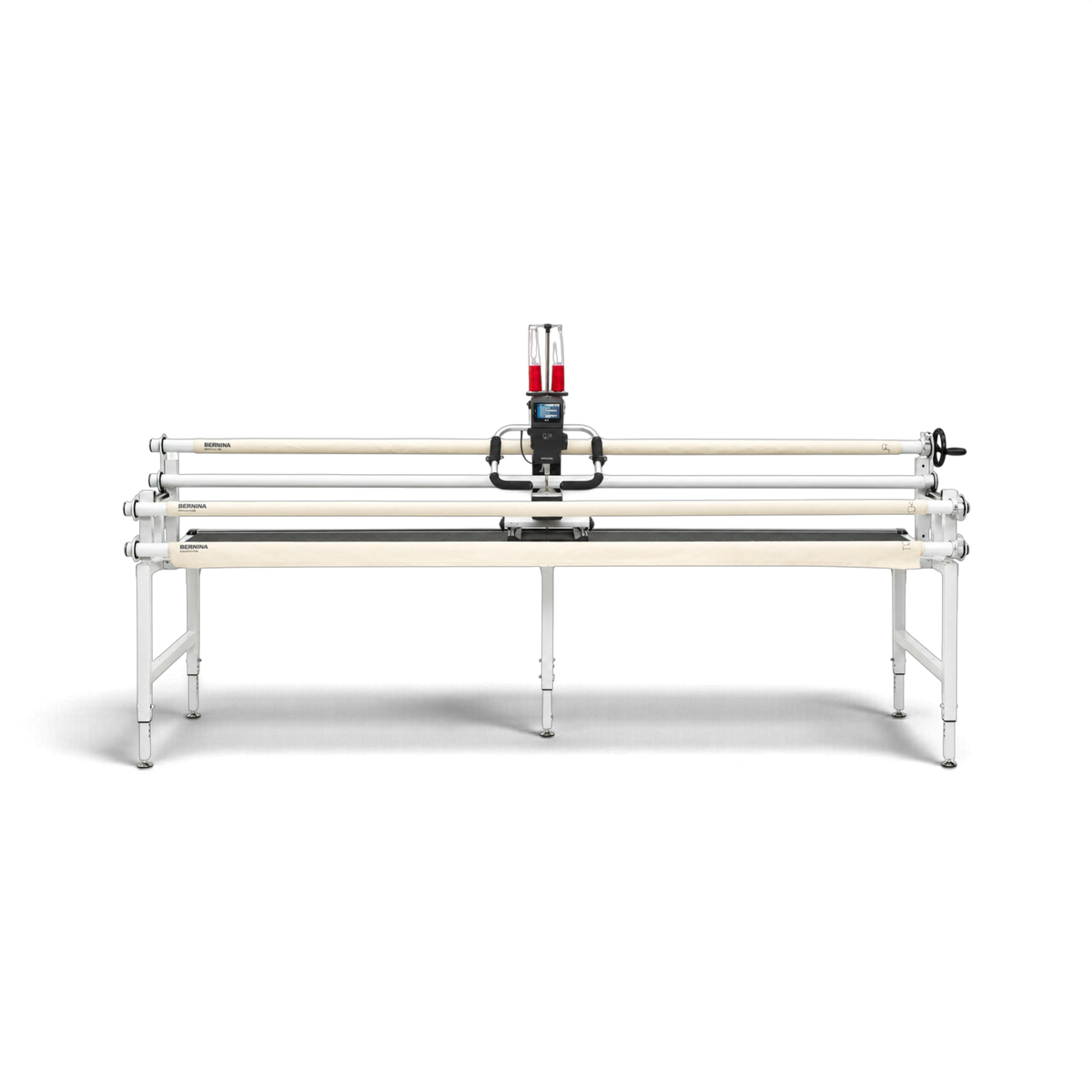

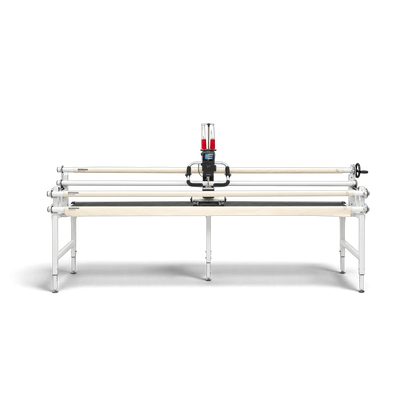

Bernina Studio Frame
Bernina Studio Frame
Couldn't load pickup availability
Not sure this is the right machine for you?
Take the Quiz →
Product Information
BERNINA
BERNINA
Studio Frame
Quilt bigger, create smarter with the BERNINA Studio Frame! Designed for BERNINA Q16, Q16 Plus, and Q20 longarms, this modular frame starts compact at 5 feet (5’10") and expands to a full 10 feet (10’11") for quilts up to 104 inches. A dual-track carriage moves smoothly in every direction, ratchet tensioning keeps each layer taut, and leveling feet adjust the working height from 35" to 44" — with optional Q-matic automation for edge-to-edge quilting.
Start compact at 5 feet and expand to 10 feet any time with the optional extension set.
Precision-built to pair seamlessly with BERNINA Q16, Q16 Plus, and Q20 longarm machines.
The full 10-foot frame gives you room for quilts up to 104 inches wide.
Leveling feet let you set the perfect ergonomic height for long, comfortable quilting sessions.

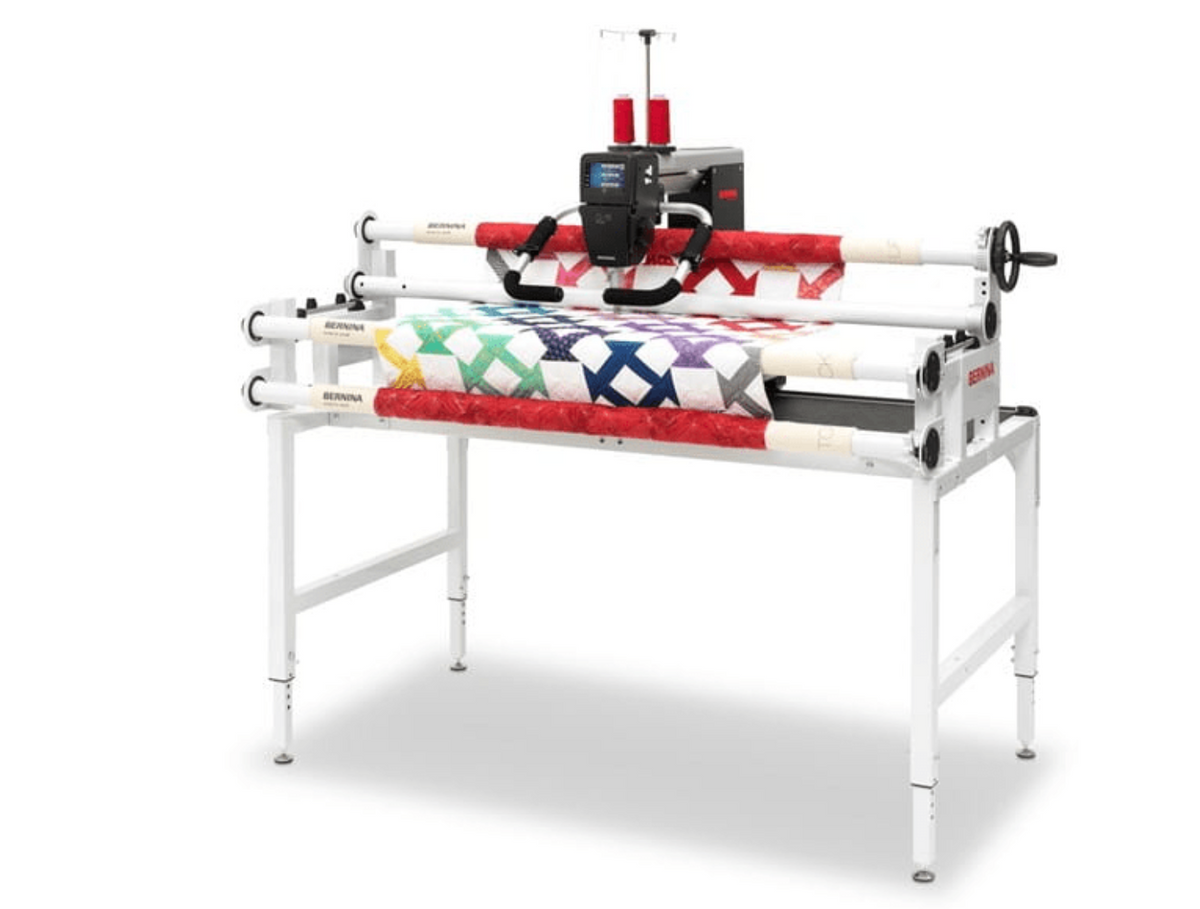

The Modular Frame: From 5 Feet to 10 Feet
The Modular Frame: From 5 Feet to 10 Feet
Sometimes your quilting dreams are bigger than the space you have. The BERNINA Studio Frame is a modular frame and can be mounted as small as 5 ft or to its full size of 10 ft. The 5-ft frame can be easily extended to a 10-ft with the 5-ft extension set — spacious enough for your biggest projects and sturdy enough for every stitch.

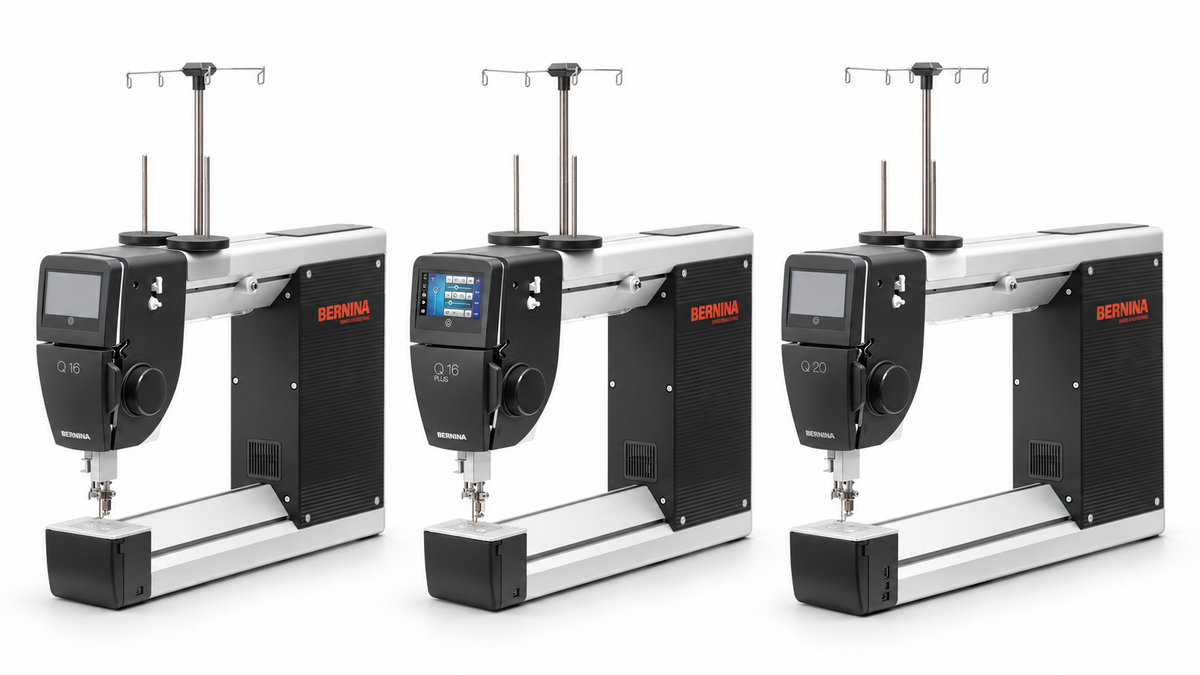

Engineered for BERNINA Q16, Q16 Plus & Q20
Engineered for BERNINA Q16, Q16 Plus & Q20
The BERNINA Studio Frame is precision-engineered specifically for the BERNINA Q16, Q16 Plus, and Q20 longarm machines — ensuring seamless integration, optimized carriage movement, and consistent stitch quality from the very first session.

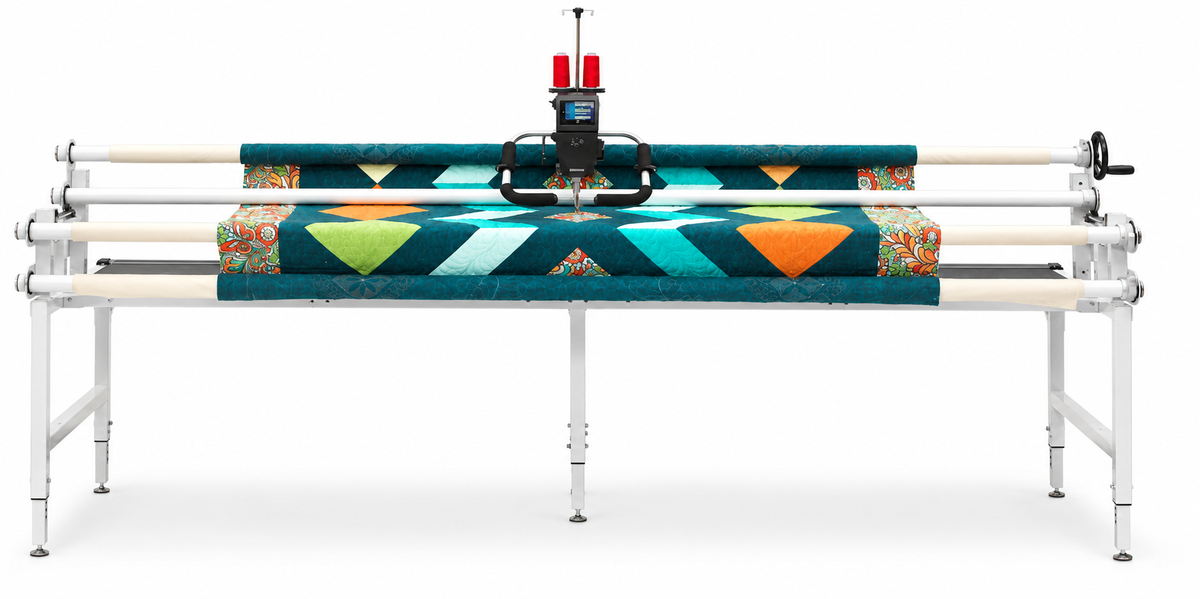

Supports Quilts Up to 104 Inches on the 10-Foot Setup
Supports Quilts Up to 104 Inches on the 10-Foot Setup
With the Studio Frame fully extended to 10 feet, quilters can tackle their largest projects with ease — supporting quilt widths up to 104 inches with the same stability and precision as any smaller project.

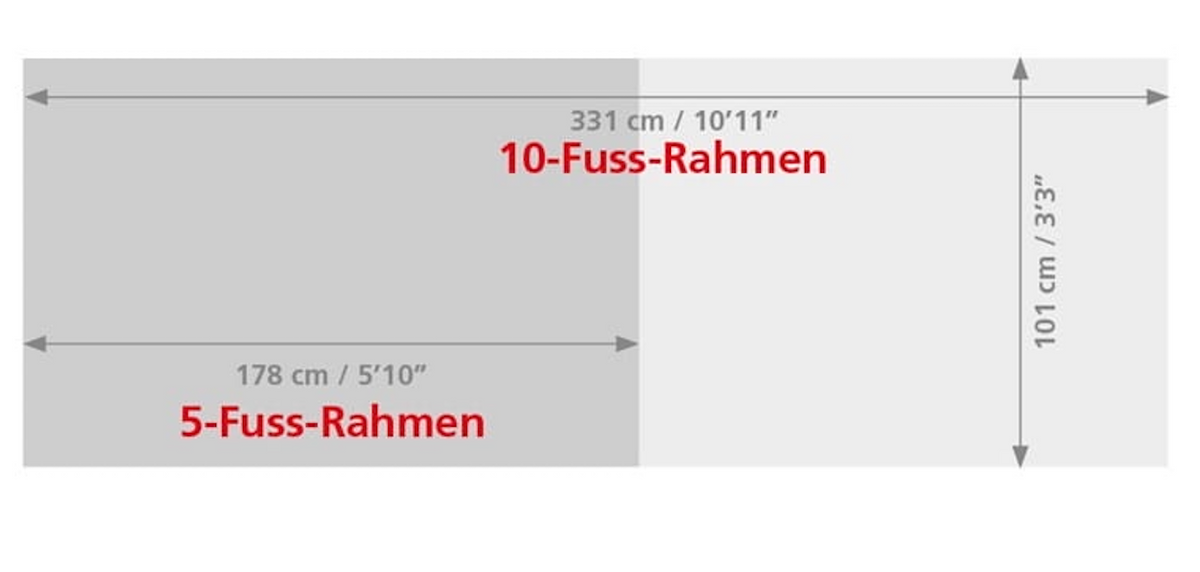

Room-Adaptive Dimensions & Adjustable Working Height
Room-Adaptive Dimensions & Adjustable Working Height
The Studio Frame measures 10’11" (10-ft) or 5’10" (5-ft) in length and 3’3" in width, with a working height adjustable from 35" to 44" via leveling feet — adapting perfectly to any studio space and any quilter’s preferred height.
Key Features
- Modular 5-Foot & 10-Foot Frame Configurations: 5-foot setup (5’10" × 3’3") ideal for compact studios; expandable to the full 10-foot setup (10’11" × 3’3") using the optional extension set.
- Compatible with BERNINA Q16, Q16 Plus & Q20 Longarm Machines: Precision-engineered exclusively for BERNINA Q16, Q16 Plus, and Q20 for seamless machine integration and optimized quilting performance at any speed.
- Dual-Track Carriage System: A lightweight, high-precision carriage runs on dual tracks for smooth, effortless movement of the longarm machine in all directions with consistent accuracy.
- Mechanical Advance Crank (Handwheel): An easy-to-use manual handwheel crank system allows quick, precise, and even advancing of the quilt layers for perfectly controlled quilt-loading at every stage.
- Ergonomic Front Handles: Front-facing handles provide comfortable, precise steering and full control directly from the front of the frame — ideal for free-motion quilting at any speed.
- Four-Rail System (Top, Backing, Idler & Take-Up Rails): The frame features a full four-rail system — top rail, backing rail, idler rail, and take-up rail — with ratchet wheels on the take-up, backing, and top rails for independent tension control of every quilt layer.
- Ratchet Wheel Tensioning on All Three Active Rails: Individual ratchet wheels on the take-up, backing, and top rails let quilters dial in perfect tension for each layer of the quilt sandwich independently.
- 4 Bungee Cords for Precise Quilt Alignment: Four included bungee cords keep every quilt perfectly squared and aligned before quilting begins, eliminating skew and ensuring an even, professional result.
- Vibration-Eliminating Rigid Frame Construction: An ultra-sturdy, rigid frame structure eliminates vibration during high-speed quilting, maintaining perfect stitch quality and smooth machine movement throughout.
- Adjustable Leveling Feet for Stable Setup on Any Floor: Adjustable leveling feet set the working height from 35"–44" (0.89–1.12 m) and ensure the frame sits perfectly level on any floor surface.
- Q-matic Automation System Compatible: Engineered to integrate with the optional BERNINA Q-matic automated quilting system for fully computerized, edge-to-edge quilting on any design.
- Spacious Tabletop Work Surface: A generous tabletop surface alongside the machine carriage provides ample workspace for tools, patterns, and accessories during every quilting session.
Compatible Accessories
- Precision Quilting Tools: Precision Ruler Guide PRO (for perfectly accurate straight lines and ruler work), Pantograph Kit (everything needed for easy edge-to-edge quilting designs), Rulerwork Kit (wide range of rulers for straight quilting and specialty shapes), Ruler Kit for Frame Models (BERNINA ruler kits designed specifically for frame use).
- Frame Mobility & Storage: Frame Casters (for easy repositioning and moving of the Studio Frame), Hydraulic Lift (one-touch height adjustment for effortless ergonomic control), Additional Shelving (extra storage underneath the frame for tools and supplies).
- Ergonomic & Control Tools: Palm Precision Handles (mounted to the machine head for comfortable, controlled micro-stippling and fine detail work), Mechanical Channel Locks (mounted to the frame and carriage for straighter, more precise quilting lines on any project).
- Leader & Batting Management: Batting Rail (dedicated rail for convenient batting storage on the frame), Batting Roll Holder (holds batting rolls directly on the frame for easy access), Leaders (standard leaders for quilt attachment and alignment), Zippered Leaders (pin or baste to the removed leader edge for easy project switching), Zippered Leaders — Supplementary Kit (additional zipper parts for take-up, back & top rails).
BERNINA
BERNINA Studio Frame — Full Details
| General Specifications | |
| Product Type | Modular Longarm Quilting Frame System |
| Compatible Longarm Machines | BERNINA Q16, Q16 Plus & Q20 |
| Available Configurations | 5-Foot Frame | 10-Foot Frame (expandable from 5-ft using optional extension set) |
| Frame Width (Depth) | 3’3" (approx. 99 cm) — Fixed on Both Configurations |
| Maximum Quilt Capacity | Up to 104" — 10-Foot Setup |
| Adjustable Working Height | 35"–44" (0.89–1.12 m) — Via Adjustable Leveling Feet |
| Quilting Automation | Optional Q-matic Longarm Quilting Automation System Compatible |
| Frame Size Specifications | |
| 10-Foot Frame | Length × Width: 10’11" × 3’3" (3.3 × 1 m) | Height: 35"–44" (0.89–1.12 m) | Leader Width: 114" (2.89 m) | Max Quilt: ~104" |
| 5-Foot Frame | Length × Width: 5’10" × 3’3" (1.8 × 1 m) | Height: 35"–44" (0.89–1.12 m) | Leader Width: 52" (1.32 m) |
| Carriage System | Dual-Track, Lightweight, High-Precision Carriage for Smooth Sewhead Movement in All Directions |
| Quilt Advance System | Mechanical Advance Crank (Handwheel) — Quick, Precise, Even Quilt Layer Advancement |
| Rail System | Top Rail, Backing Rail, Idler Rail & Take-Up Rail; Individual Ratchet Wheel Tensioning on Take-Up, Backing & Top Rails |
| Alignment System | 4 Bungee Cords for Quilt Alignment; Adjustable Leveling Feet for Perfect Frame Leveling |
Bernina Warranty Coverage
Bernina is the gold standard in home sewing machines. Their warranty coverage is built to match a machine designed to last generations.
- Mechanical Parts — 20-year limited warranty
- Printed Circuit Boards — 5-year warranty
- Electrical Parts — 2-year warranty
Bernina’s warranty covers defects in materials and workmanship for the original purchaser. Mechanical parts are covered for 20 years, circuit boards for 5 years, and electrical parts for 2 years. Important: warranty coverage is limited to the cost of the affected part only — labor charges are not included. All shipping costs to and from the dealer or designated service point are the purchaser’s responsibility. The warranty must be registered via the Bernina Customer Portal within 30 days of purchase, or countersigned by an authorized Bernina dealer within 90 days — otherwise coverage is void. Original proof of purchase required for all service.
Your Bernina warranty is valid at any authorized Bernina dealer — return your machine to an authorized location for all repairs and replacements.
