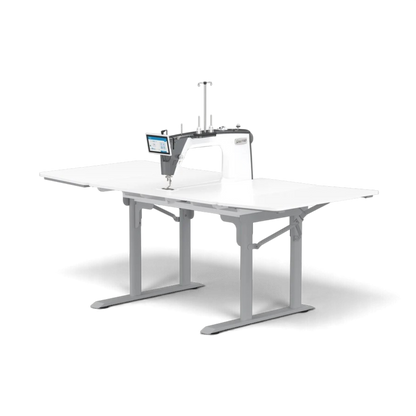

Grace 19SD Sit-Down Longarm Quilting Machine
Grace 19SD Sit-Down Longarm Quilting Machine
Couldn't load pickup availability
Not sure this is the right machine for you?
Take the Quiz →
Product Information
Grace
19SD
Master comfortable, seated free-motion quilting with the Grace 19SD Sit-Down Longarm Quilting Machine! Engineered for quilters who desire longarm throat capacity without committing immediately to a large stand-up frame, the 19SD features a generous 19-inch throat space and Grace's largest 7-inch full-color touchscreen with built-in help guides. Complete with optical stitch regulation across Precise, Cruise, and Manual modes, a built-in independent bobbin winder, a repositionable hopping foot, an easy-access M-class bobbin housing, and an expandable 77.5" sit-down table, the Grace 19SD delivers uncompromised control today while offering the flexibility to upgrade to a frame-mounted setup in the future.
Grace's largest 7-inch touchscreen panel with intuitive navigation, brightness controls, alarm muting, firmware updates, and step-by-step on-screen guidance.
An expansive 19-inch arm clearance provides maximum room for large block motifs and king-size quilts, preventing fabric bunching during seated quilting.
Start quilting comfortably in a seated configuration now with the freedom to convert to a traditional frame-mounted longarm machine later.
Measures 77.5" wide fully extended with two 21.4" drop-down side leaves, collapsing to a compact 34.75" square footprint.

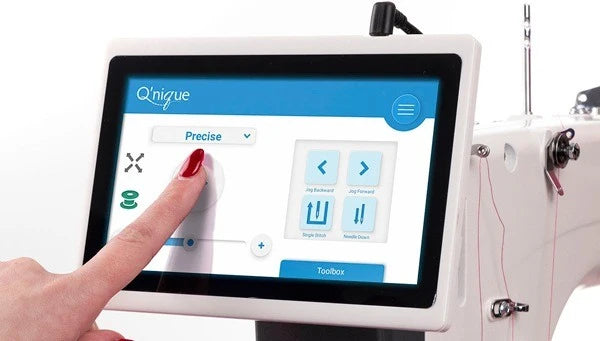

Grace's Biggest Screen Yet
Full-Color 7" Touchscreen
On the 19SD, you get Grace's biggest screen yet! At a full 7", you will easily be able to navigate through all the features your machine has to offer. You can adjust the brightness of your screen, mute certain alarms, and even find what version of firmware and when it was last updated. This full-color display also includes on-screen help guides and instructions like how to thread the machine.

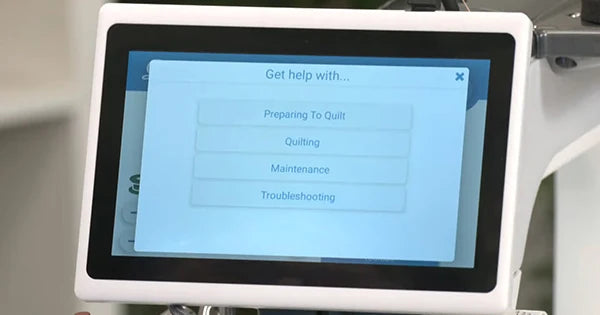

Support at Your Fingertips
Built-in Help
The Grace 19SD makes support feel close at hand with built-in help right on the touchscreen, giving quilters quick guidance without stopping to search through a manual. From preparing to quilt to everyday tasks like threading the machine, choosing the correct needle, winding a bobbin, and loading a bobbin, the on-screen help walks you through key steps in a clear, approachable way. Maintenance and troubleshooting sections are also included, helping you keep the machine running smoothly and confidently solve common issues as they come up.

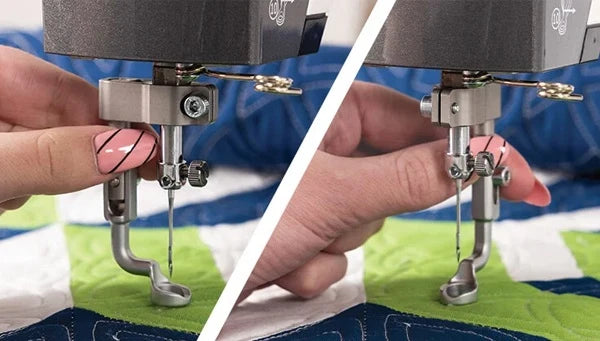

Optimum Visibility
Repositionable Hopping Foot
The hopping foot on the 19SD was designed with optimum visibility in mind. Depending on preference and what you are quilting, you can easily switch the foot to the left, right, or back of the needle. You can also adjust the height of your foot. When quilting with thick fabric or batting layers, the hopping foot may press down on the quilt too tightly and begin to drag. Alternatively, having the hopping foot too high can result in skipped stitches.
Room to Create

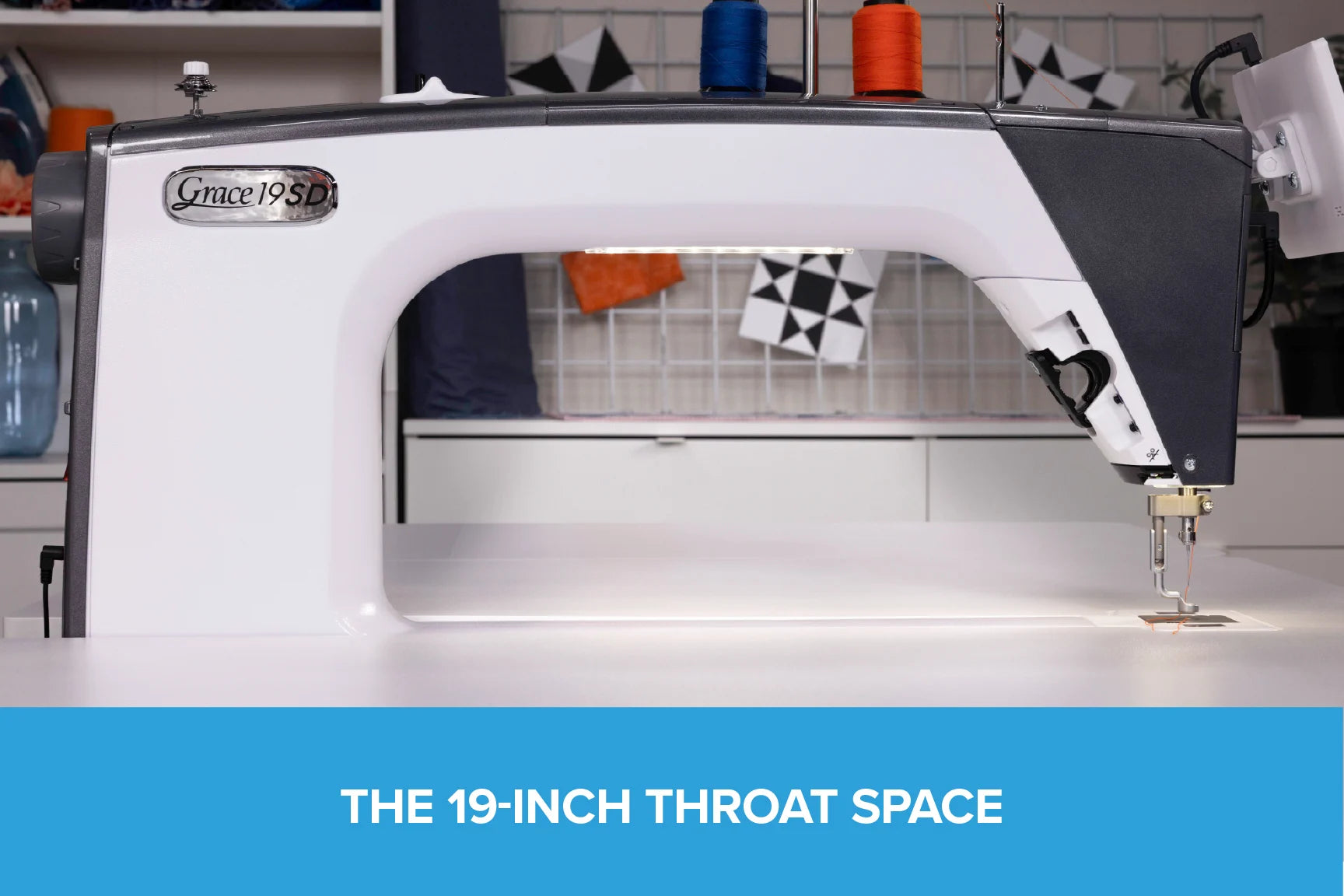

19" Throat Space
Stop struggling to quilt those queen and king-size quilts on a domestic machine and instead upgrade to a machine that tackles large projects with ease. With a full 19" of throat space, you can expect to complete large sections of your quilt quicker than before, and best of all, you won't have your fabric getting bunched up under the throat. Quilts with big blocks tend to make a more significant visual impact, which is now easier than ever with Grace's Sit Down Quilting Machine!

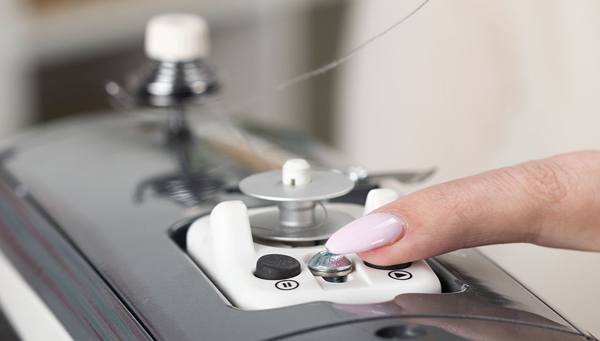

Wind While You Quilt
Built-In Automatic Bobbin Winder
Unlike other long and midarm machines, the 19SD has a built-in bobbin winder to wind your large M-Style bobbins quickly. The machine's bobbin cam is set so the bobbin will wind completely before the winder shuts off. Since the bobbin winder works independently of the machine, you can wind your bobbin while you're quilting. For best results when winding a bobbin, Grace recommends 50-weight polyester thread on a cone.

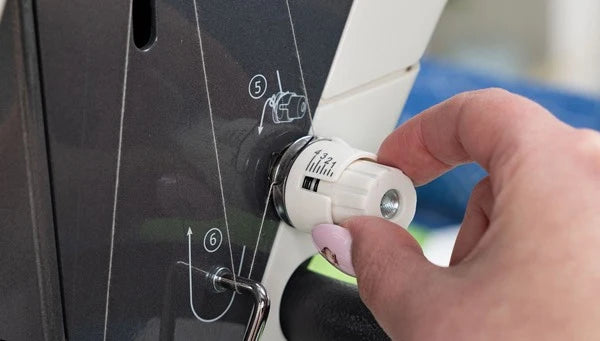

Dial It In
Easy Tension Adjustments
Fully manual stitch settings allow you to have control of your stitches. The setting dial is easily adjusted to create a perfectly balanced stitch based on your fabric type and weight. Ranging from one to four on the knob, these lines allow quilters to dial in their tension settings incrementally. If the bobbin thread appears on the right side of your fabric, then the needle tension is too tight, and if your needle thread is too loose, it will appear on the wrong side of the material.
Three Ways to Stitch

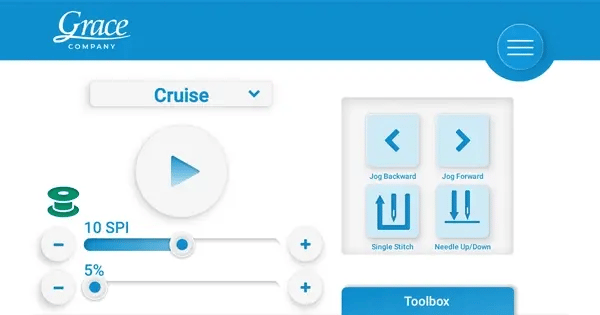

Stitch Modes
Precise - In the default precise mode, you select the stitch length you want, and the machine will adjust to help make more consistent stitches. It only stitches when you move the machine, which aids with patterns that have corners or crisp points. Cruise - Cruise mode is helpful for continuous, smooth, or curvy designs. It does the same as precise mode, except the machine will continue to stitch in place (at the minimum speed) if you stop moving the machine. Manual - Manual mode makes the machine produce stitches at a certain speed. It's up to the quilter to move the machine the distance needed to get the desired stitch length. This mode is helpful for small, continuous patterns.

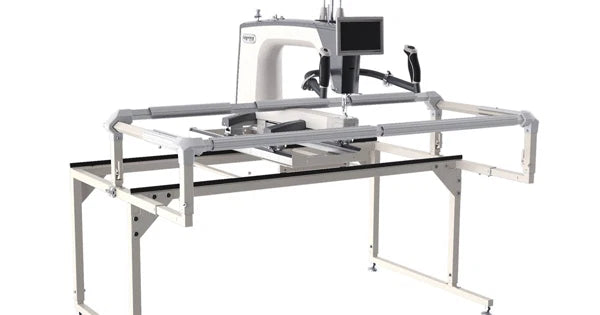

Grow With Your Studio
Ability to Upgrade
The Grace 19SD is built to grow with your quilting journey, giving you the freedom to start as a sit-down long arm and later upgrade to a frame-mounted quilting setup when you are ready. This flexibility makes it a smart investment for quilters who want the comfort and control of seated free-motion quilting now, without being locked into one style forever. By pairing the 19SD with a compatible Grace quilting frame and the proper conversion components, you can transition to a moving-machine setup for larger projects, expanded workflow, and a more traditional long-arm quilting experience. It is a machine that meets you where you are today while leaving room for the studio you want tomorrow.

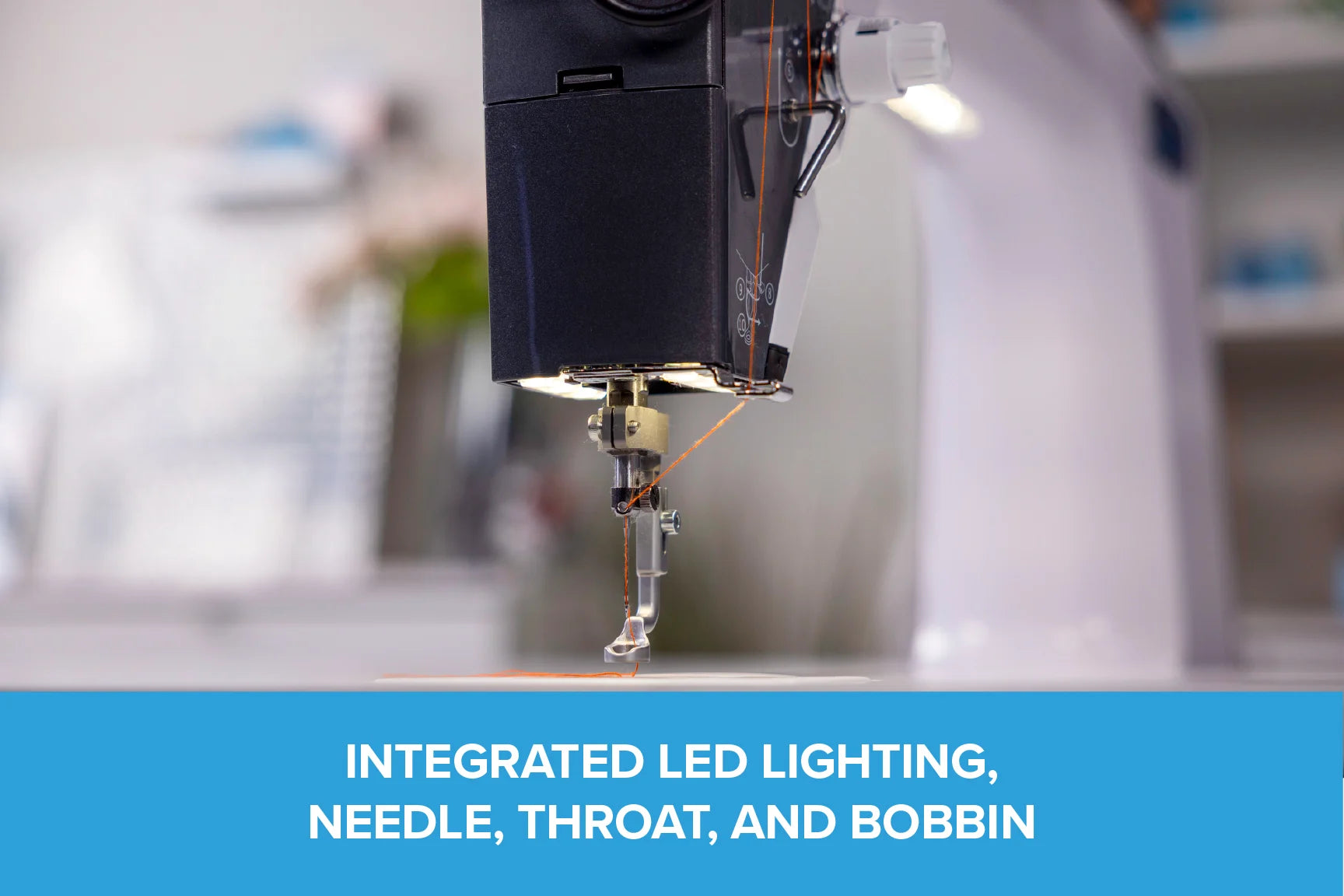

Shadow-Free

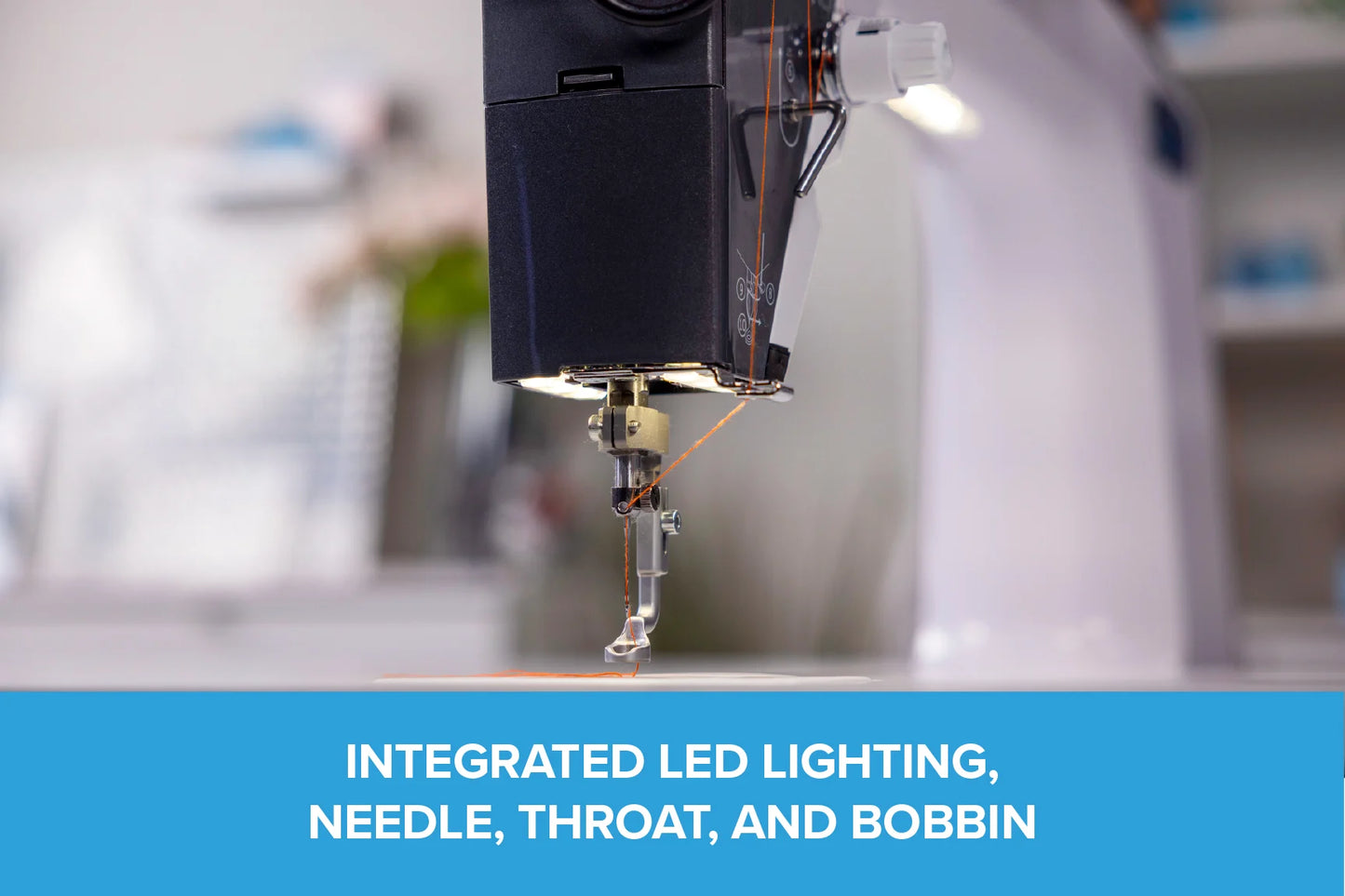

Adjustable LED Lighting
Super bright, color–balanced daylight LEDs light your workspace, reducing eye strain and fatigue. These unique LED lights are adjustable, allowing you to brighten or dim them according to your needs.
Quick Changes

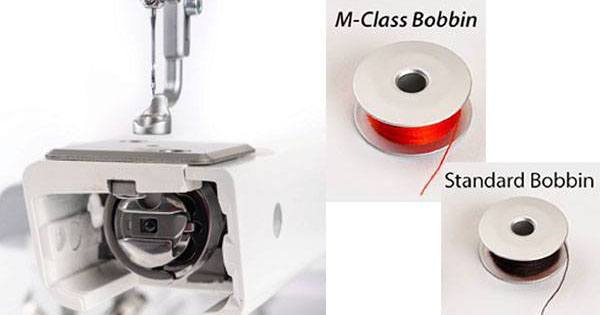

Easy-Access Bobbin
The bobbin case location on this machine has been designed for quick and easy accessibility. Changing your bobbin is now more user-friendly than ever. The 19SD uses larger M-Class bobbins that hold more thread than standard bobbins. This allows you to quilt for longer periods of time before needing to change or refill your bobbin.

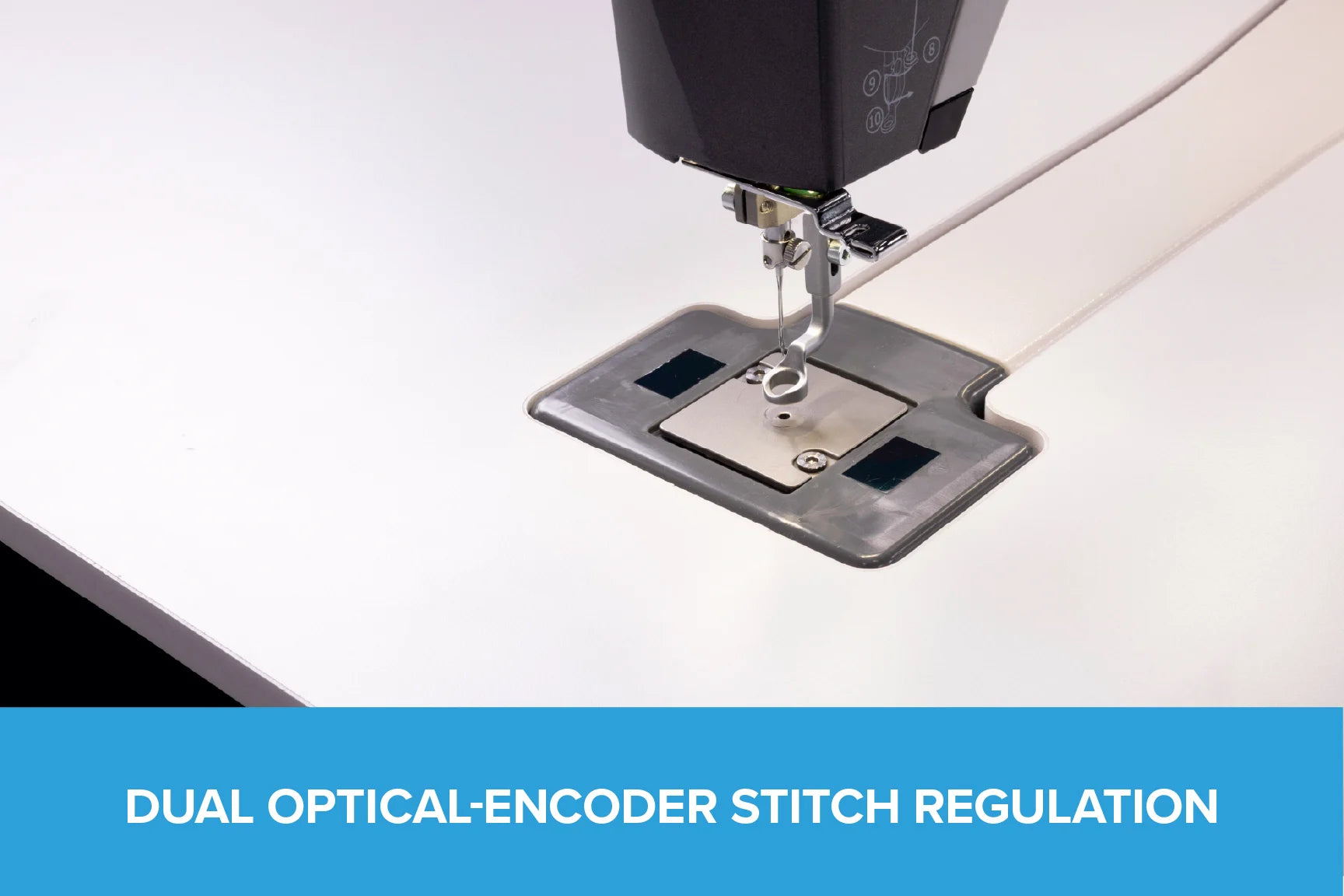

Consistent Stitches

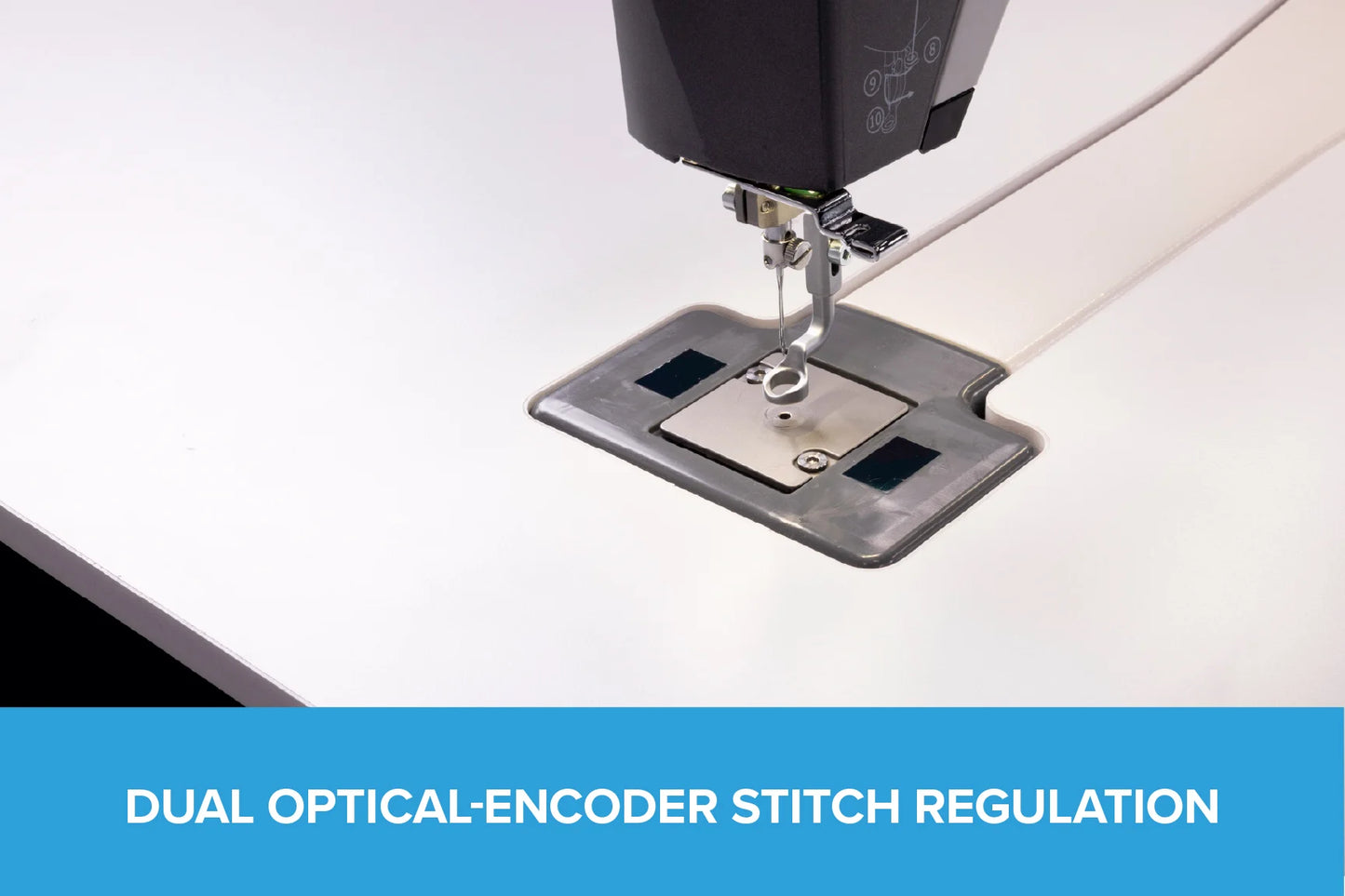

Built-In Stitch Regulator & Counter
The 19SD comes equipped with a built-in stitch regulator. The motion of the machine is monitored via the high-resolution optical encoders. This intelligent feature tells the motor how fast or slow to stitch. Moving the machine too quickly while quilting can reduce the quality of the stitch regulation. If the machine is moved too quickly, an alarm will sound, a red LED light will shine on the needle area, and the "start stitching" button on the display will turn red. Slow the movement of the machine to turn off the alarm, light, and display alert. Both the alarm and the display alert can be deactivated in the settings menu.

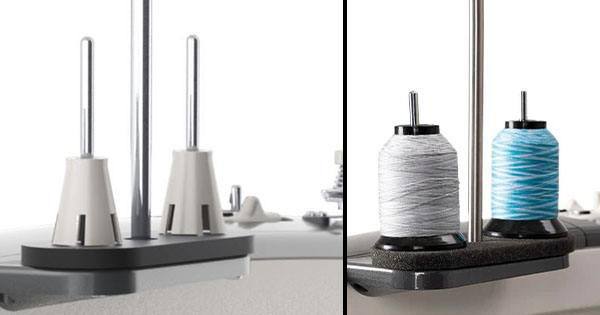

Quilt and Wind at Once
Dual Thread Mast
Quilt and wind bobbins simultaneously on the 19SD with its dual thread mast. This great feature saves you time and energy! You no longer have to stop quilting just to wind a bobbin. With the dual-thread mast, you have a dedicated space for your bobbin and quilting threads.
Fits Your Space
Dimensions
The Grace 19SD sit-down quilting table is designed to give you generous workspace when you need it and a compact footprint when you do not. Fully extended from left to right, the table measures 77.5", providing plenty of surface support for larger quilts and bulky projects, while each side leaf is approximately 21.4" for easy expansion or storage. The table depth is 34.75", and with both leaves collapsed, the setup becomes a convenient 34.75" square, making it easier to fit into home studios, sewing rooms, or shared creative spaces. A 29.5" table height supports comfortable seated quilting, and the included leveling feet help keep the work surface steady and even on a variety of floors.
Key Features
- Generous 19" Throat Space Clearance: Ample arm clearance to maneuver large quilt rolls and king-size projects without fabric bunching.
- Full-Color 7" LCD Touchscreen Display: Large responsive display featuring machine settings, firmware status, and on-screen help guides.
- Integrated On-Screen Help System: Step-by-step guidance for threading, bobbin winding, needle selection, and system troubleshooting.
- Frame-Upgradeable Architecture: Transition smoothly from a sit-down machine to a traditional frame-mounted longarm setup.
- High-Resolution Optical Encoder Regulator: Tracks movement to deliver consistent, uniform stitch length across all speeds.
- 3 Versatile Stitch Modes (Precise, Cruise, Manual): Selectable stitch regulation modes for sharp corners, curvy motifs, or constant speeds.
- Built-In Independent Automatic Bobbin Winder: Winder mechanism with automatic shut-off cam to wind M-class bobbins while quilting.
- Repositionable & Height-Adjustable Hopping Foot: Easily mounts to left, right, or rear of needle to optimize visibility and prevent fabric drag.
- Easy-Access Front-Loading M-Class Bobbin: High-capacity M-class bobbin housing designed for quick, user-friendly bobbin swaps.
- Dual Thread Mast Attachment: Dedicated cone stand to hold quilting thread cone and bobbin thread simultaneously.
- Adjustable Daylight LED Lighting: Bright, color-balanced LED workspace lighting with dimmable controls.
- Manual Incremental Tension Dial (1 to 4 Scale): Clearly marked tension dial for precise thread tension adjustment.
- Speed & Overspeed Audio-Visual Alarms: Red needle LED, screen alert, and audio alarm notify you if movement exceeds regulator speed limits.
- Expandable Sit-Down Table (77.5" Fully Extended): Features two 21.4" drop-down side leaves and collapses to a 34.75" square footprint.
- Comfortable Seated Ergonomics: 29.5" table height with integrated leveling feet ensures a steady, comfortable quilting surface.
Included Accessories
- Expandable Sit-Down Quilting Table: 77.5" wide table with two 21.4" drop-down leaves and leveling feet.
- Repositionable Hopping Foot Attachment: Pre-installed adjustable hopping foot.
- Large Capacity M-Class Bobbins & Bobbin Case: High-capacity metal M-class bobbins and rotary bobbin holder.
- Built-In Independent Bobbin Winder Assembly: Integrated automatic bobbin winder mechanism.
- Dual Thread Mast Attachment: Two-cone thread mast for simultaneous quilting and bobbin winding.
- Power Supply Cable & Hardware Set: Main power cable and table assembly hardware.
- Instruction Manual & Quick Start Documentation: Full operating manual and setup guide.
Details
Product Details
| Machine Type | 19" Sit-Down / Frame-Upgradable Longarm Quilting Machine |
| Workspace Clearance (Throat) | 19.0" Throat Space Clearance |
| Display Screen | Full-Color 7" LCD Touchscreen with Built-In Help Guides |
| Bobbin System | Large Capacity M-Class Bobbin |
| Lighting System | Dimmable Multi-Zone Daylight LED Workspace Lighting |
| Upgradeability | Frame-Upgradeable (Converts to Frame-Mounted Longarm Setup) |
| Stitch Regulation | Built-In High-Resolution Optical Encoder Regulator |
| Stitch Modes | 3 Modes (Precise, Cruise, Manual) |
| Presser Foot | Repositionable & Height-Adjustable Hopping Foot |
| Bobbin Winding | Built-In Independent Automatic Bobbin Winder |
| Tension System | Manual Incremental Dial (1–4 Scale) |
| Safety & Speed Alerts | Overspeed Audio Alarm, Red Needle LED, & Screen Display Alerts |
| Table Dimensions (Fully Extended) | 77.5" Width x 34.75" Depth x 29.5" Height |
| Table Dimensions (Collapsed) | 34.75" Width x 34.75" Depth x 29.5" Height (Side Leaves: 21.4" each) |
Grace Warranty Coverage
[PLACEHOLDER — real Grace warranty tiers exist on file, but every confirmed tier explicitly references "Q'nique" machines by name. This product is branded "Grace 19SD" without the Q'nique name, so it's unclear whether the same tiers apply, a different Grace-brand tier applies, or it falls under the "Frames, accessories & entry-level products" tier (given it includes a table). Please confirm the correct tier before publishing.]
Grace stands behind the quality and craftsmanship of every machine it builds, backed by a manufacturer's limited warranty covering defects in materials and workmanship.
Grace handles warranty service directly — no dealer middleman required.
