Product Information
Janome

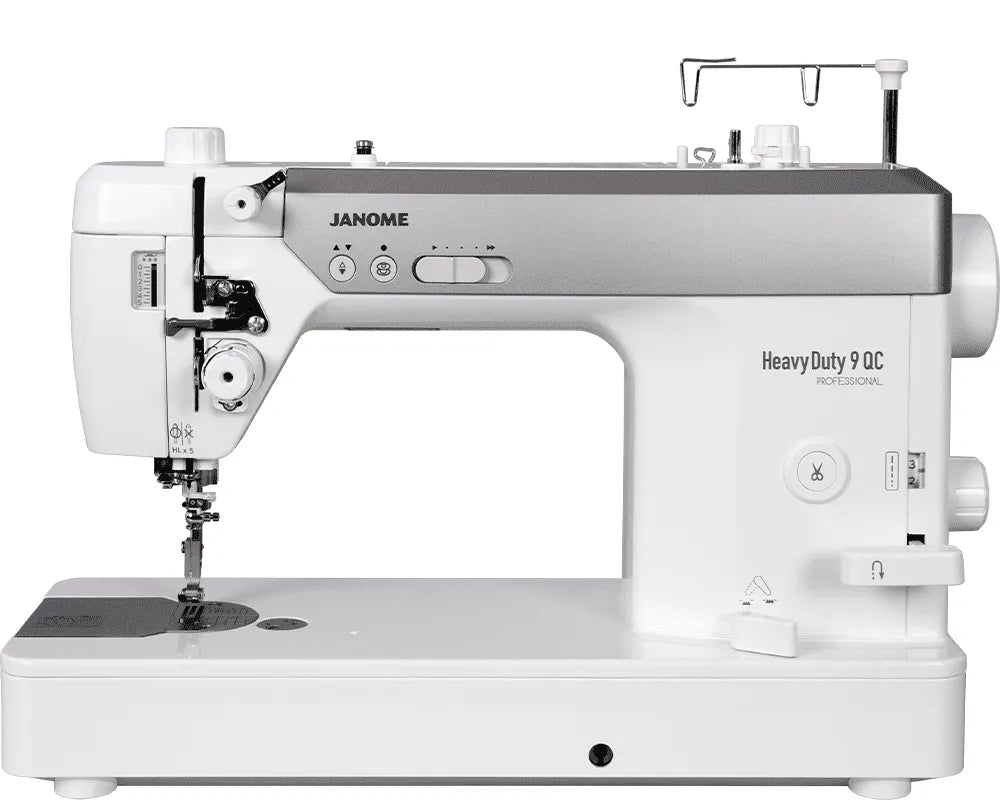

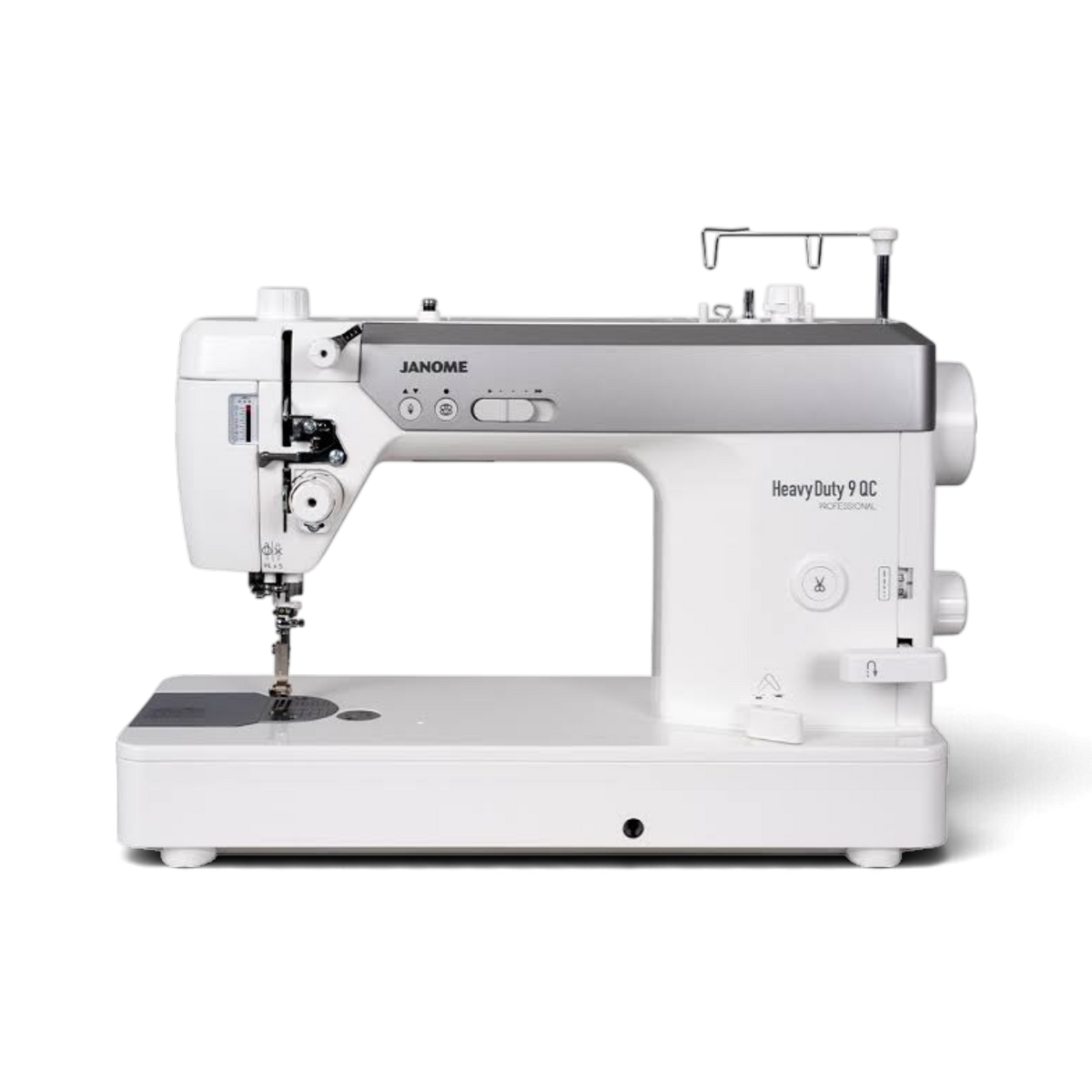

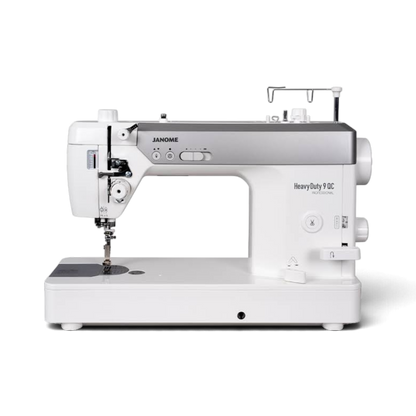

HD9QC Professional
Master heavy-duty garment construction, bag making, and high-speed quilting with the Janome HD9QC Professional straight stitch machine! Engineered with industrial-grade mechanics, a heavy-duty metal casting, and eight internal ball bearings in the main shaft, the HD9QCP delivers whisper-quiet, vibration-free stitching at incredible speeds up to 1,650 stitches per minute. Equipped with Janome's innovative Float Function mode, a 1.4X side-loading Jumbo Bobbin, an independent bobbin winding motor, and 11 pounds of presser foot pressure, this straight-stitch powerhouse effortlessly pierces thick canvas, denim, leather, and bulky quilt sandwiches with complete precision.
Powers through heavy-duty production sewing and long quilting seams at 1,650 stitches per minute with smooth, industrial-grade accuracy.
Micro-adjusts presser foot height slightly above fabric surfaces to eliminate puckering, drag, and uneven feeding on lofty knits, velvet, and quilts.
Uses a high-capacity Class 15 M-style jumbo bobbin holding 40% more thread than standard bobbins, housed in a full-rotary 360-degree metal hook.
Features a built-in drop feed control that lowers feed dogs instantly for smooth, unrestricted stippling, feathers, and free-hand quilting motifs.

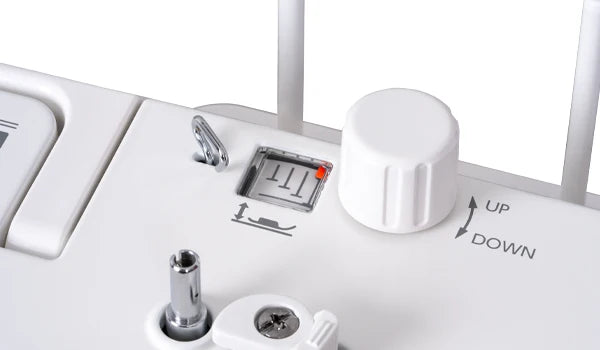

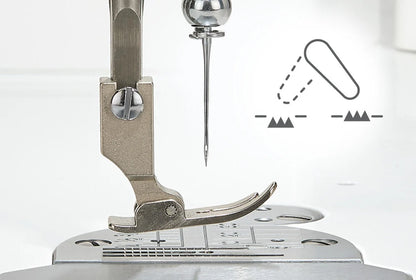

Precision Float for Every Fabric Type
Float Function Presser Foot Control
Fine-tune presser foot height between 0mm and 3mm to give delicate, lofty, or textured materials the exact clearance required. By allowing the foot to "float" above fabric layers, the Float Function prevents fabric compression, drag, and uneven feeding on velvet, knits, and thick quilt sandwiches.

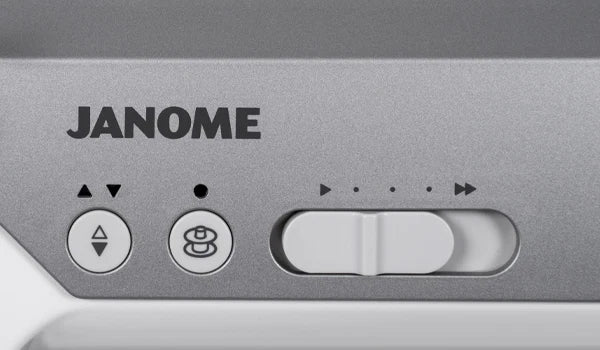

Essential Controls at Your Fingertips
Convenient Function Buttons & Speed Slider
Keep essential controls directly at your fingertips during intense sewing sessions. Utilize the programmable needle up/down button to set stop positions for pivoting, dial in maximum stitching speeds with the speed control slider, and operate the independent bobbin winder without unthreading your primary line.
Flawless Tension on Heavy Threads
Industrial Pretension Threading & Responsive Foot Control
Maintain flawless thread tension across specialty and high-tensile threads using the industrial pretension assembly. Paired with a highly responsive extra-large foot control pedal, you achieve sub-stitch speed modulation from micro-precise detail work up to top-speed seaming.

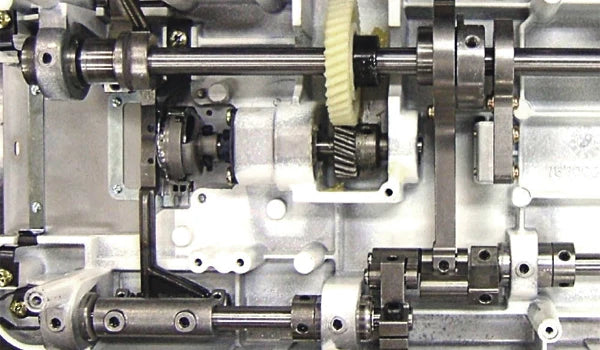

8 Bearings for Whisper-Quiet Operation
Heavy-Duty Ball-Bearing Main Shaft Construction
Experience whisper-quiet operation and long-term mechanical durability. Eight strategically placed ball bearings stabilize the main drive shaft, absorbing vibration and reducing mechanical wear even when stitching through thick canvas and multiple denim layers at 1,650 SPM.

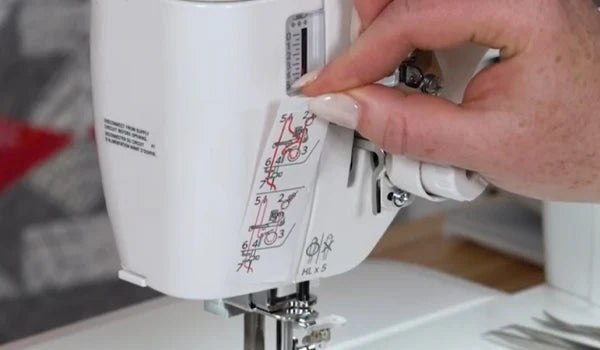

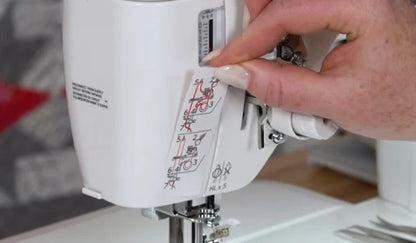

Quick Reference for Heavy Thread Paths
Removable Heavyweight Thread Guide Sticker
Reference proper thread paths quickly when switching between standard utility threads, heavy topstitching threads, or decorative yarns. The included thread guide sticker can be applied directly to the machine housing or kept nearby for clean exterior styling.

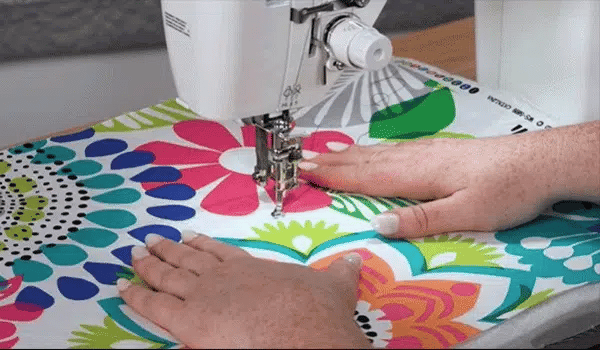

Stitch Freely in Any Direction
Free Motion Quilting with Drop Feed
Bypass separate darning plates entirely when shifting to free-motion work. Lowering the feed dogs via the drop-feed control allows you to guide your fabric freely in any direction for smooth stippling, swirls, and custom quilting motifs.

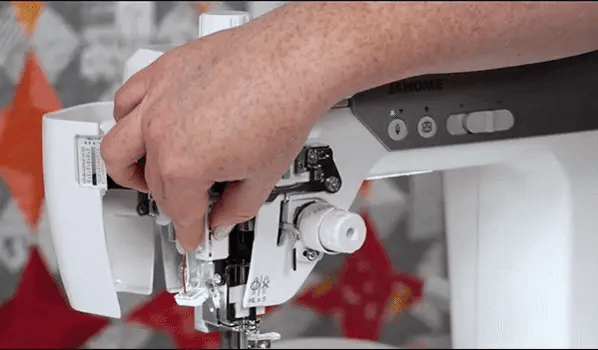

Adjustable Daylight Over Needle & Throat
Dimmable Dual LED Workspace Lighting
Brighten dark fabrics and intricate seam lines with targeted daylight LEDs positioned over the needle bar and throat space. Adjust workspace light brightness directly using head-mounted control buttons for optimal visual comfort.

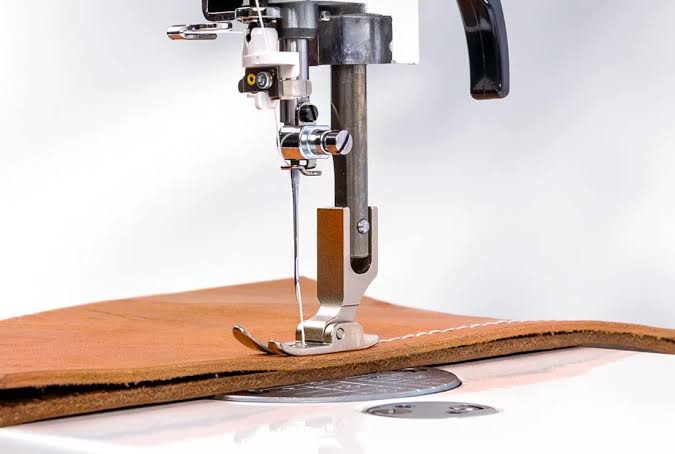

Production-Grade Speed at Home
Rapid 1,650 Stitches Per Minute Speed
Complete high-volume production runs and expansive quilt seams in record time. Delivering speeds up to 1,650 SPM, the HD9QCP combines industrial efficiency with domestic machine convenience.

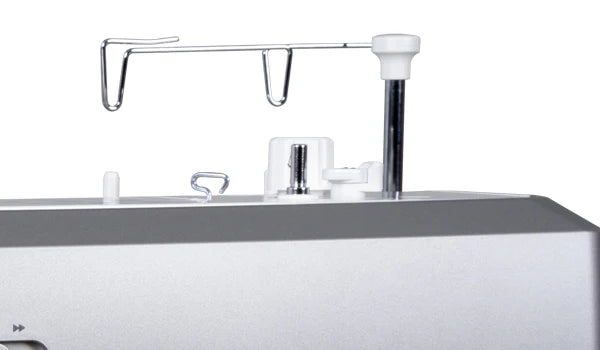

Handles Large Cones & Specialty Spools
Telescopic Retractable Thread Stand
Feed large thread cones and specialty cross-wound spools smoothly into top tension disks. The height-adjustable thread guide extends to prevent thread twisting and tangling, retracting neatly into the machine when stored.

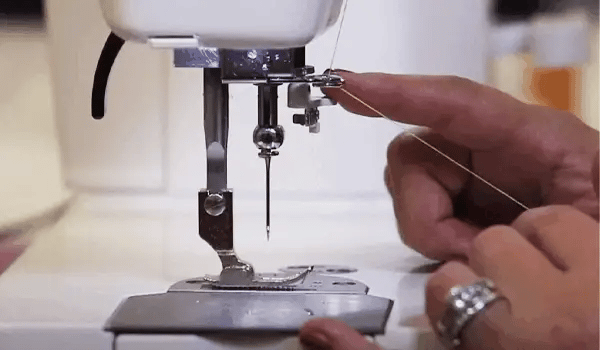

Thread Your Needle in Seconds
Built-In Mechanical Needle Threader
Eliminate eye strain and thread your needle effortlessly in seconds. The automated needle threader mechanism guides thread directly through the needle eye, getting you back to stitching without delay.

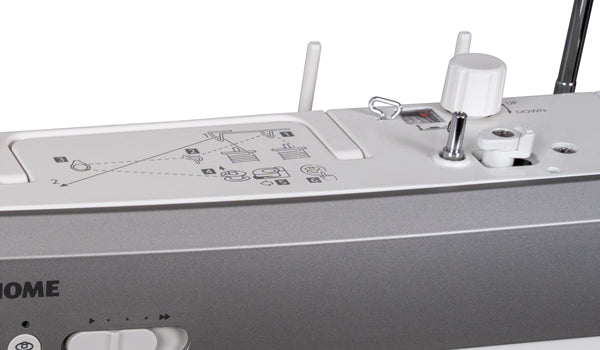

Wind Bobbins Without Stopping
Independent Bobbin Winding Motor (3,000 RPM)
Wind bobbins at high speed (3,000 RPM) using a dedicated secondary motor. Refill extra Jumbo Bobbins continuously while sewing without pausing your work or unthreading the needle line.

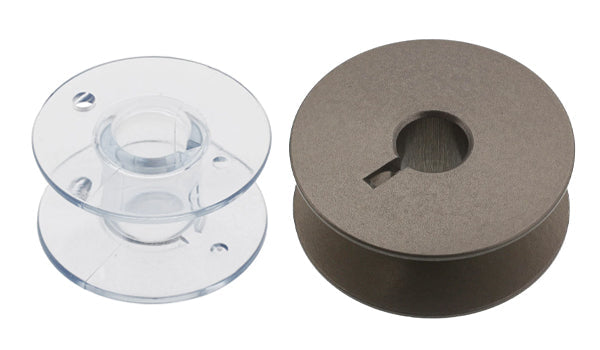

40% More Thread. Zero Jams.
Side-Loading 1.4X Jumbo Bobbin & Metal Rotary Hook
Sew 40% longer between bobbin changes using high-capacity side-loading jumbo bobbins. Encased in a heavy-duty metal bobbin case with a 360-degree rotary hook, it provides jam-free, industrial stitch reliability.

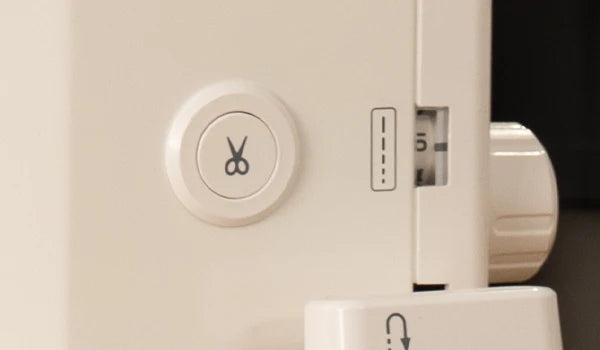

Clean Trims at the Press of a Button
Quiet Automatic & Manual Thread Cutters
Trim top and bottom threads cleanly at the press of a button with upgraded, low-noise automatic thread cutter mechanics. A built-in manual thread cutter blade is also positioned on the machine side for quick manual snips.

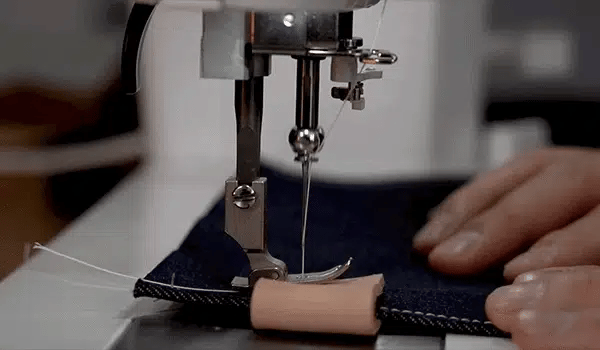

Grips Leather, Denim & Canvas Securely
11 lbs Heavy-Duty Presser Foot Pressure
Exert up to 11 pounds of downward pressure on the presser foot to prevent thick fabric shifting. Heavy materials like leather, denim, canvas, and multi-layer upholstery are clamped securely for even feeding.
Key Features
- 1,650 SPM High-Speed Straight Stitching: Fast home straight-stitch motor engineered for production sewing.
- Float Function Clearance (0–3mm): Adjustable presser foot float height reduces fabric drag and seam puckering.
- 1.4X Jumbo Bobbin System: Side-loading M-style bobbin holds 40% more thread capacity than standard bobbins.
- Drop Feed Dog Mechanism: Lowers feed dogs for free-motion quilting, thread sketching, and stippling.
- Independent Bobbin Winding Motor: Dedicated 3,000 RPM motor winds bobbins while actively stitching.
- Industrial Pretension Threading System: Stabilizes heavy-duty and high-tensile threads before tension disks.
- 11 lbs Adjustable Presser Foot Pressure: Firm downward pressure keeps dense fabrics aligned without slipping.
- 8 Ball-Bearing Main Shaft Construction: Minimizes vibration, reduces internal wear, and enhances high-speed stability.
- Dimmable Dual LED Lights: Adjustable brightness LEDs positioned over needle and throat workspace zones.
- Automatic & Manual Thread Cutters: Quiet automated thread trimmer paired with an exterior side cutter blade.
- Built-In Mechanical Needle Threader: Lever-actuated threader guides thread through needle eyes quickly.
- Extra-High Presser Foot Lift: Elevated foot clearance accommodates thick fabric stacks and bulky quilt seams.
- Retractable Telescopic Thread Stand: Dual-cone thread mast handles large industrial thread spools smoothly.
- Heavyweight Thread Guide Sticker: Removable visual reference sticker for routing heavy topstitching threads.
- Generous 9" x 5.9" Throat Workspace: Spacious bed distance to the right of the needle handles bulky materials.
- Speed Control Slider & Needle Up/Down: Fine-tune stitching speeds and program needle stop positions on demand.

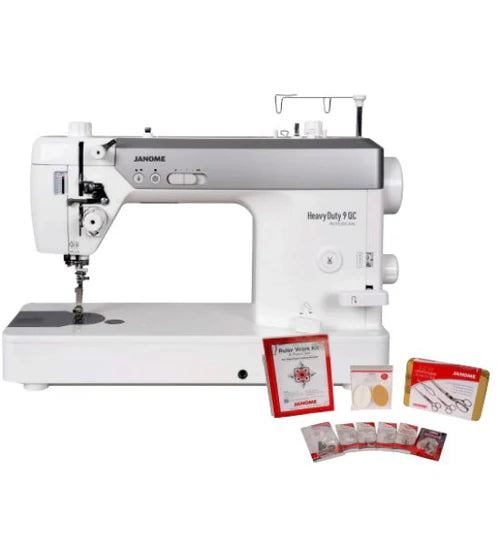

Included Accessories
- Standard Presser Foot: Heavy-duty straight-stitch presser foot pre-installed on the machine for general seaming.
- Rolled Hem Foot: Narrow hemmer foot that automatically rolls sheer and light fabric edges cleanly while stitching.
- 1/4" Seam Foot: Dedicated piecing foot engineered to maintain exact quarter-inch seam allowances for quilting.
- Walking Foot (Even Feed): Dual feed foot with upper feed dogs that drive top fabric layers synchronously.
- Stitch in the Ditch Foot: Precision guide foot designed to align stitches perfectly within pre-existing seam grooves.
- Free Motion Foot Set (Closed & Open Toe): Spring-action free-motion feet providing clear needle visibility for stippling.
- Adjustable Knee Lifter: Hands-free lever that connects to the front base to raise the presser foot using knee pressure.
- Extra-Large Foot Control Pedal: Industrial-style foot pedal offering precise sub-stitch motor speed modulation.
- Side-Loading Jumbo Bobbins (5): High-capacity aluminum M-style bobbins engineered for heavy thread yardage.
- Cloth Guide: Adjustable seam guide blade that mounts to the bed for sewing straight uniform seam allowances.
- Extension Table: Detachable wide extension table that expands your flatbed workspace for large quilt tops.
- Maintenance Tools & Accessories: Lint brush, machine oil bottle, large/small screwdrivers, and Organ needle set.
- Thread Management Accessories: Spool cap, spool holder, thread net, and removable heavyweight thread guide sticker.
- Protective Soft Dust Cover: Fitted protective cover to shield your machine head from ambient dust when not in use.
Details
Product Details
| General Specifications | |
| Machine Type | High-Speed Heavy-Duty Straight Stitch Sewing Machine |
| Machine Weight | 32 lbs (14.5 kg) |
| Machine Dimensions | 19.6" Wide x 12.6" High x 8.6" Deep (9" x 5.9" Work Area) |
| Cover Type | Protective Soft Dust Cover |
| Scrap Collector | Integrated Accessory Storage Box |
| Bed Type | Heavy-Duty Flat Bed Construction |
| Sewing & Quilting Specifications | |
| Thread Configuration | Single Needle Straight Stitching Only |
| Threading Pathway | Retractable Telescopic Thread Stand with Industrial Pretension Assembly |
| Tension System | Manual Precision Tension Dial with Heavyweight Thread Guide |
| Feed System / Motion | Drop Feed Dog System with Float Function Control (0–3mm) |
| Maximum Stitch Length | 6.0 mm (Adjustable Dial Control) |
| Maximum Stitch Width | Not Applicable (Straight Stitch Only) |
| Maximum Sewing Speed | 1,650 Stitches Per Minute (SPM) |
| Bobbin Winding Speed | 3,000 RPM (Independent Secondary Motor) |
| Bobbin System | Side-Loading Jumbo Bobbin (1.4X Capacity) with 360-Degree Full Rotary Hook |
| Needle System | High-Speed Industrial Needle System (HLx5 / 130/705H) |
| Presser Foot Pressure | Up to 11 lbs (Adjustable Dial Control) |
| Stitch Capabilities | Heavy-Duty Straight Stitching, Topstitching, Free-Motion Quilting, Basting |
Janome Warranty Coverage
The Janome HD9QC Professional is covered by Janome's industry-leading warranty with coverage tailored by component category.
- Mechanical Components — 25-year limited warranty
- Electrical Components — 5-year warranty
- Labor & Adjustments — 1-year warranty
Coverage applies to manufacturer defects — not damage from misuse or improper maintenance. Warranty service can be performed at any authorized Janome dealer, so there's no need to go back to where you bought it.
Your Janome warranty is valid at any authorized dealer nationwide — take your machine anywhere for service.
