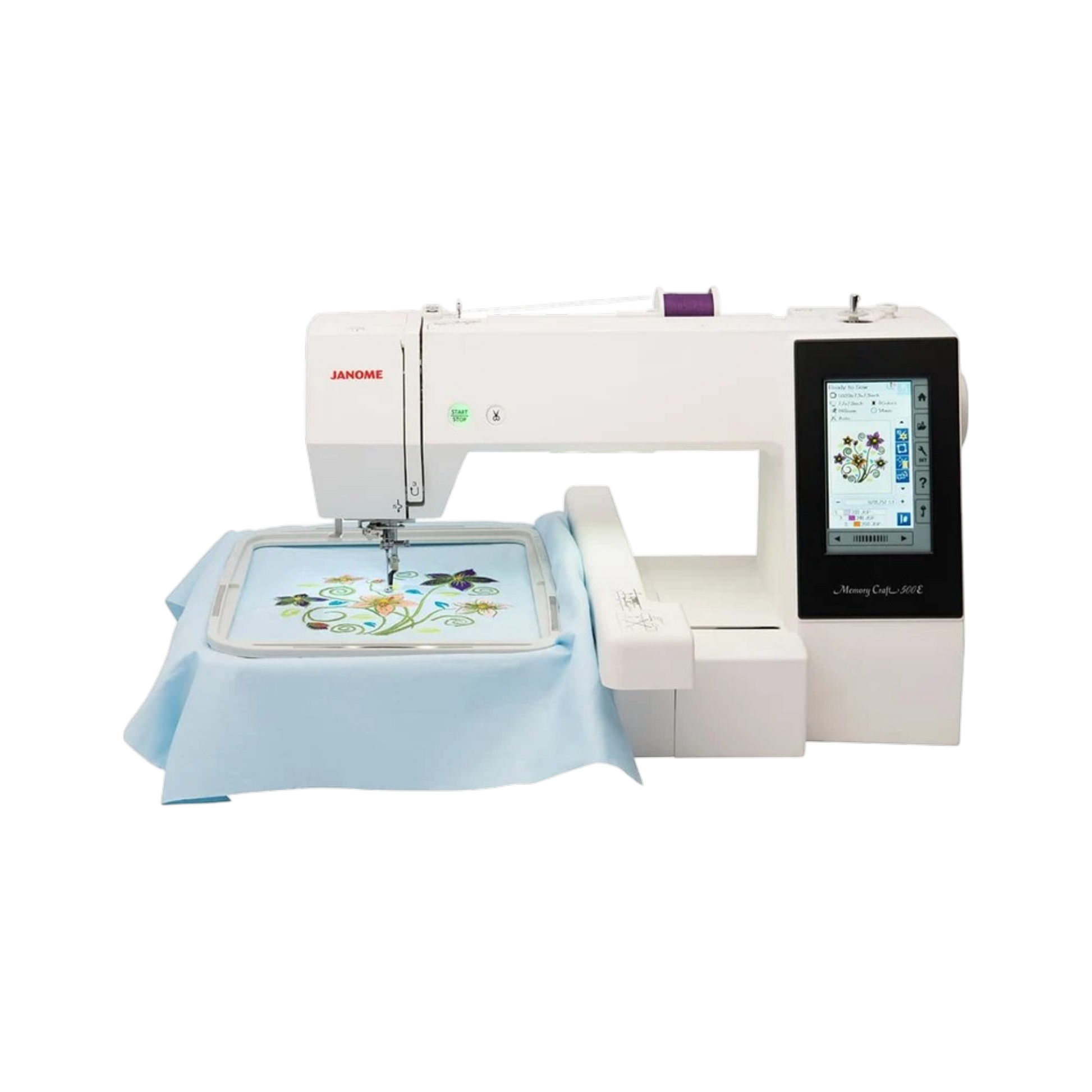

Janome Memory Craft 500E Limited Edition Embroidery Machine
Janome Memory Craft 500E Limited Edition Embroidery Machine
Couldn't load pickup availability
Not sure this is the right machine for you?
Take the Quiz →
Product Information
Janome
Memory Craft 500E Limited Edition

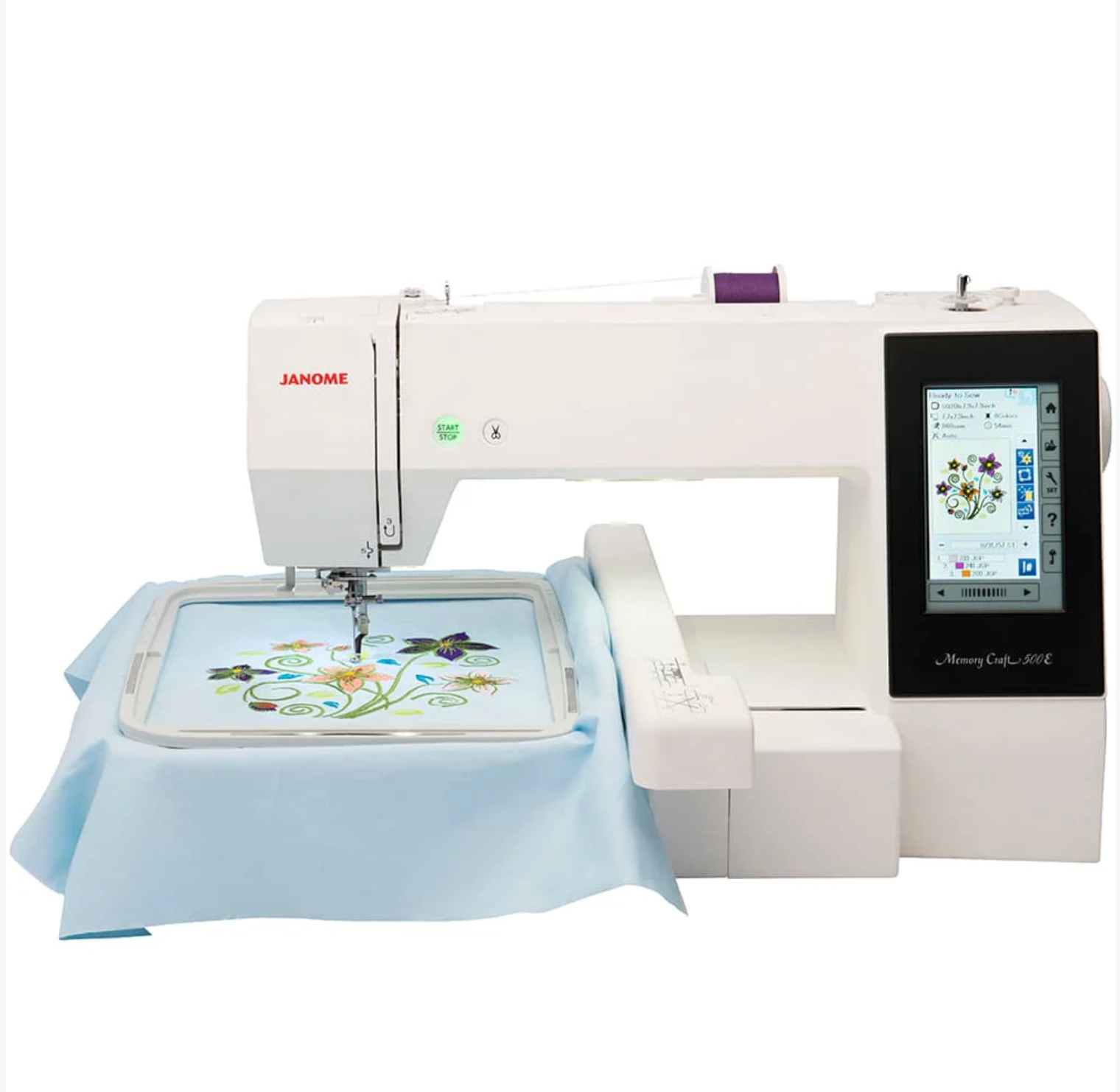

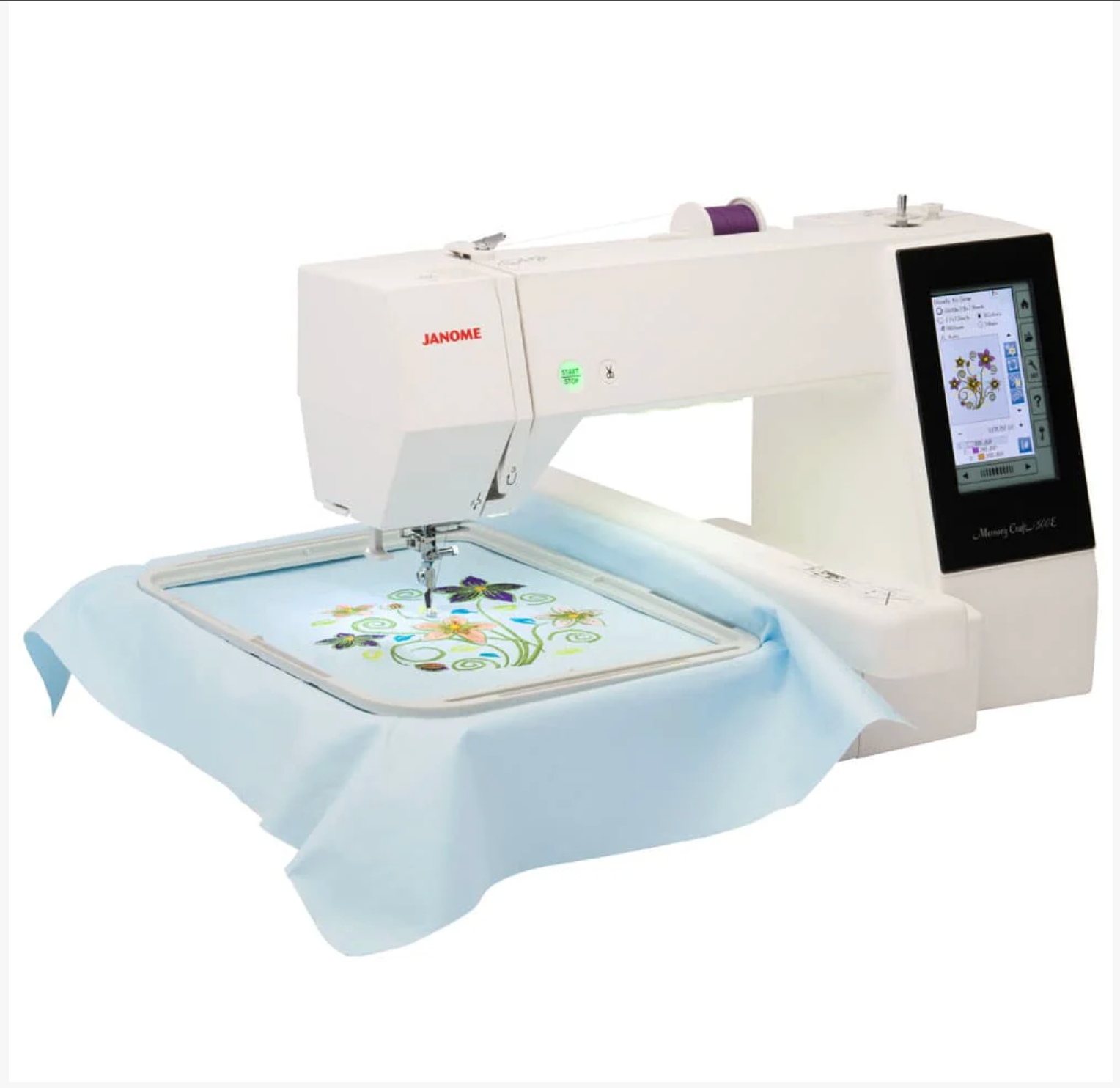

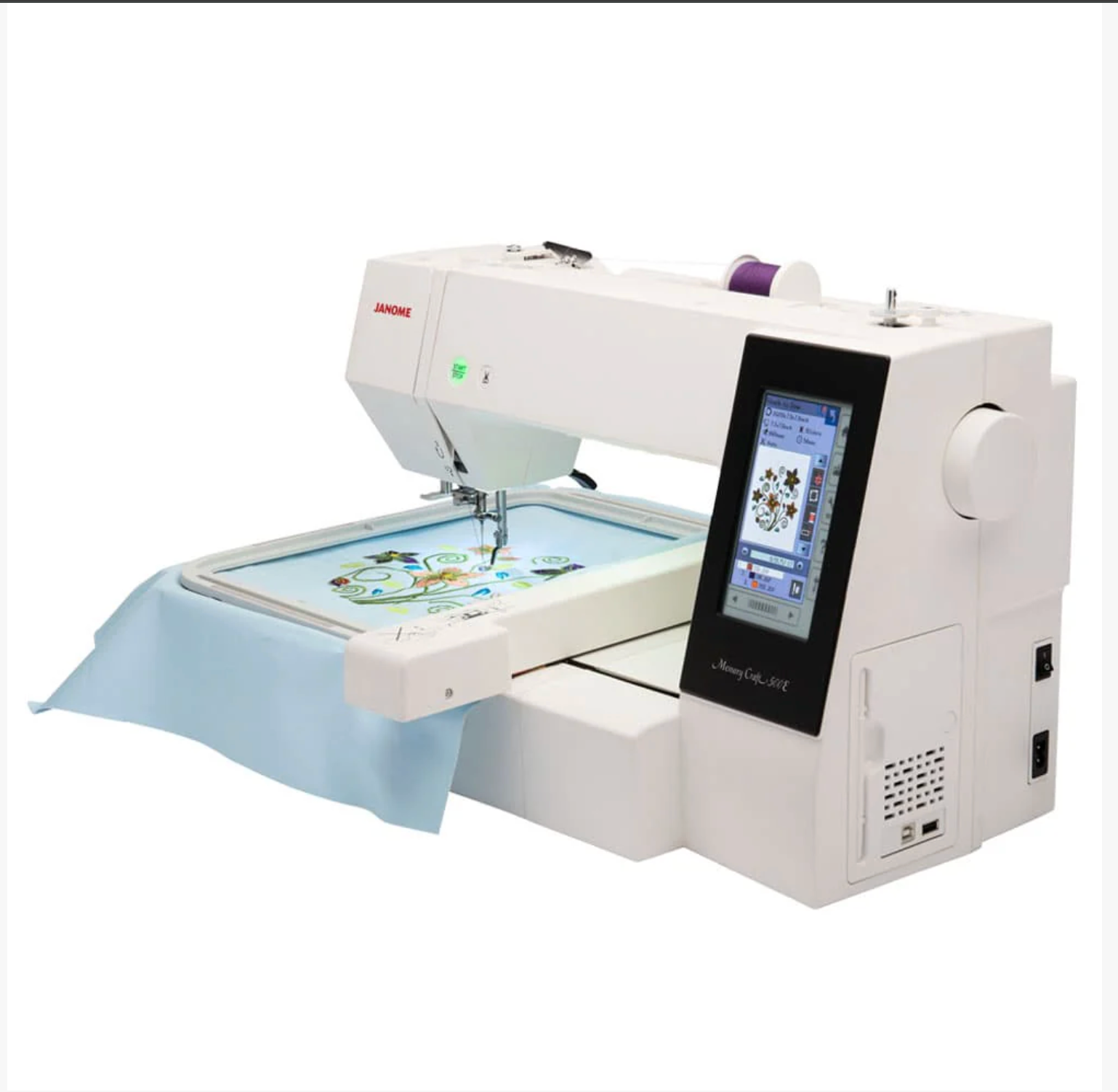

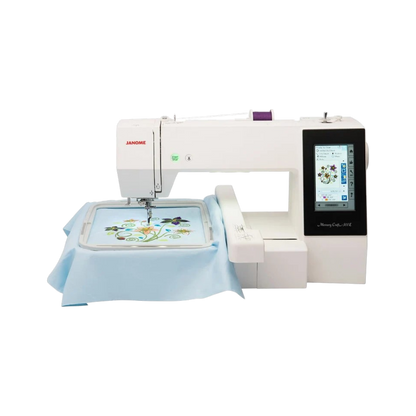

Elevate your embroidery projects to professional standards with the Janome Memory Craft 500E Limited Edition! Engineered specifically for dedicated embroidery enthusiasts, this standalone computerized embroidery machine features a massive 7.9" x 11" maximum embroidery field, 160 built-in designs, 6 monogramming fonts, and a stitching speed ranging from 400 to 860 stitches per minute. With four included hoops, an extra-wide extension table, full-color touchscreen design editing, programmable jump thread trimming, and an easy USB transfer port, the MC500ELE brings unlimited customization and precision to garments, quilts, and home decor.
A generous maximum embroidery area supported by an extra-wide extension table for large quilt panels, jackets, and home furnishings.
A diverse design library plus 6 distinct 2 and 3-letter monogramming fonts.
Resize, combine, duplicate, flip, arc, group, drag & drop, zoom, trace, and recolor designs on the touchscreen.
4 standard hoops covering everything from small motifs to the machine's full embroidery field.
Personalize Everything

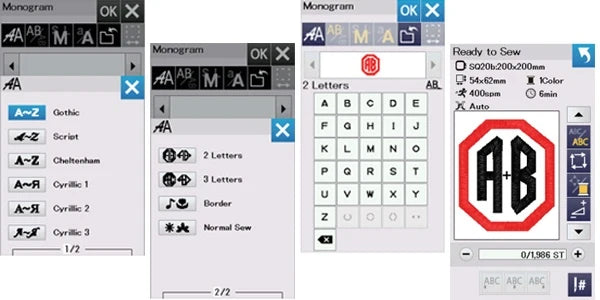

2 and 3 Letter Monogramming
Personalize every gift and project by monogramming two or three-letter initials on towels, bags, clothes, and more. Six monogramming fonts are included so you can find the most suitable style for your project: Gothic, Cyrillic, Cyrillic 2, Cyrillic 3, Script, and Cheltenham.
Endless Options
160 Built-in Designs
The 160 built-in designs included on the MC500ELE cover everything from florals/nature, birds, people, abstract designs, dinosaurs, space, and more. The library features large thumbnails to make finding the right match even easier. If you are looking for something else, you can design your own patterns and transfer them to your machine with a USB stick.
Room to Create

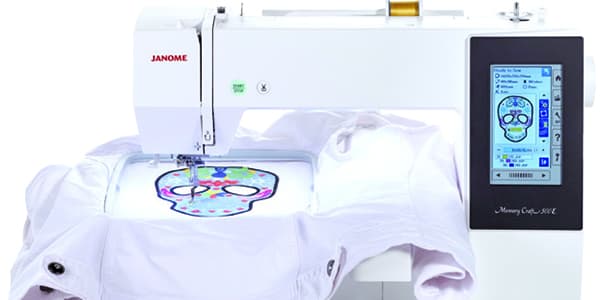

Embroidery Field

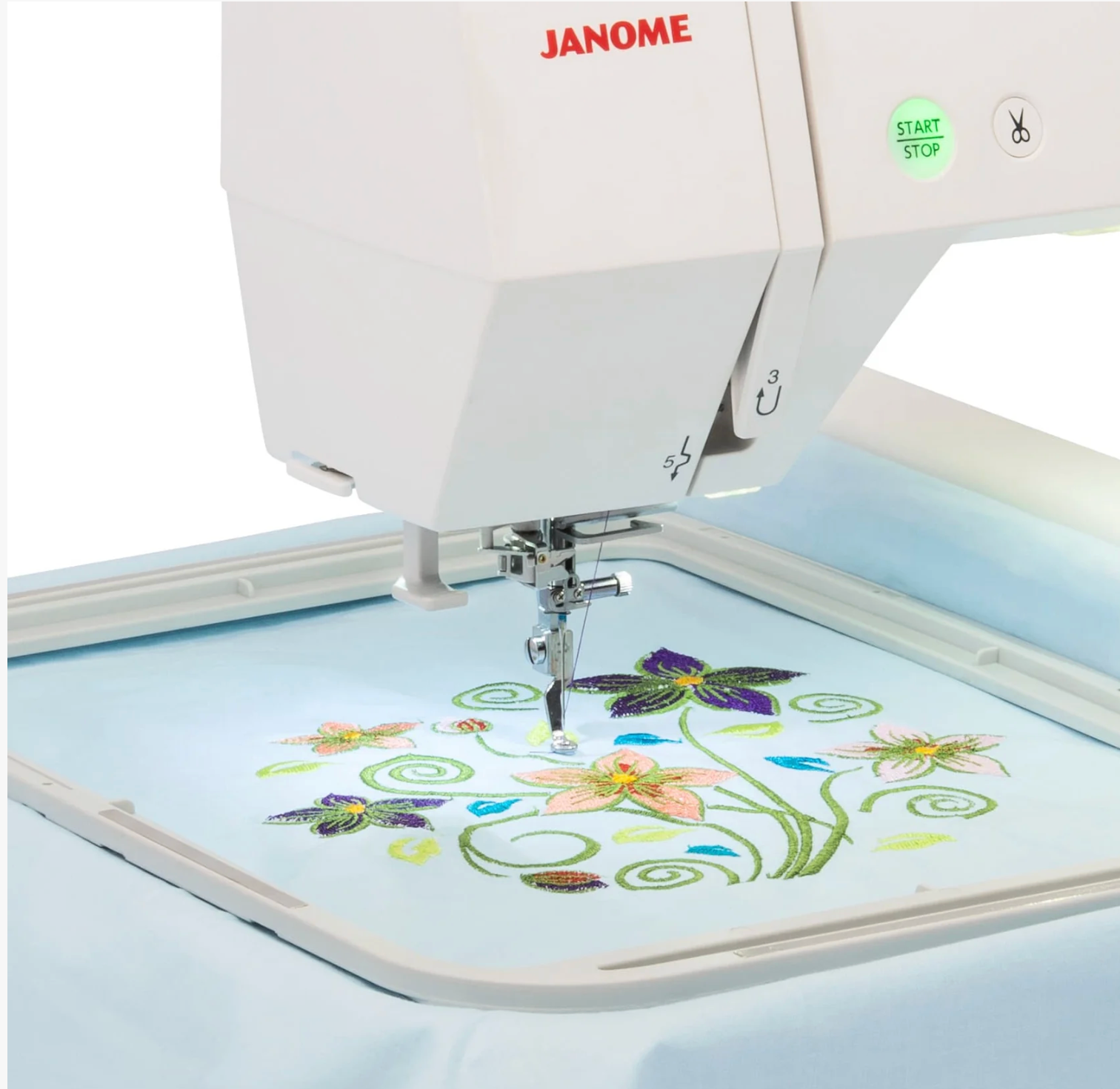

Depending on the size and complexity of your design, Janome's Memory Craft 500ELE can embroider between 400 and 860 stitches per minute. It has a maximum embroidery area of 7.9" by 11". Included as a standard accessory, the extra wide extension table ensures your embroidery projects are always properly supported while expanding your workspace.
Total Customization

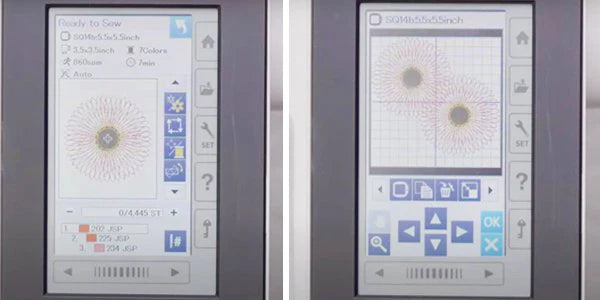

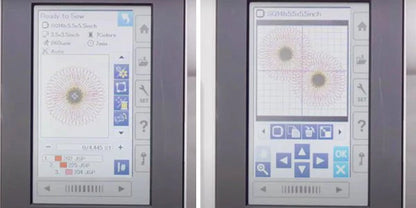

Embroidery Editing
Customize your embroidery as much as you want with all the editing features packed into the 500ELE. You can resize, combine, duplicate, flip, arc, group, drag & drop, zoom, trace, and pick your colors. This embroidery machine also allows you to program jump thread trimming, has flexible stitch traveling by units of 1, 10, and 100, and has an auto-return post-thread break.
Ease of Use

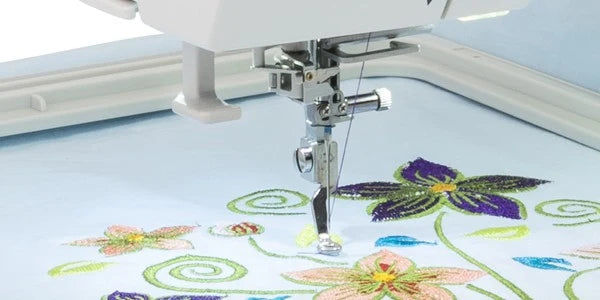

Built-in Needle Threader
The Memory Craft 500ELE features a built-in needle threader, removing the guesswork, near-misses, and frustration! No more struggling to thread a needle by hand! Effortlessly thread your machine needle in seconds without straining your eyes. The needle threader can be used with a size 11 to 14 needle and thread weights between 50 and 90. Using 30-weight or thicker threads with the needle threader is not recommended.
Effortless Prep

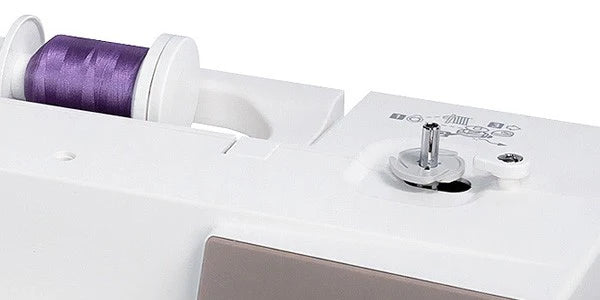

Bobbin Winder
The MC500ELE includes a built-in bobbin winder with a plate and cutting blade. Plus, it will automatically stop winding once the bobbin is full. This handy tool makes it easier to swap out your bobbins, especially with the bobbin sensor letting you know you are getting low. The top-loading, full rotary hook bobbin can be accessed with the push of a button on the needle plate.
Ready for Any Project

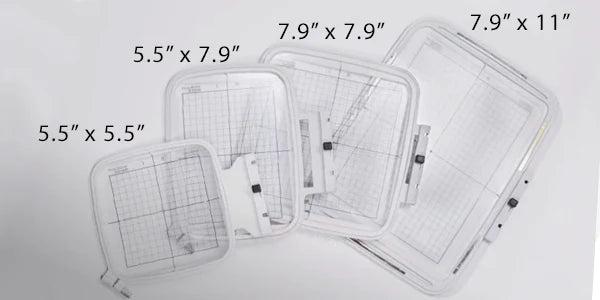

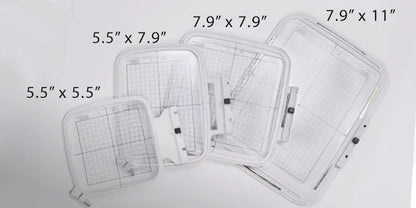

Hoops
Included with the 500ELE are four embroidery hoops. The four hoops will work with most projects, especially for beginners. Sizes include 5.5" x 5.5", 5.5" x 7.9", 7.9" x 7.9", 7.9" x 11".
Key Features
- 160 Built-In Embroidery Designs: Broad motif collection with visual thumbnail browsing and USB design transfer capability.
- 6 Monogramming Fonts (2 & 3 Letter Monograms): Includes Gothic, Cyrillic, Cyrillic 2, Cyrillic 3, Script, and Cheltenham fonts.
- Expansive 7.9" x 11" Maximum Embroidery Field: Generous field supporting RE28b hoop projects alongside included extra-wide extension table.
- Variable Embroidery Speed (400 – 860 SPM): Adjustable stitching speed based on design density and thread selection.
- Comprehensive On-Screen Editing Suite: Resize (80%-120%), combine, duplicate, flip, arc, group, drag & drop, zoom, trace, and color choice.
- Programmable Auto Jump Thread Trimming: Trims thread tails automatically between jump stitches and thread color changes.
- Flexible Stitch Traveling & Auto-Return: Jump forward/back by 1, 10, or 100 stitches with automatic position return after thread breaks.
- Built-In Mechanical Needle Threader: Single-motion threading lever designed for size 11-14 needles and 50-90 weight threads.
- Top-Loading Full Rotary Hook Bobbin: One-push button release plate with lower bobbin thread sensor.
- Independent Auto-Stop Bobbin Winder: Built-in winder with thread cutter blade that disengages automatically when full.
- 4 Standard Included Embroidery Hoops: SQ14b (5.5"x5.5"), RE20b (5.5"x7.9"), SQ20b (7.9"x7.9"), and RE28b (7.9"x11").
- Full-Color Backlit LCD Touchscreen: High-definition editing display showing design layout, stitch count, and thread brand colors.
Included Accessories
- SQ14b Embroidery Hoop (5.5" x 5.5"): Square embroidery hoop for mid-sized motifs and chest logos.
- RE20b Embroidery Hoop (5.5" x 7.9"): Rectangular hoop ideal for elongated designs and sleeve embellishments.
- SQ20b Embroidery Hoop (7.9" x 7.9"): Large square hoop for block quilting and central garment placements.
- RE28b Embroidery Hoop (7.9" x 11"): Extra-large hoop providing the maximum 7.9" x 11" embroidery workspace.
- Extra-Wide Extension Table: Standard attachable bed table ensuring proper fabric support across large hoops.
- Embroidery Foot P: Specialized clear embroidery foot pre-installed for precise stitch placement.
- High Tension Bobbin Holder for Embroidery: Dedicated bobbin case set specifically for smooth embroidery thread delivery.
- Class 15 Bobbins & Needle Pack: Top-loading clear bobbins and specialty embroidery needle pack.
- Screwdrivers, Lint Brush, & Scissors: Screwdriver tools, maintenance brush, and embroidery thread snips.
- Spool Holders (Large, Small, Special) & Extra Spool Pin: Retaining caps and auxiliary spool stand for embroidery cones.
- Touch Panel Stylus & Power Cable: Precision stylus pen for LCD screen navigation and main power cable.
- Soft Dust Cover & Instruction Manual: Protective vinyl machine cover and comprehensive operating manual.
Details
Product Details
| Machine Type | Standalone Computerized Embroidery Machine |
| Maximum Embroidery Size | 7.9" x 11.0" (200mm x 280mm) |
| Embroidery Speed Range | 400 to 860 Stitches Per Minute |
| Display Screen | Full-Color Backlit LCD Touchscreen |
| Data Connectivity | USB Port for Direct File Transfer (.JEF format) |
| Bobbin System | Top-Loading Full Rotary Hook Bobbin with Thread Sensor |
| Built-In Designs | 160 Embroidery Designs |
| Monogramming Fonts | 6 Fonts (Gothic, Cyrillic, Cyrillic 2, Cyrillic 3, Script, Cheltenham) |
| Included Hoops | 4 Hoops (SQ14b 5.5"x5.5", RE20b 5.5"x7.9", SQ20b 7.9"x7.9", RE28b 7.9"x11") |
| On-Screen Editing | Resize, Combine, Duplicate, Flip, Arc, Group, Drag & Drop, Zoom, Trace |
| Thread Trimming | Programmable Auto Jump Thread Trimming |
| Stitch Recovery | Flexible Stitch Traveling (1/10/100) & Auto-Return Post Thread Break |
| Needle Threader | Built-In Mechanical Needle Threader (Size 11-14 Needles) |
Janome Warranty Coverage
[PLACEHOLDER — the exact warranty category and terms for this standalone embroidery machine have not been confirmed. Replace with the correct coverage lengths and terms before publishing.]
Janome stands behind the quality and craftsmanship of every machine it builds, backed by a manufacturer's limited warranty covering defects in materials and workmanship.
Warranty service can be performed at any authorized Janome dealer, so there's no need to go back to where you bought it.
