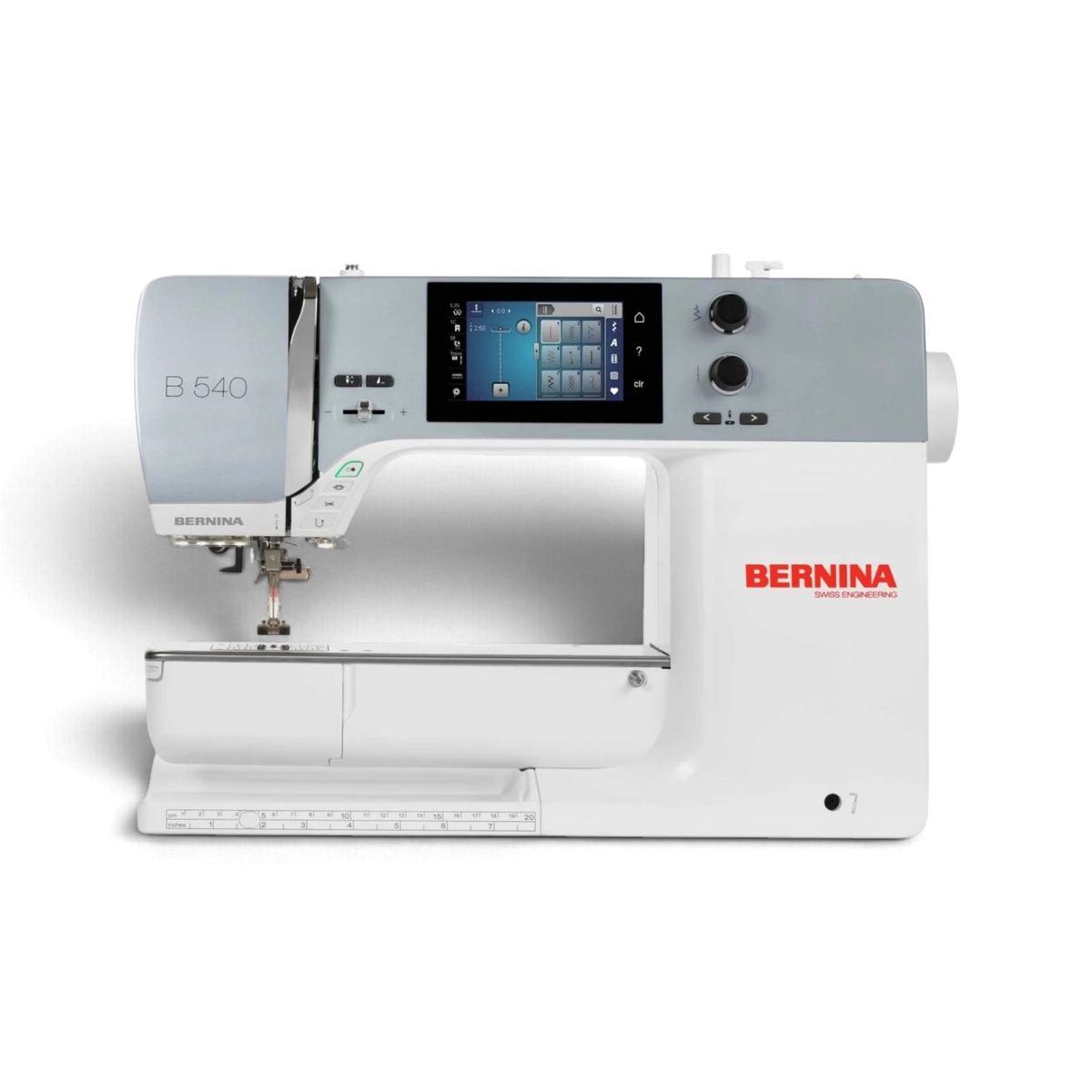

Bernina B540
Bernina B540
Couldn't load pickup availability
Not sure this is the right machine for you?
Take the Quiz →
Product Information
BERNINA
BERNINA
540
Bring BERNINA precision, high-speed performance, and bold 9mm stitch width to your studio with the BERNINA 540! Designed for garment makers, quilters, and embroidery enthusiasts, it pairs an 8.5" extended free arm with the BERNINA Hook system sewing up to 1,000 stitches per minute. A 4.3" color touchscreen with Sewing Consultant puts 1,048 stitch patterns at your fingertips, backed by Adaptive Thread Tension, an automatic thread cutter, Jumbo Bobbins, BSR functionality, and optional embroidery module support.
Maintains consistent, quiet, and precise 9mm stitch formation at rapid speeds up to 1,000 stitches per minute with high-capacity Jumbo Bobbins.
Automatically fine-tunes and maintains optimal thread tension for immaculate stitch quality on both sides of the fabric.
Generous 215 mm free-arm clearance handles large creations smoothly, controlled via an intuitive touchscreen with on-screen Sewing Consultant support.
Ensures the ideal presser foot pressure for any material thickness, supported by a single-button automatic thread cutter and needle lift.
Adaptive Thread Tension System
Adaptive Thread Tension System
Achieve optimal thread tension automatically for flawless stitch execution on both top and bottom fabric surfaces. The BERNINA Adaptive Thread Tension system continuously checks tension balance, allowing you to sew precisely without constant manual adjustments.

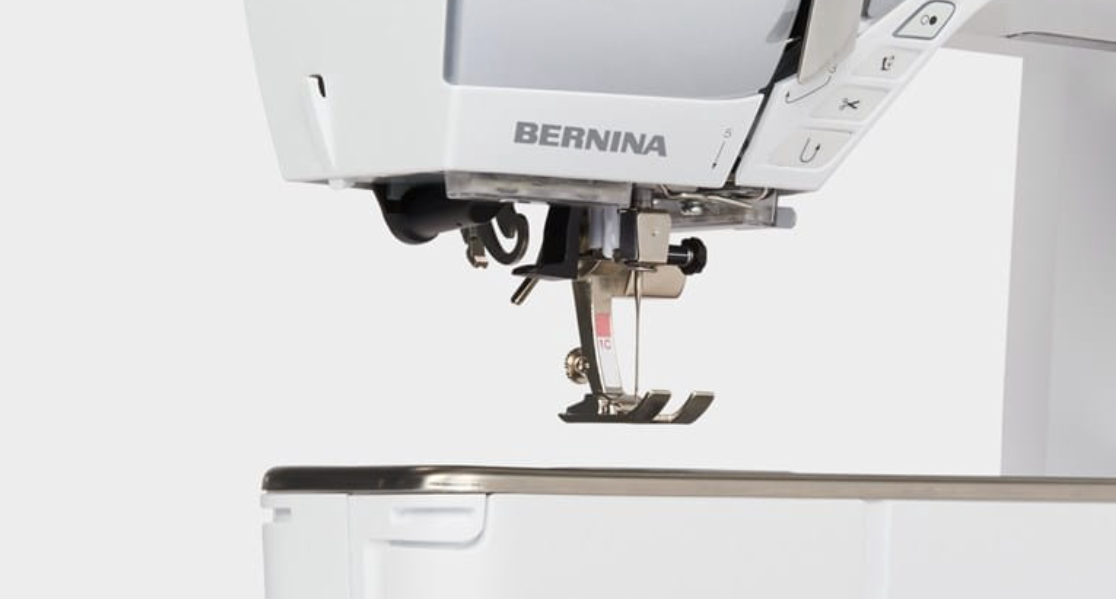

Extended 8.5" Free-Arm Workspace
Extended 8.5" Free-Arm Workspace
Handle bulky garments, large quilt sections, and home decor projects with complete comfort. Offering 8.5 inches (215 mm) of throat space to the right of the needle, the extended free-arm bed gives you plenty of room to realize big ideas.

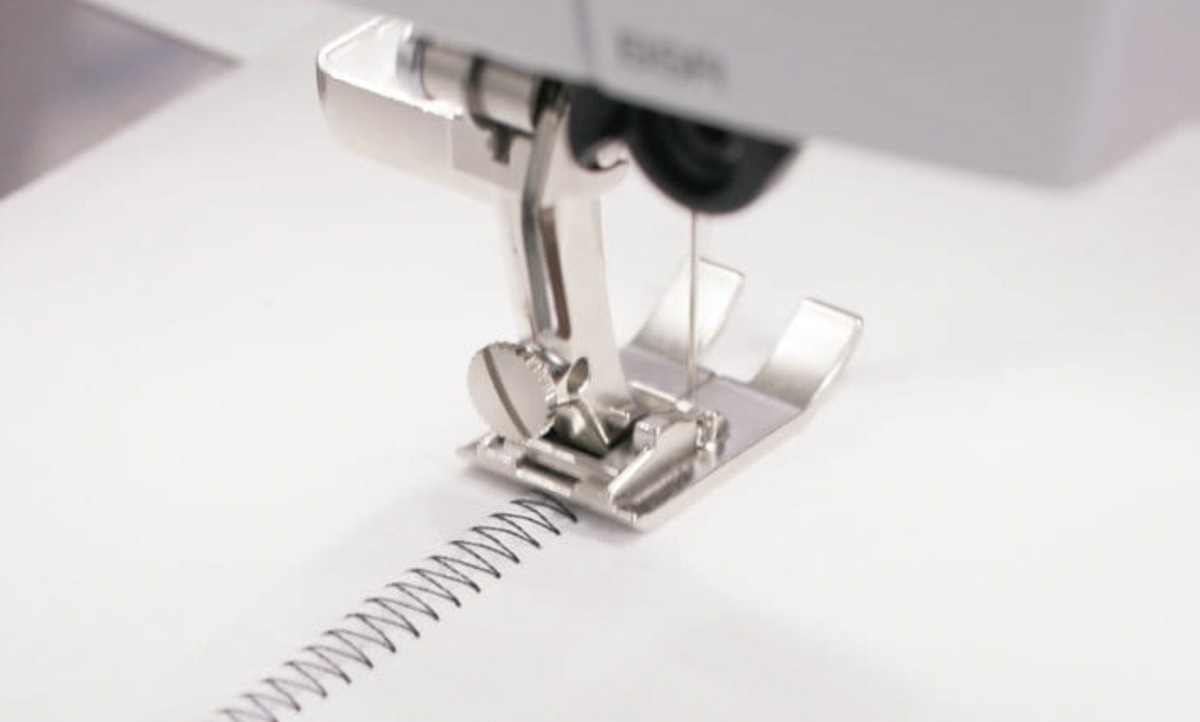

Adjustable Presser Foot Pressure System
Adjustable Presser Foot Pressure System
Sew any material with ease by adjusting presser foot pressure to match fabric weight. Increase downward pressure for thin, lightweight textiles or reduce pressure for thick, heavy materials to ensure perfect fabric feeding without shifting.

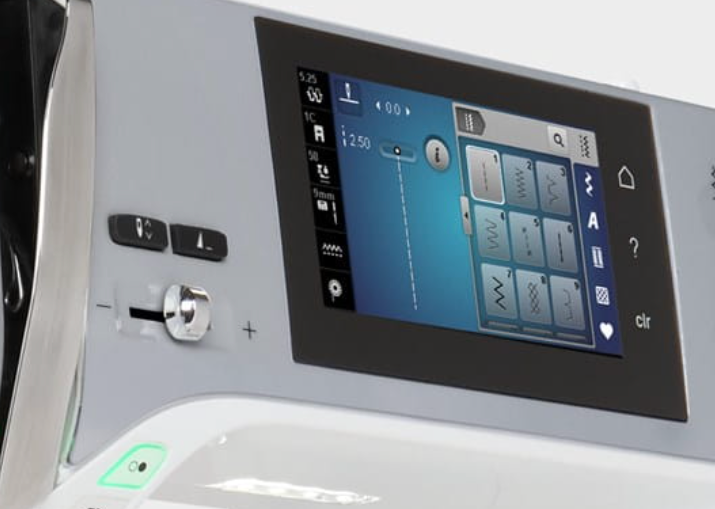

Modern 4.3" Full-Color Touchscreen & On-Screen Sewing Consultant
Modern 4.3" Full-Color Touchscreen & On-Screen Sewing Consultant
Navigate stitch options and machine settings cleanly using the bright 4.3" color touchscreen. Access the built-in Sewing Consultant for expert setting recommendations and quickly make fine modifications using the ergonomic multifunction knobs.

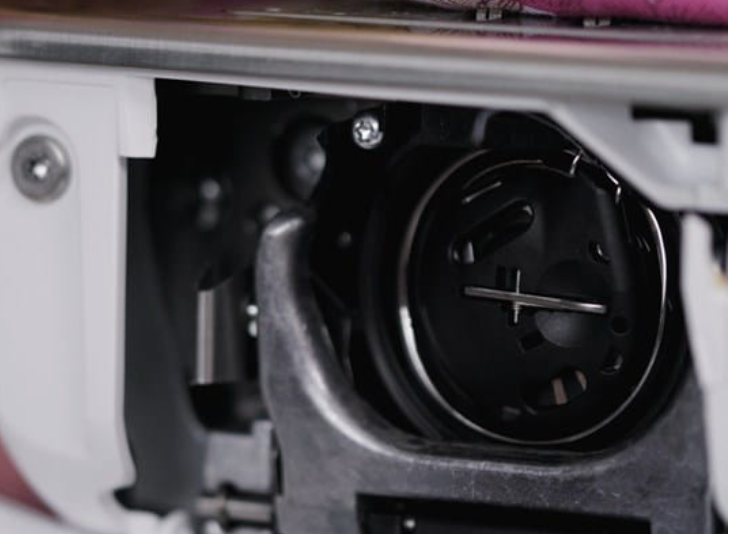

High-Precision BERNINA Hook & 9mm Stitch Width
High-Precision BERNINA Hook & 9mm Stitch Width
Experience quieter, faster, and longer-lasting stitching powered by the patented BERNINA Hook. Delivering bold 9mm maximum stitch width at up to 1,000 stitches per minute, the front-loading Jumbo Bobbin holds up to 70% more thread for uninterrupted sewing.

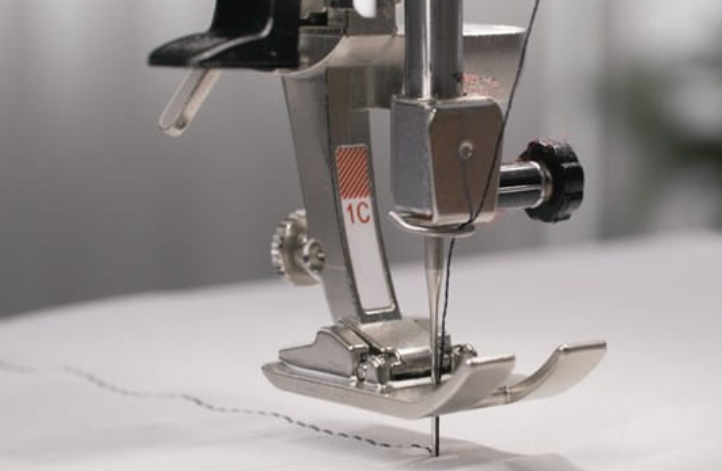

One-Touch Automatic Thread Cutter
One-Touch Automatic Thread Cutter
Streamline your workflow and save time with single-touch thread trimming. Pressing the automatic thread cutter button automatically trims your threads and lifts the needle afterwards so you can focus on your creativity.
Key Features
- 1,048 Total Built-In Stitch Patterns: 30 utility stitches, 300 decorative stitches, 43 quilting stitches, 31 cross-stitch patterns, 14 buttonholes/eyelets, and 5 sewing alphabets.
- High-Speed 1,000 SPM Motor & 9mm Stitch Width: Rapid stitching motor delivering bold 9mm maximum stitch width.
- 8.5" (215 mm) Extended Free-Arm Area: Generous workspace clearance to the right of the needle for handling large projects.
- 4.3" Color LCD Touchscreen: High-resolution touch interface with on-screen tutorial, setup program, and Sewing Consultant.
- 11 Micro-Stepping Needle Positions: Fine needle drop alignment with sewing capability in every needle position.
- Adaptive Thread Tension Control: Continuous automatic tension regulation for perfectly balanced stitch formation.
- Front-Loading Jumbo Bobbin System: Holds up to 70% more thread than standard bobbins, windable while sewing/embroidering.
- One-Touch Automatic Thread Cutter: Motorized cutter trims top and lower threads and lifts needle automatically.
- BERNINA Stitch Regulator (BSR) Functionality: Ready for BSR foot integration for regulated free-motion quilting.
- Ergonomic Multifunction Knobs: Stepless twin rotary dial controllers for quick parameter fine-tuning.
- BERNINA Free Hand System (FHS): Ergonomic knee lifter capability to raise/lower presser foot and feed dog hands-free.
- Integrated USB Interface & PC Connection: Import/export custom stitch combinations and software updates via USB.
- Adjustable Presser Foot Pressure & Slide Speed Control: Fine-tune downward presser foot pressure alongside a slide speed regulator.
Included Accessories
- Free-Arm Bed Extension & Ergonomic Drive Hardware: BERNINA Slide-On Freearm Extension Table, BERNINA Free Hand System (FHS) Knee Lever, Programmable Foot Control Pedal, Power Cable.
- Spool & Thread Support Hardware: 5 x Jumbo Bobbins (1 in bobbin case + 4 in accessory box), 3 x Spool Discs, 2 x Foam Pads.
- Maintenance Tools, Protection & Storage: Height Compensation Tool, Magnetic Accessory Box, Touch Pen Stylus, Seam Ripper, Selection of Needles, Red Screwdriver, Cleaning Brush, Soft Cover with Pocket.
Included Presser Feet
- Reverse Pattern Foot #1/1C
- Overlock Foot #2/2A
- Buttonhole Foot with Slide #3A
- Zipper Foot #4/4D
- Open Embroidery Foot #20/20D
BERNINA
BERNINA 540 — Full Details
| General Specifications | |
| Machine Type | High-Performance Computerized Sewing & Embroidery Machine |
| Workspace Dimensions | 8.5" (215 mm) Sewing Space to Right of Needle |
| Maximum Operational Speed | 1,000 Stitches Per Minute (SPM) Sewing & Embroidery Speed |
| Display & Navigation | 4.3" Color LCD Touchscreen with Multifunction Knobs |
| Internal Interface | USB Interface for PC Connection & Custom Pattern Memory |
| Hook System & Bobbin | BERNINA Hook System with Front-Loading Jumbo Bobbin |
| Lighting System | 12-LED Workspace Illumination Array |
| Sewing & Embroidery Specifications | |
| Built-In Sewing Library | 1,048 Total Stitches (30 Utility, 300 Decorative, 43 Quilting, 14 Buttonholes, 5 Alphabets) |
| Stitch Parameters | 9.0 mm Maximum Stitch Width / 6.0 mm Maximum Stitch Length / 11 Needle Positions |
| Embroidery Specifications (Optional Module M with SDT) | 400 x 150 mm (15.7" x 5.9") Max Field, 50 Designs, 4 Alphabets |
| Supported Embroidery Formats | EXP, DST, PES, PEC, JEF, SEW, PCS, XXX |
| Fabric Feeding & Tension | Adaptive Thread Tension Control & Adjustable Presser Foot Pressure |
| Automation & Controls | Automatic Thread Cutter, Semi-Automatic Needle Threader, Start/Stop Button, Slide Speed Control |
| Hands-Free & BSR Control | BERNINA Free Hand System (FHS) Knee Lever & BSR Functionality Compatible |
Bernina Warranty Coverage
Bernina is the gold standard in home sewing machines. Their warranty coverage is built to match a machine designed to last generations.
- Mechanical Parts — 20-year limited warranty
- Printed Circuit Boards — 5-year warranty
- Electrical Parts — 2-year warranty
Bernina’s warranty covers defects in materials and workmanship for the original purchaser. Mechanical parts are covered for 20 years, circuit boards for 5 years, and electrical parts for 2 years. Important: warranty coverage is limited to the cost of the affected part only — labor charges are not included. All shipping costs to and from the dealer or designated service point are the purchaser’s responsibility. The warranty must be registered via the Bernina Customer Portal within 30 days of purchase, or countersigned by an authorized Bernina dealer within 90 days — otherwise coverage is void. Original proof of purchase required for all service.
Your Bernina warranty is valid at any authorized Bernina dealer — return your machine to an authorized location for all repairs and replacements.
